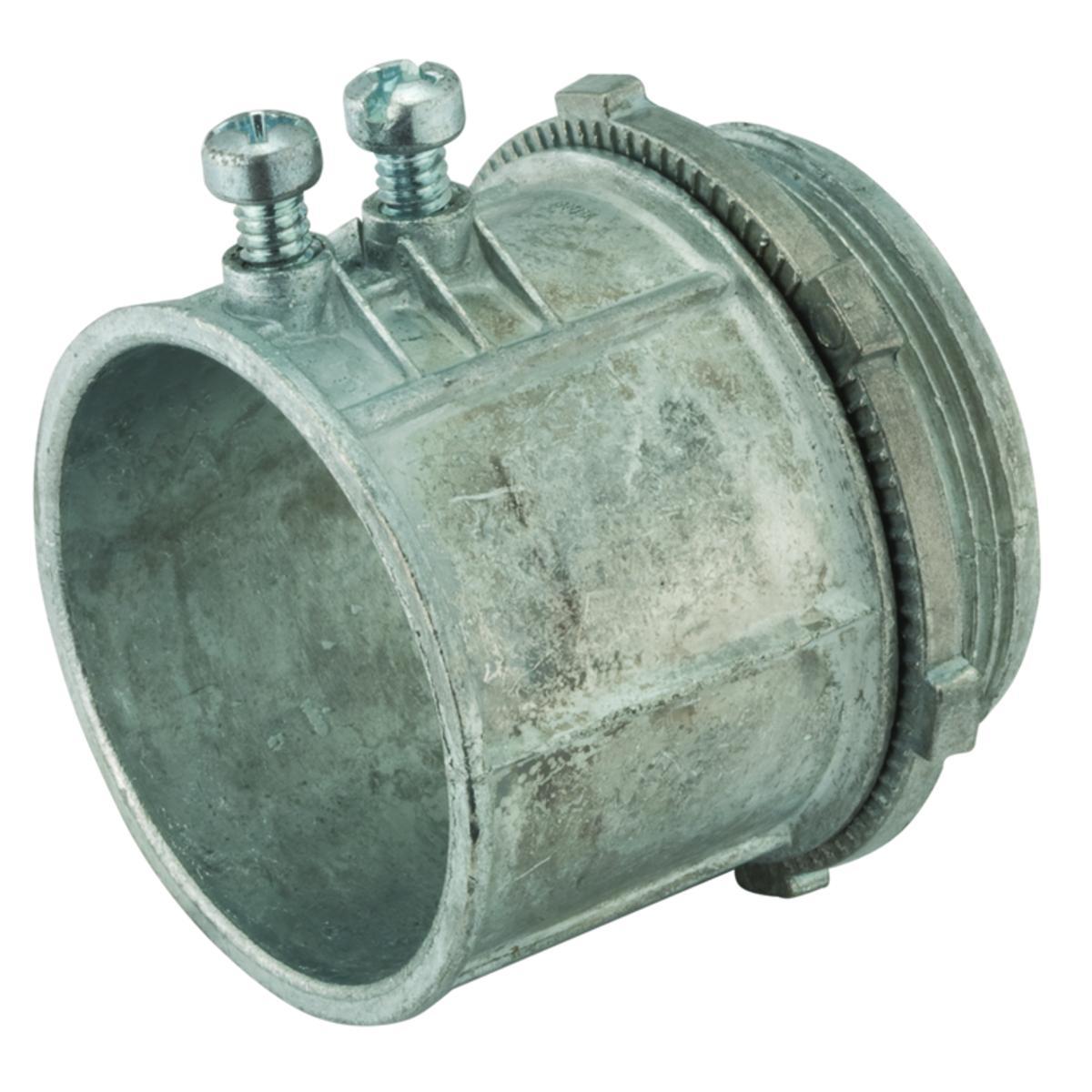

RACO® 2646 Non-Insulated Set Screw Conduit Connector, 4 in Trade, 4-5/32 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
RACO® 2646 Non-Insulated Set Screw Conduit Connector, 4 in Trade, 4-5/32 in Cable Openings, For Use With EMT Conduit, Die Cast Zinc
-
BrandRACO®
-
UPC050169026465
-
Manufacturer Part Number2646
-
CountryUSA
-
Cable Openings4-5/32 in
-
MaterialDie Cast Zinc
-
ColorSilver
-
Mounting TypeThreaded
-
Diameter4.578 in ID x 4.9375 in OD
-
Dimensions3.7656 in L
-
Trade Size4 in
-
TypeNon-Insulated Set Screw
-
Suitable For Use WithEMT Conduit
- Rugged metallic construction ensures mechanical protection
- Noninsulated
- Rugged metallic construction provides mechanical protection for the raceway
- 2-1/2 in to 4 in trade sizes are UL listed for use on Rigid/IMC conduit, allowing for installation flexibility
- 4.109 in ID throat
- 1-1/8 in thread length
- Noninsulated
-
Alternative Part Number8697523
-
UNSPSC39131707
-
IDEA Index ID8697523
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E195970|CSA Certified
-
Warranty1 Year
-
SDS
-
Catalog
-
Specification Sheet
