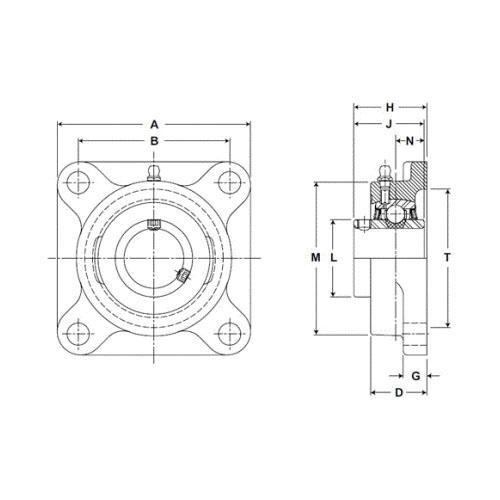

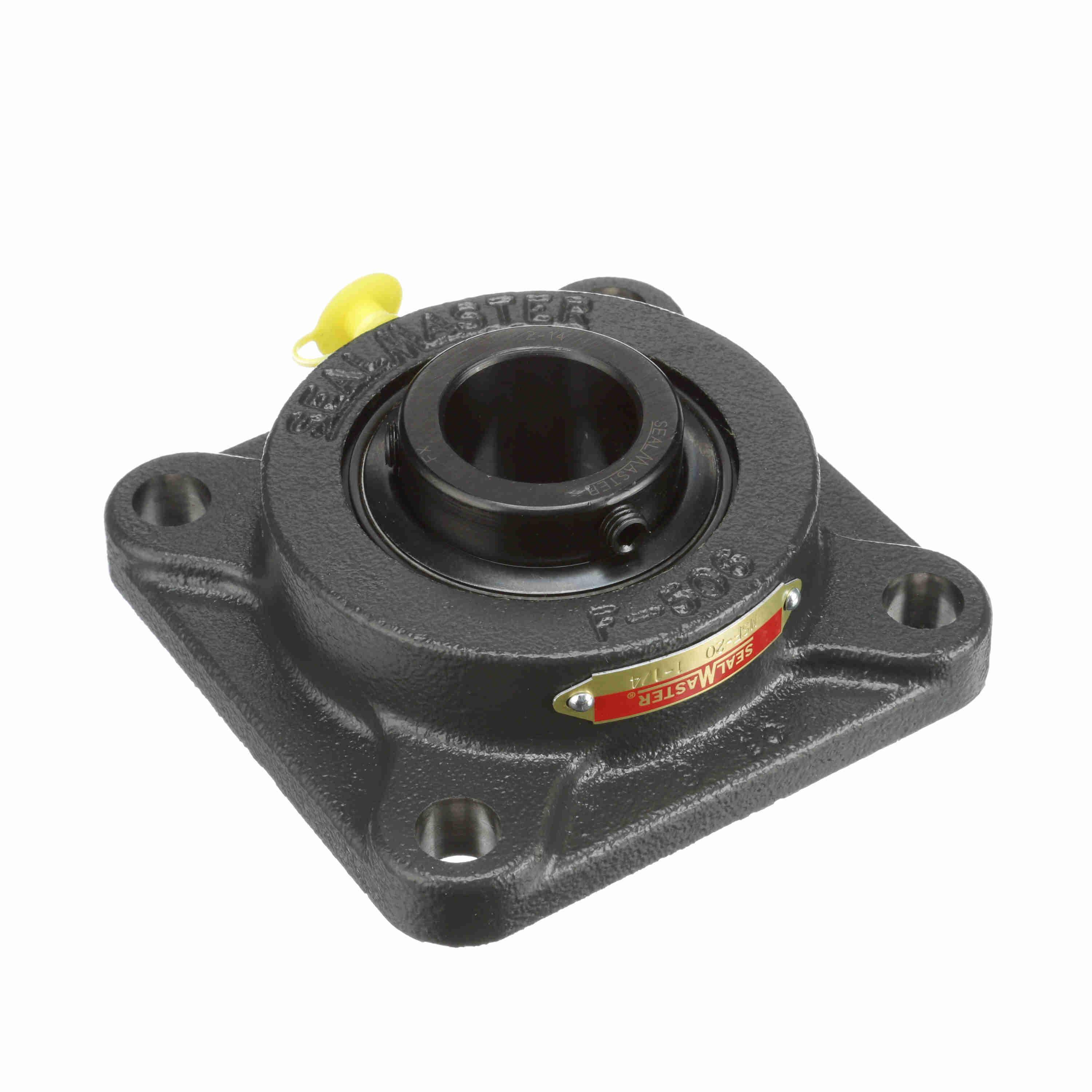

Sealmaster® 701969 MSF Non-Expansion Medium Duty Round/Straight Bore Ball Bearing Unit With Flinger, 4 in Dia Bore, 8-5/16 in L Bolt Center-to-Center, 4-Bolt Flange Mount, 10-9/16 in OAL/Dia
Sealmaster® gold mounted ball bearings feature wide outer race insert bearing with a land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system. This provides a direct path for lubrication into the bearing. It also helps prevent outer ring rotation. Available with either setscrew or Skwezloc®concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex®HP grease loss and friction.
-
BrandSealmaster®
-
UPC662461014752
-
Manufacturer Part Number701969
-
CountryUSA
-
Load Capacity29905 lb Dynamic/23553 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
Flange Mounting Type4-Bolt
-
Maximum Speed1700 rpm
-
TypeNon-Expansion Medium Duty Round/Straight Bore
-
Seal MaterialFelt
-
SeriesMSF
-
Bearing Material52100 Steel
-
Bolt Center-to-Center Length8-5/16 in
-
Bore Diameter4 in
-
Overall Depth5 in
-
Overall Height10-9/16 in
-
Overall Length/Diameter10-9/16 in
- Skwezloc is a concentric collar clamp design that results in near perfect concentricity of the shaft to the bearing bore
- All bearings are assembled with a controlled housing fit between the bearing outer ring and housing bore
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- Wide black oxided outer ring with direct lubrication inlet hole
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberMSF-64
-
UNSPSC31171501
-
Package DescriptionEACH
-
Standards/ApprovalsABMA Standard
-
Catalog
-
Instruction/Installation Manual
