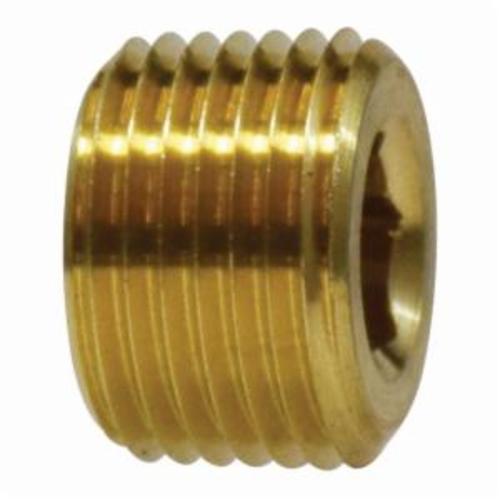

HCI Preferred Supplier 28092 Countersunk Hex Head Plug, 1/16 in Nominal, NPTF End Style, Brass
HCI Preferred Supplier 28092 Countersunk Hex Head Plug, 1/16 in Nominal, NPTF End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number28092
-
CountryUSA
-
Temperature Rating-65 to 250 deg F
-
MaterialBrass
-
Fitting/Connector TypePlug
-
Pressure Rating1200 psi
-
TypeCountersunk
-
Nominal Size1/16 in
-
Length0.3 in
-
End StyleNPTF
- Fair resistance vibration
- Used with brass, bronze, copper, steel, aluminum and iron pipe
- /- 0.02 tolerance on all dimensions
- 1/16-27 thread size
- 3/4 in taper thread
- 0.12 in socket size
-
UNSPSC27121700
-
Package Description1/PK
-
Standards/ApprovalsASA Certified|ASME Specified|SAE Approved
-
Catalog
-
Full Engineering Drawing
