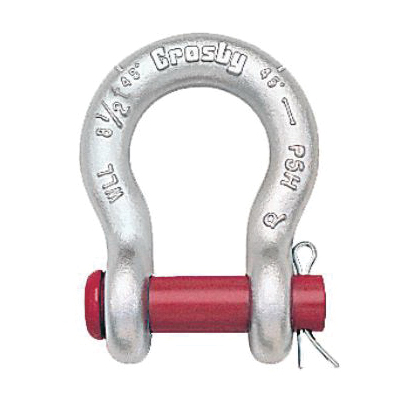

Crosby® 1018151 213-7/8 Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in Dia Round Pin, Hot Dipped Galvanized
Crosby® 1018151 Anchor Shackle, 6.5 ton Load, 7/8 in, 1 in Dia Round Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1018151
-
CountryUSA
-
Load Capacity6.5 ton
-
FinishHot Dipped Galvanized
-
SeriesG-213
-
Inner Length3-5/16 in
-
Inner Width2.28 in
-
Size7/8 in
-
Opening Size1-7/16 in
-
Body MaterialCarbon Steel
-
Overall Length5.83 in
-
Overall Width3.81 in
-
Eye Outer Size2.09 in
-
Pin Diameter1 in
-
Pin MaterialAlloy
-
Pin TypeRound
- Working load limit permanently shown on every shackle
- Shackles are quenched and tempered and can meet DNV impact requirements of 42 J at -20 deg C
- Look for the Red Pin® the mark of genuine Crosby® quality
-
UNSPSC24101641
-
Standards/ApprovalsABS/DNV/Lloyds/CE Certified|Federal Spec RR-C-271F|Type IVA|Grade A|Class 1
-
