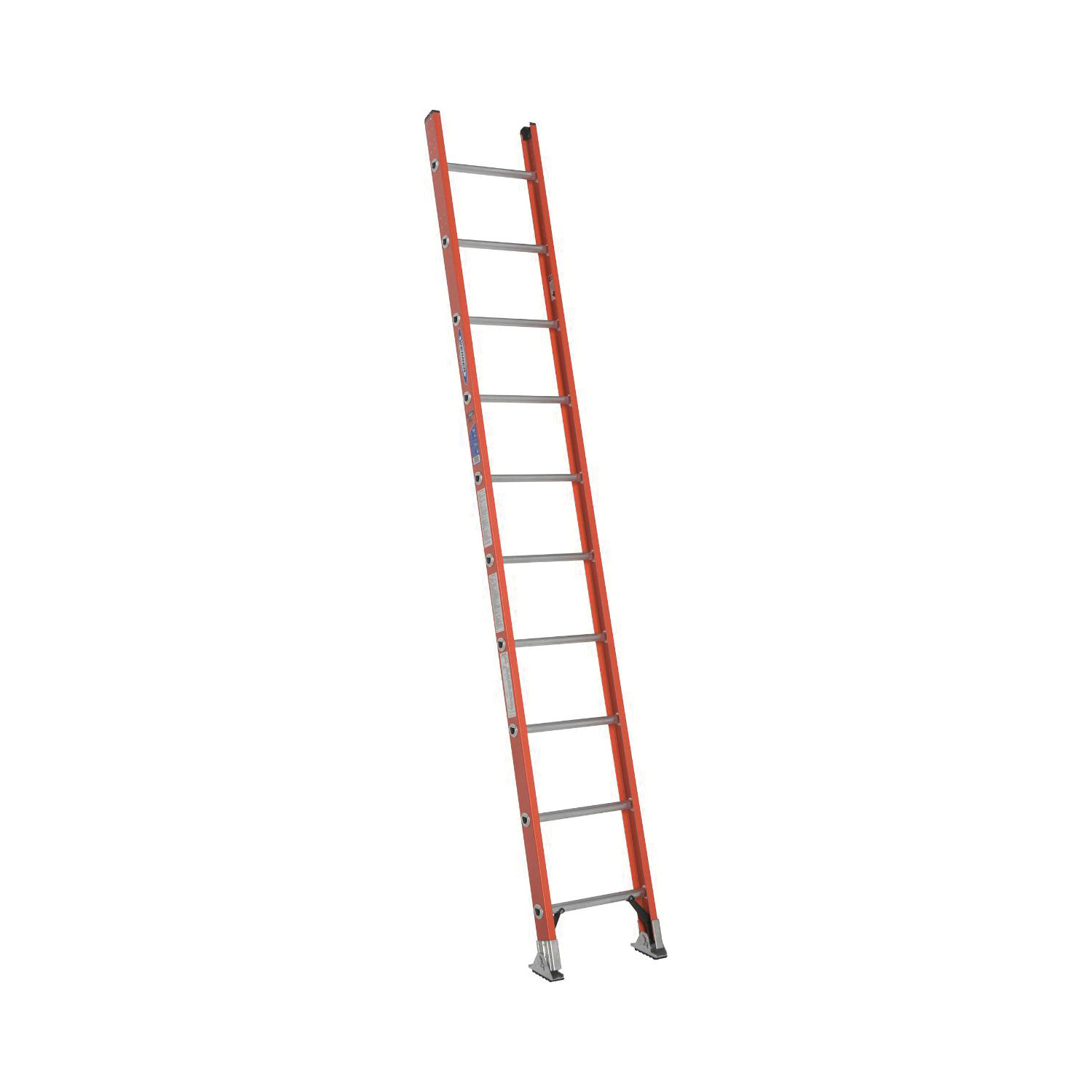

WERNER® D6210-1 D6200-1 Type IA Duty Single Section Straight Ladder, 8 ft H x 19 in W, 300 lb Load, 10 ft Top Step, Fiberglass

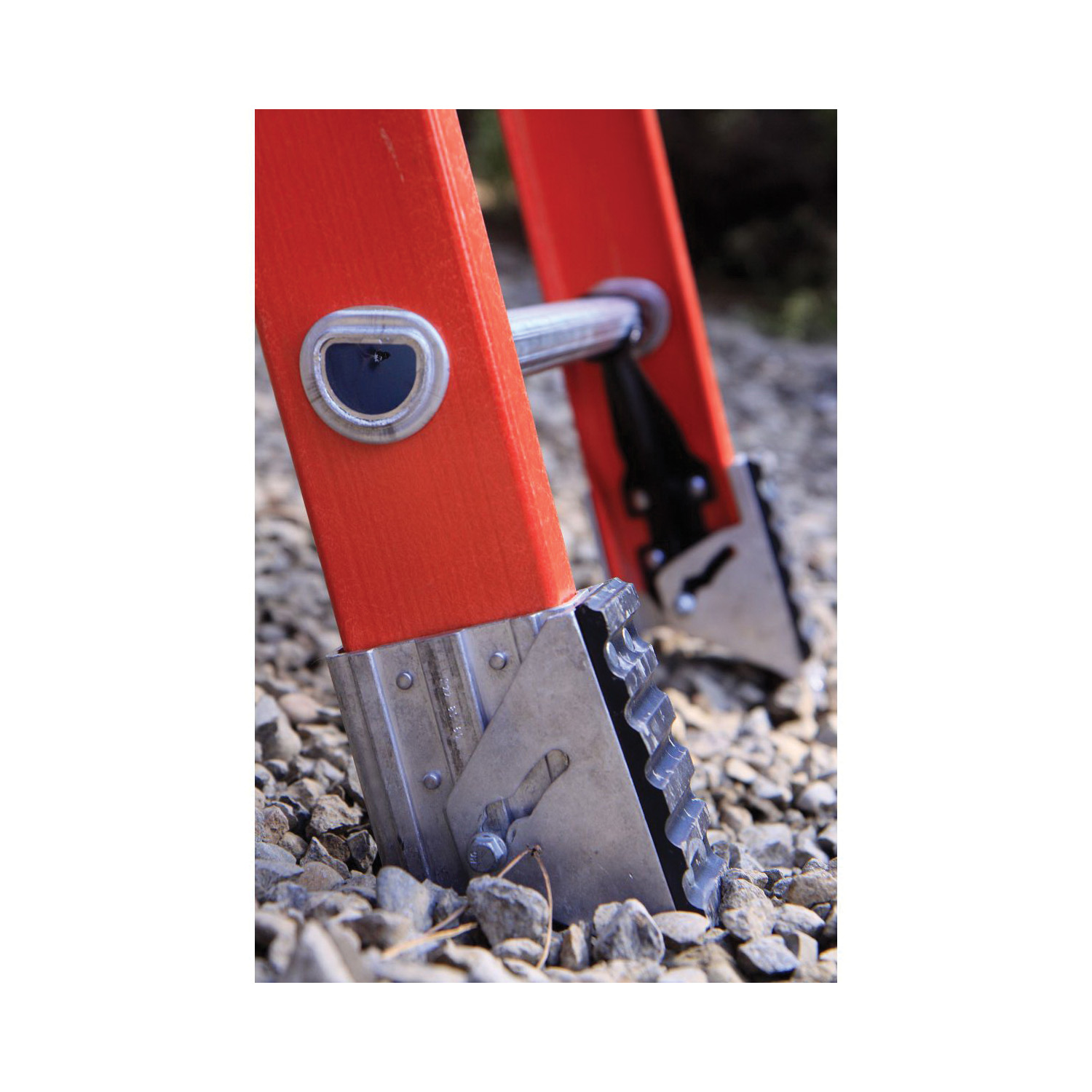

The D6210-1 ladders are one section straight ladders made with non-conductive fiberglass rails. Easy to transport and maneuver, these ladders bear a duty rating of 300 lb making them durable and long lasting. The TRACTION-TRED® D-rungs are slip resistant, and the durable rail shields and shoe brackets help to protect the rails from damage. The dual action feet pivot for use on hard or penetrable surfaces.
-
BrandWERNER®
-
UPC051751032208
-
Manufacturer Part NumberD6210-1
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Top Step Height10 ft
-
Top to Bottom Rung9 ft
-
TypeType IA Duty Single Section
-
Rung Diameter1-1/2 in
-
Rung Spacing12 in
-
Rung TypeD-Rung
-
Rung Width1-5/8 in
-
SeriesD6200-1
-
Number of Rungs10
-
Overall Height8 ft
-
Overall Width19 in

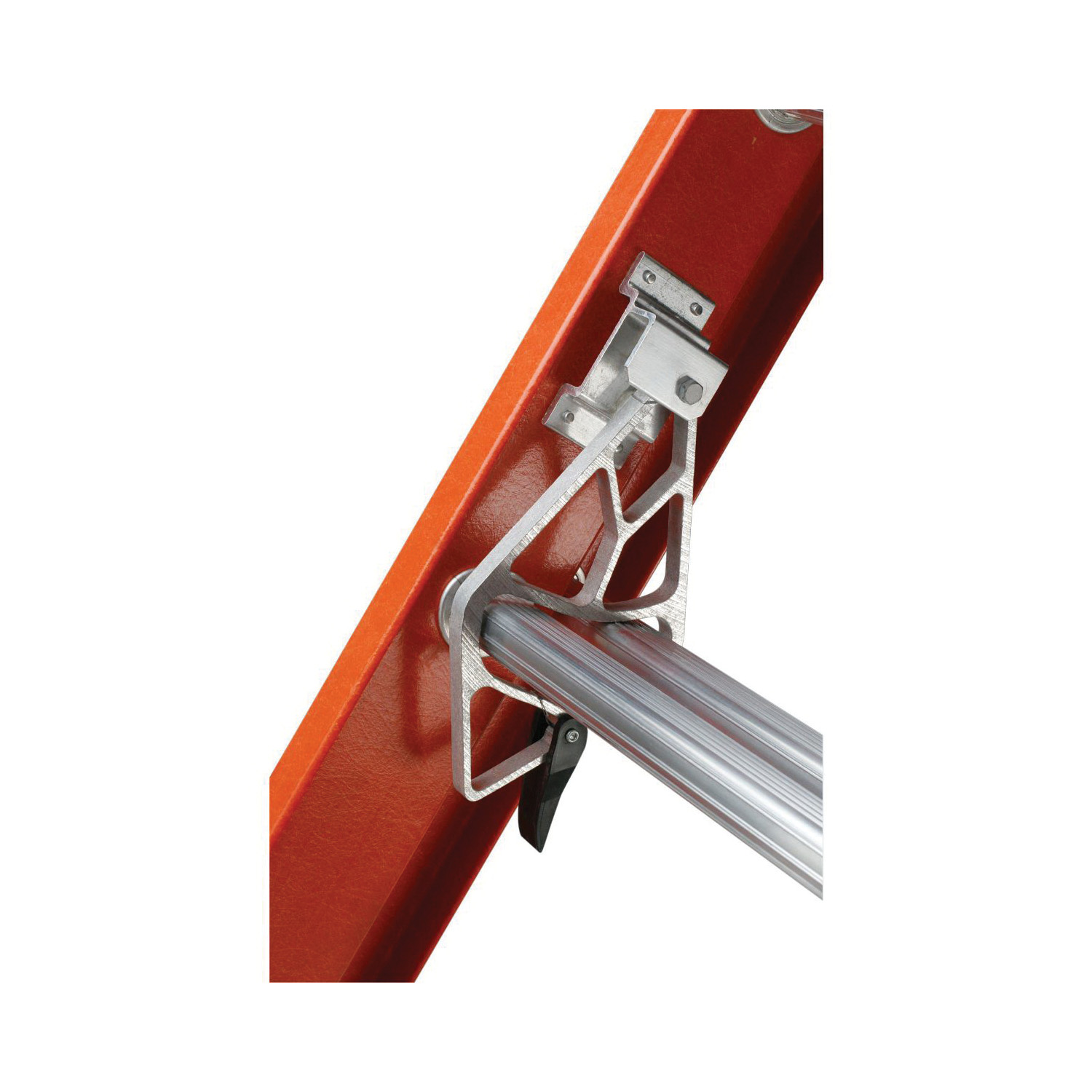

- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-5/8 in slip resistant TRACTION-TRED® D-rungs
- Pre-pierced holes for easy field installation of accessories

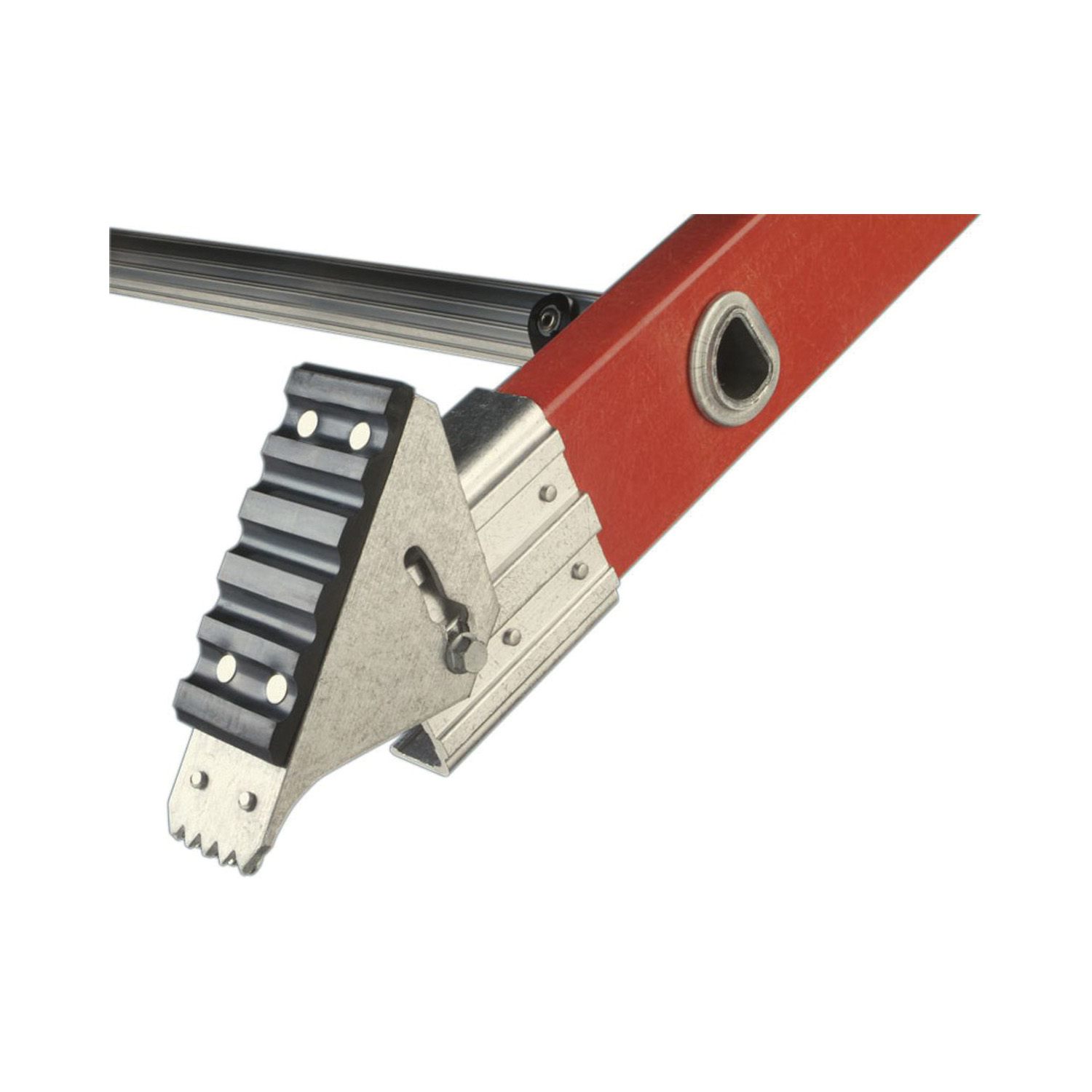

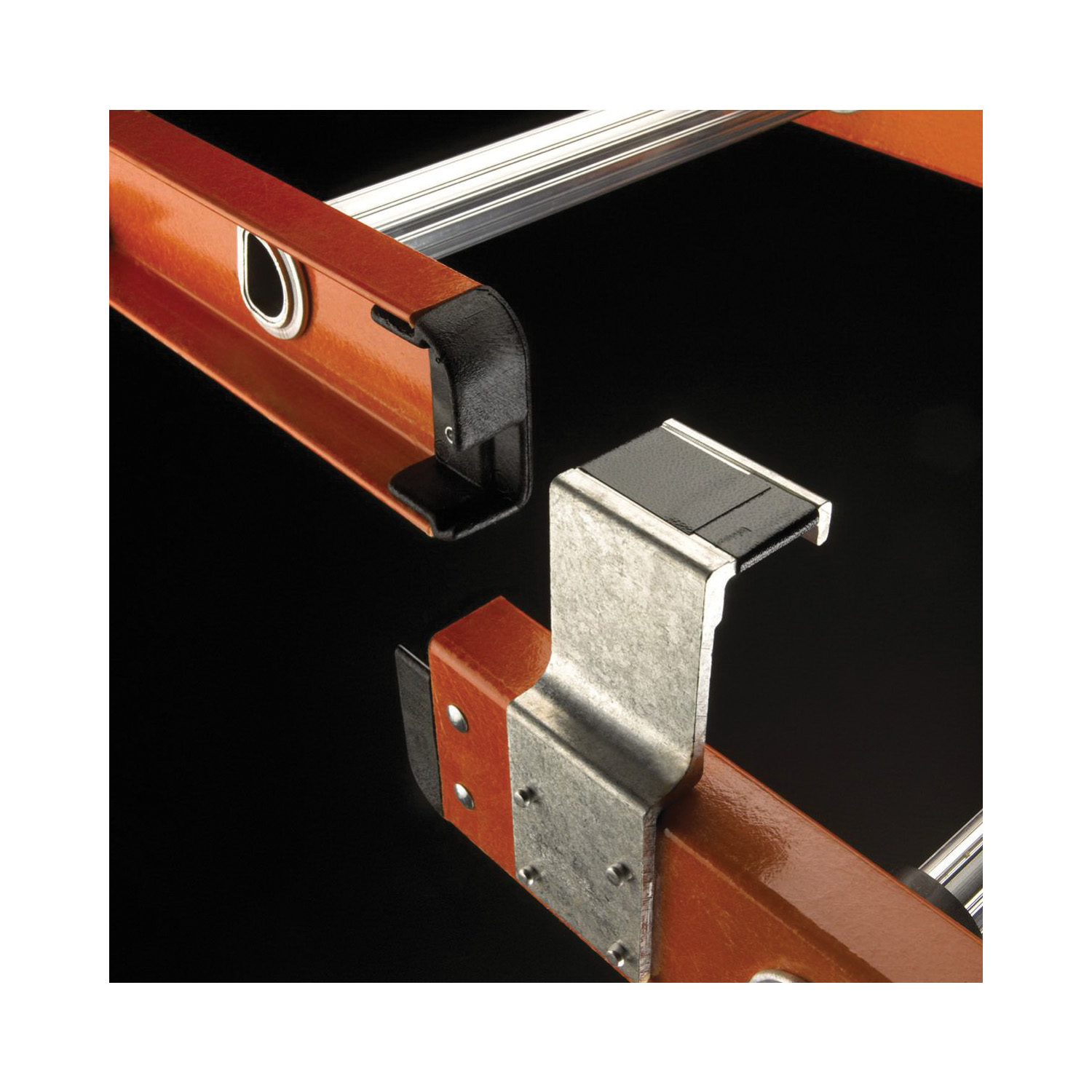

- Combination rail shield bracket and shoe with SHU-LOK® and slip resistant pad
- Molded rung braces on bottom step for increased durability
- Mar resistant molded end caps
- 1 section
- 13 ft H reach
- 10 ft L open extended
- 10 ft L closed
- 3-5/16 in rails
- 1-3/16 in flange
- 16 in W fly
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
