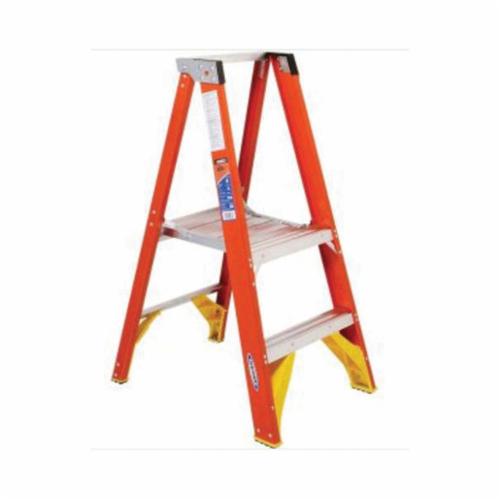

WERNER 2' 300# 1-A PLATFORM F/G LADDERS WER P-6202
The P6202 Fiberglass 2 ft Platform Ladder has a duty rating of 300 pounds and features a safety guard rail to encourage proper use. Back-up plates reinforce all top connectors and the large platform provides a secure and comfortable work area. The slip-resistant TRACTION-TRED® steps are double riveted and knee braced. A full set of rear horizontals are spaced one foot apart. The Edge® molded brace and foot pad combination provides bracing strength and increased protection from damage. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751044874
-
Manufacturer Part NumberP6202
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Tread3 in W
-
TypeType IA
-
ANSI CodeA14.5
-
SeriesP6200
-
Base Spread29-3/4 in
-
Number of Steps2
-
Ladder Height2 ft
-
Bottom Width23-3/8 in
- Safety guard rail encourages proper ladder use
- Back-up plates reinforce all top connectors
- Large platform provides secure and comfortable work area

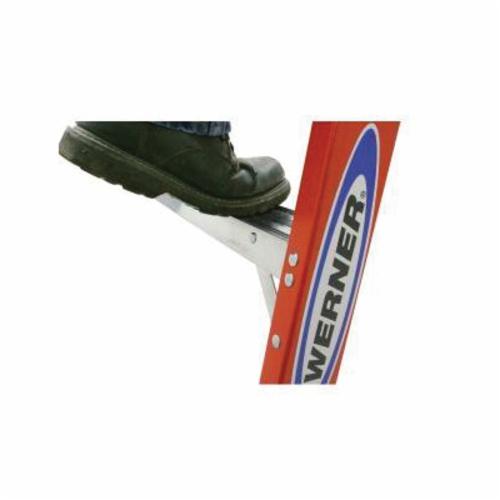

- Slip-resistant TRACTION-TRED® steps are double riveted and knee braced
- Full set of rear horizontals spaced one per foot
- Edge molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage
- Shoe pads riveted to the edge structure
- Every rivet backed up by metal part or washer to protect rails
- Internal aluminum spreaders on 8' and 10' models
- Energy diffusing geometry
- 4 ft rail length
- Rail 3-1/8 in front wide x 1-7/8 in rear wide
- 1-3/16 in front wide x 1-3/16 in rear back wide flange
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 99298936 |
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Standard
-
Owners/User Manual
