WERNER 8' 375# 1-AA P/FORM F/G STEPLADDER WER P-7408

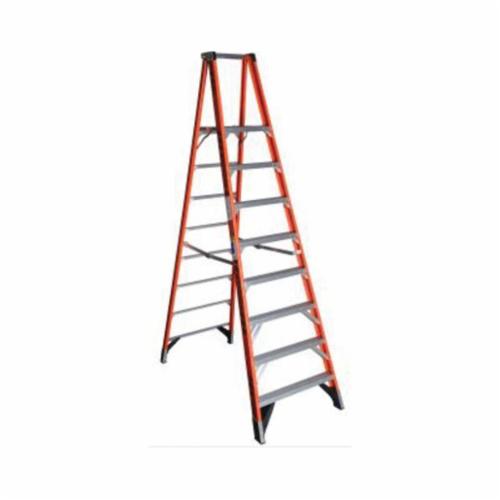

The P7408 Fiberglass 8 ft Platform Ladder has a rating of 375 pounds and maintains a full set of horizontals on the rear sections. The large work platform provides a secure and comfortable work area while the Edge® bracing system and external rails shields add to the durability of the product. The safety guard rail at the top of the ladder encourages proper ladder use. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751011432
-
Manufacturer Part NumberP7408
-
CountryUSA
-
Load Capacity375 lb
-
MaterialFiberglass
-
Tread3 in W
-
TypeType IAA
-
ANSI CodeA14.5
-
SeriesP7400
-
Base Spread66-5/8 in
-
Number of Steps8
-
Ladder Height8 ft
-
Bottom Width34 in
- Safety guard rail encourages proper ladder use
- Thick side plates
- Shoulder bolt and lock nut on top hinge
- 4 solid aluminum rivets attach top to each front rail
- Back-up plates reinforce all top connectors

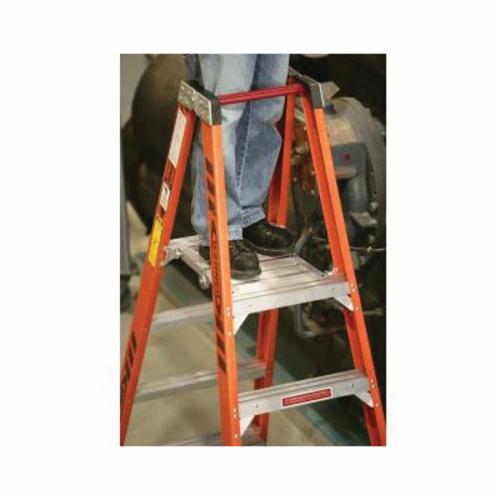

- Large platform provides secure and comfortable work area
- Full set of rear horizontals spaced one per foot
- Slip-resistant TRACTION-TRED® extra wide steps are knee braced and double riveted
- Glas mark violator stripes on rails allow ladder to be more visible
- The edge bracing system helps to decrease damage to rail
- Aluminum external rail shield helps protect against abrasion damage
- Shoe pads riveted to the edge structure
- Every rivet backed up by metal part or washer to protect rails
- Internal aluminum spreaders on 8 ft and 10 ft models
- Energy diffusing geometry
- 10 ft rail length
- 3-1/8 in front wide x 1-7/8 in rear wide rail
- 1-3/16 in front wide x 1-3/16 in rear back wide flange
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2113510 |
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Standard
-
Owners/User Manual
