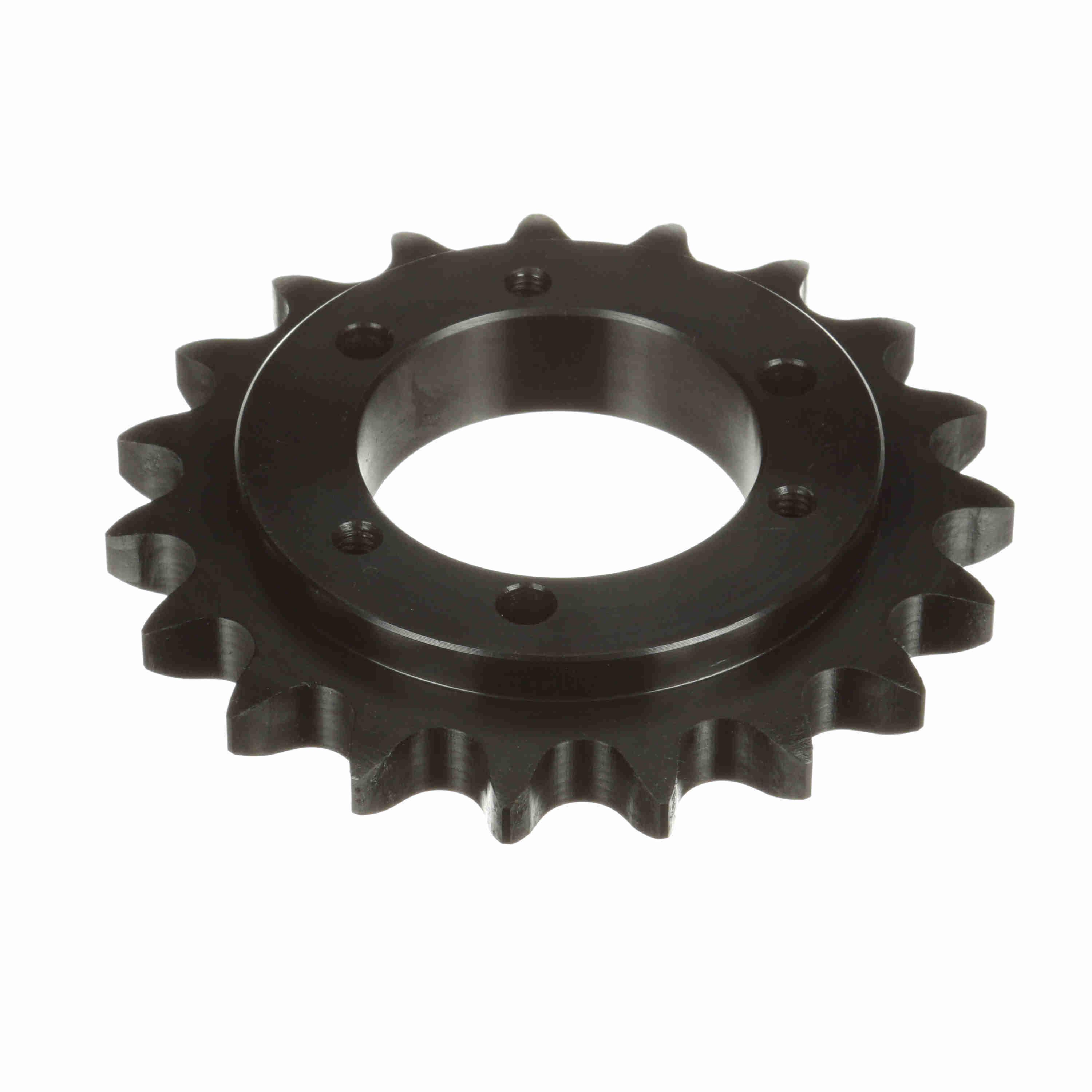

Browning® 3333630 Single Strand Roller Chain Sprocket With Hardened Teeth, 1/2 in Dia Bore, 4.945 in OD, #60 Chain, 19 Teeth, 3/4 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289258277
-
Manufacturer Part Number3333630
-
CountryUSA
-
Bushing TypeType QD®-1
-
Pitch3/4 in
-
Pitch Diameter4.557 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand
-
Hub Diameter3.14 in
-
Number of Teeth19
-
Outside Diameter4.945 in
-
Length Through Bore1.33 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Reverse mounting possible
- For use with 3/4 in pitch ANSI chain
-
Alternative Part NumberH60SDS19
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
