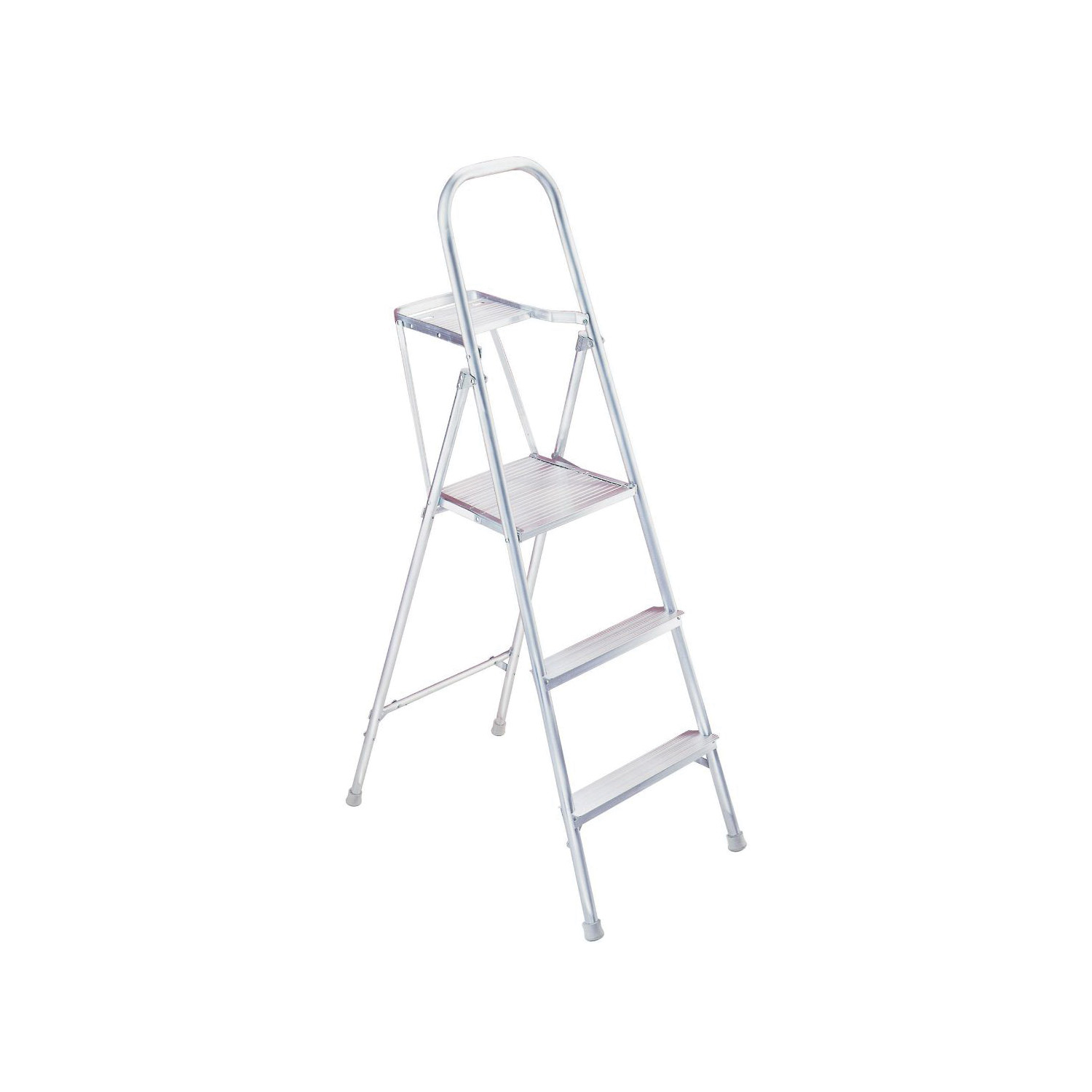

WERNER 5' 200# TY-3 PLAT ALUM LADDER WER 265
The 265 3 step type III aluminum platform ladder has a duty rating of 200 pounds and comfortable, tubular rails. The SPILL-PROOF® pail holder with rag rail is ideal for painting projects. The pail shelf also has convenient tool holders and folds automatically with the platform. Folds to 3-1/2 in for compact, convenient storage. The large, slip resistant platform provides a comfortable work area.
-
BrandWERNER®
-
UPC051751010077
-
Manufacturer Part Number265
-
CountryUSA
-
Load Capacity200 lb
-
Platform Depth14-1/2 in
-
Platform Height33-1/2 in W
-
Platform Width14-1/2 in
-
MaterialAluminum
-
TypeType III
-
Series260
-
Base Spread33-1/4 in
-
Number of Steps3
-
Ladder Height9 ft
-
Step Depth3 in
-
Bottom Width21-1/2 in
- Comfortable tubular rails
- SPILL-PROOF® pail holder with rag rail and convenient tool holders
- Folds automatically with platform
- Large comfortable slip resistant platform
- Mar resistant feet
- Folds to 3-1/2 in for compact, convenient storage
- Silver color
- 33-1/2 in H to platform
- Features tray and pail shelf
- 9 ft H reach
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.2 (2007)
