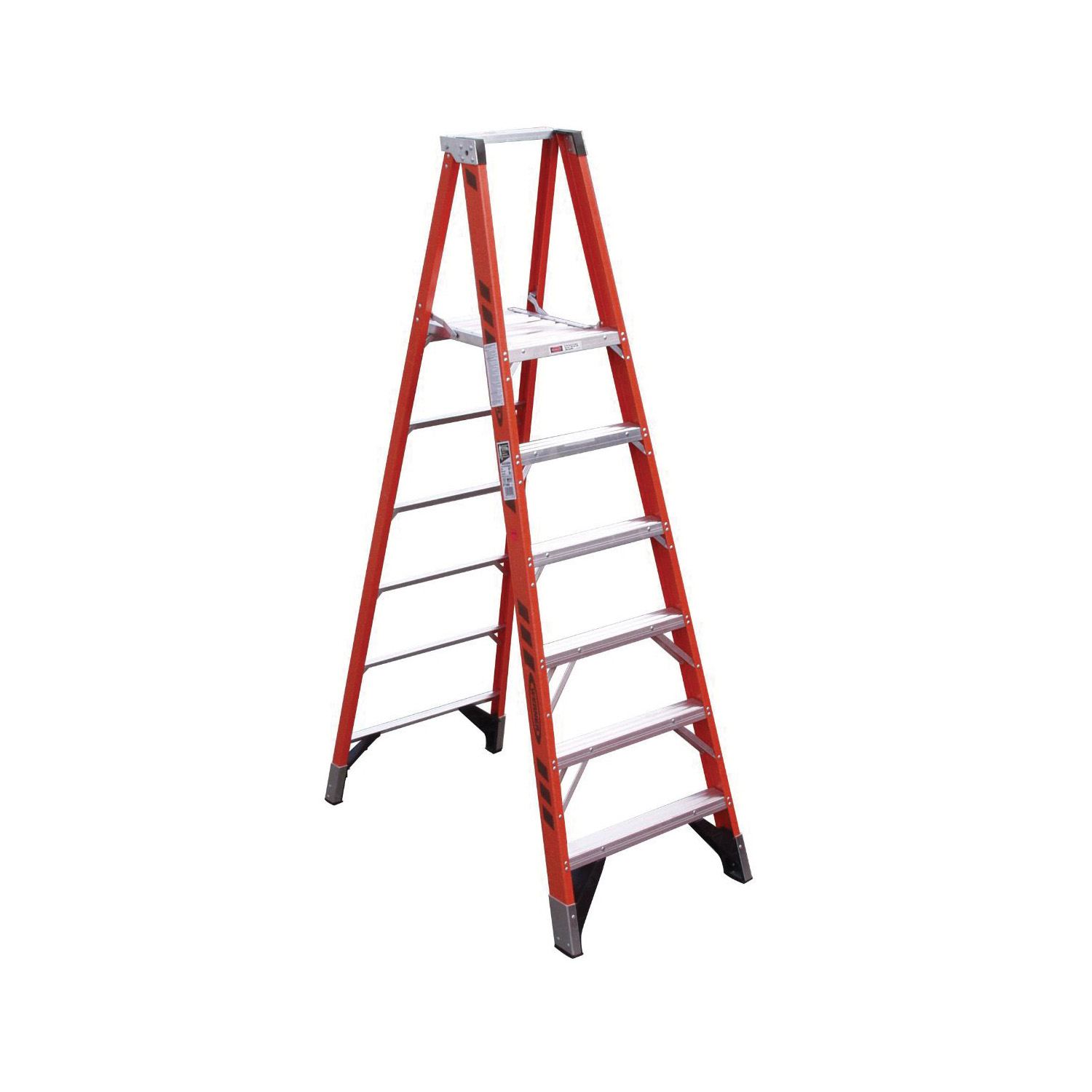

WERNER 6' 375# 1-AA P/FORM F/G STEPLADDER WER P-7406
The P7406 fiberglass 6 ft platform ladder has a rating of 375 pounds and maintains a full set of horizontals on the rear sections. The large work platform provides a secure and comfortable work area while the EDGE® bracing system and external rails shields add to the durability of the product. The safety guard rail at the top of the ladder encourages proper ladder use. Fiberglass rails are non-conductive for working near electricity.
-
BrandWERNER®
-
UPC051751011425
-
Manufacturer Part NumberP7406
-
CountryUSA
-
Load Capacity375 lb
-
Platform Depth14-5/8 in
-
Platform Width14-5/8 in
-
MaterialAluminum External Rail Shield/Fiberglass
-
TypeType IAA
-
SeriesP7400
-
Base Spread54-3/8 in
-
Ladder Height6 ft
-
Step Depth3 in
-
Bottom Width30-1/2 in
- Safety guard rail encourages proper ladder use
- Back up plates reinforce all top connectors

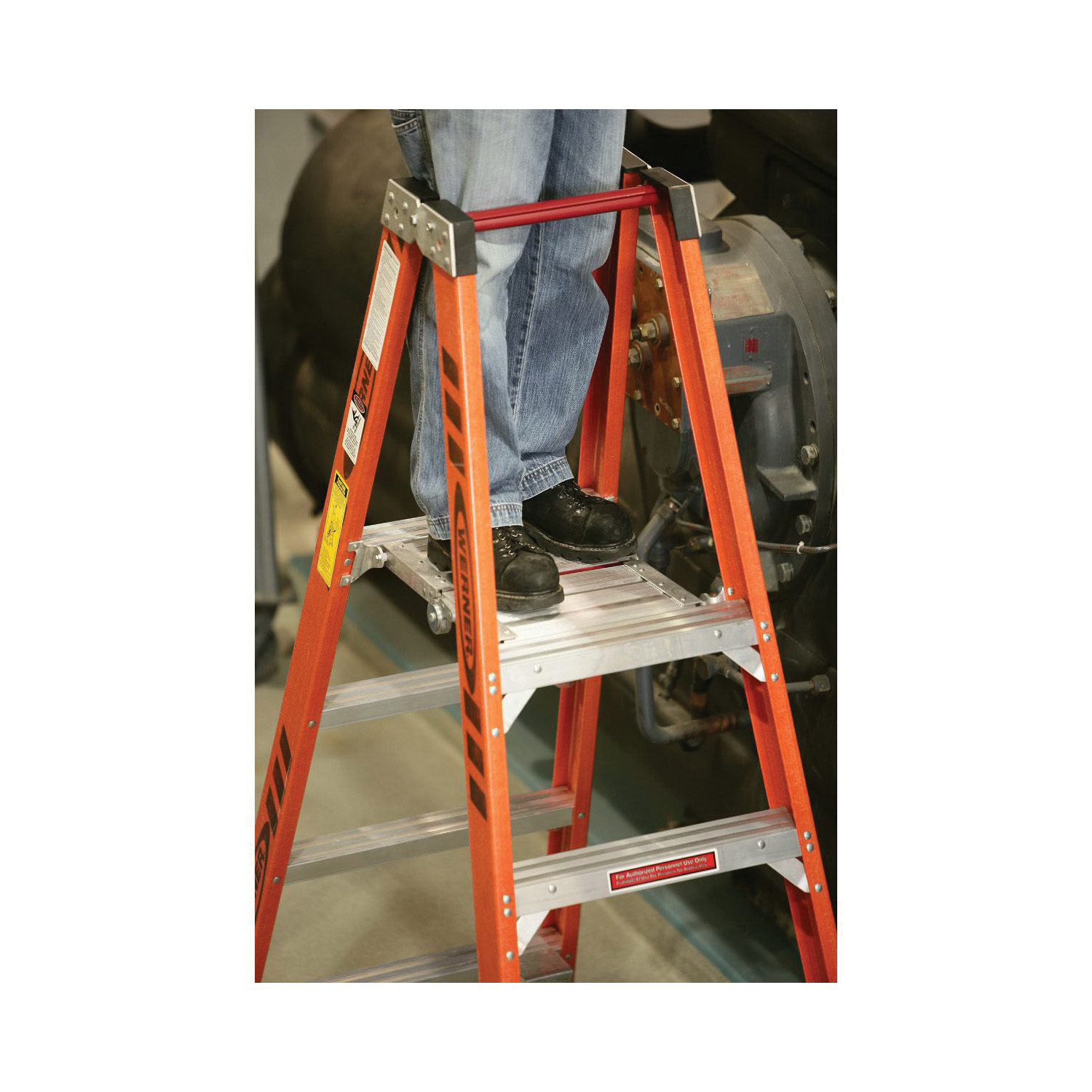

- Large platform provides secure and comfortable work area
- Shoulder bolt and lock nut on top hinge; 4 solid aluminum rivets attach top to each front rail
- Full set of rear horizontals spaced one per foot
- Slip resistant TRACTION-TRED® extra wide steps are knee braced and double riveted

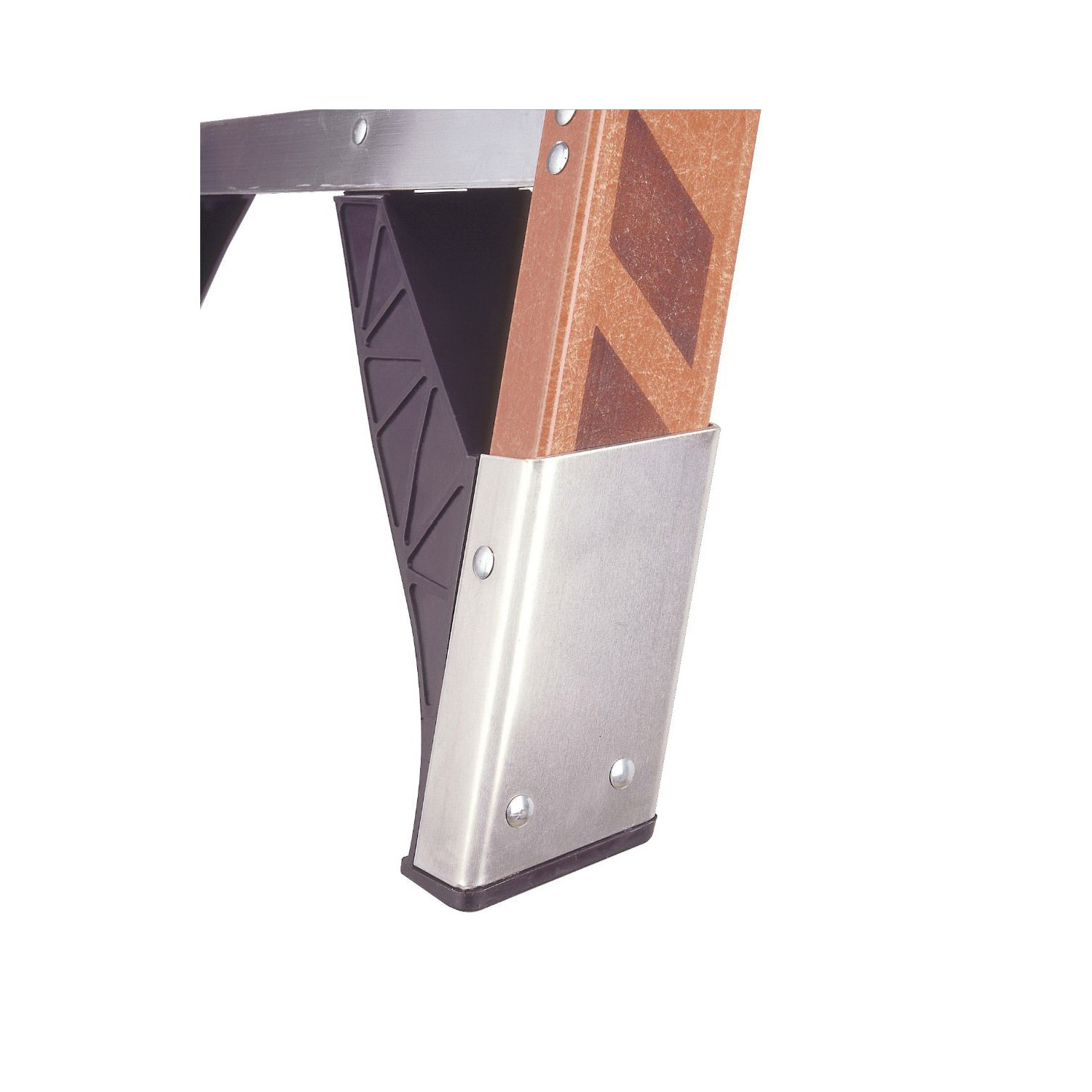

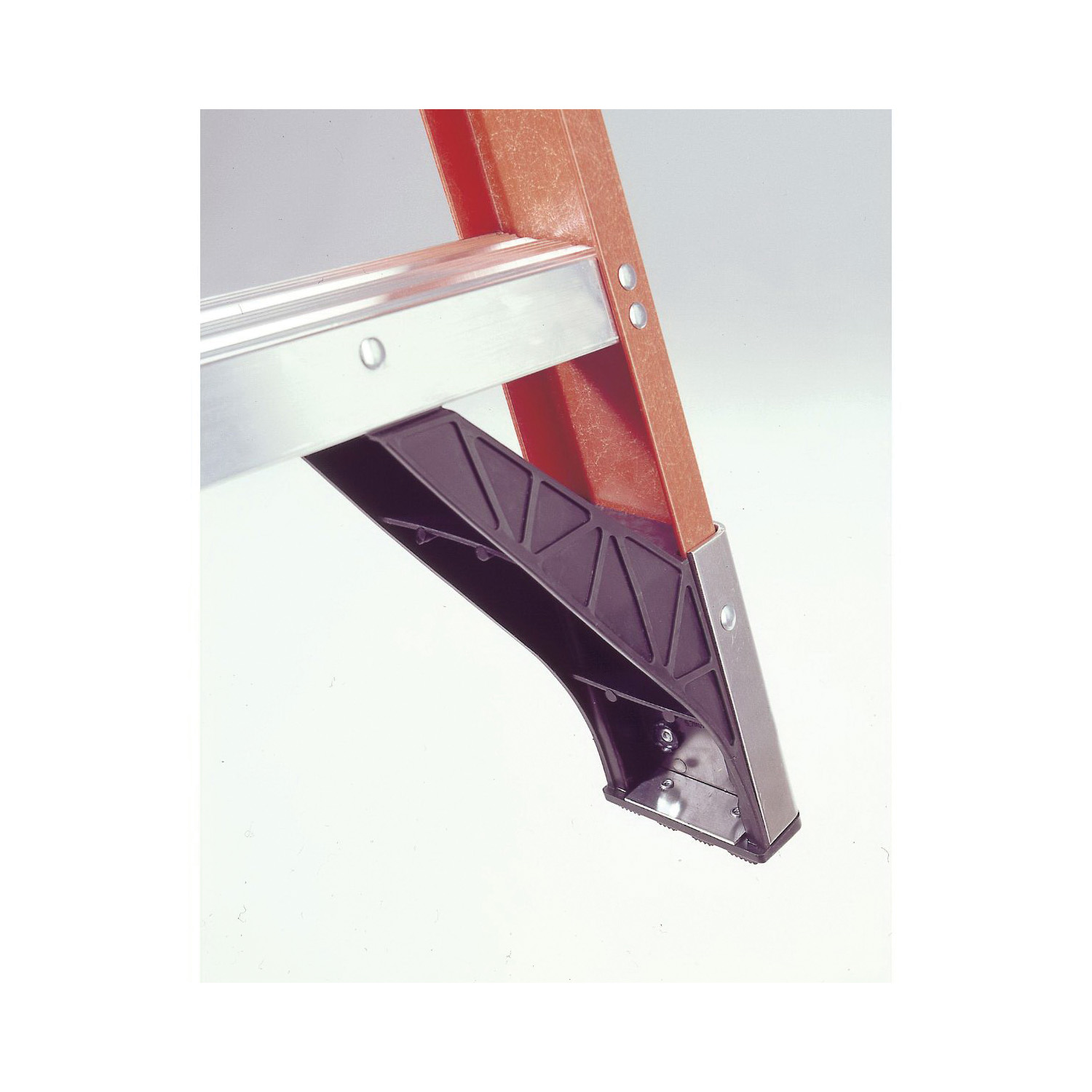

- EDGE® molded brace and foot pad combination provides enhanced bracing strength and increased protection against damage
- Glas*Mark® violator stripes on rails allow ladder to be more visible
- Aluminum external rail shield helps protect against abrasion damage
- Slip resistant foot pads attached to the EDGE® structure
- 6 ft H to platform
- 12 ft H reach
- 5 ft 9 in H maximum standing
- Features can hook
- 8 ft L closed
- 3-1/8 in front and 1-7/8 in rear rail
- 1-3/16 in front and rear flanges
-
UNSPSC30191506
-
Standards/ApprovalsANSI A14.5 (2007)|OSHA Compliant
