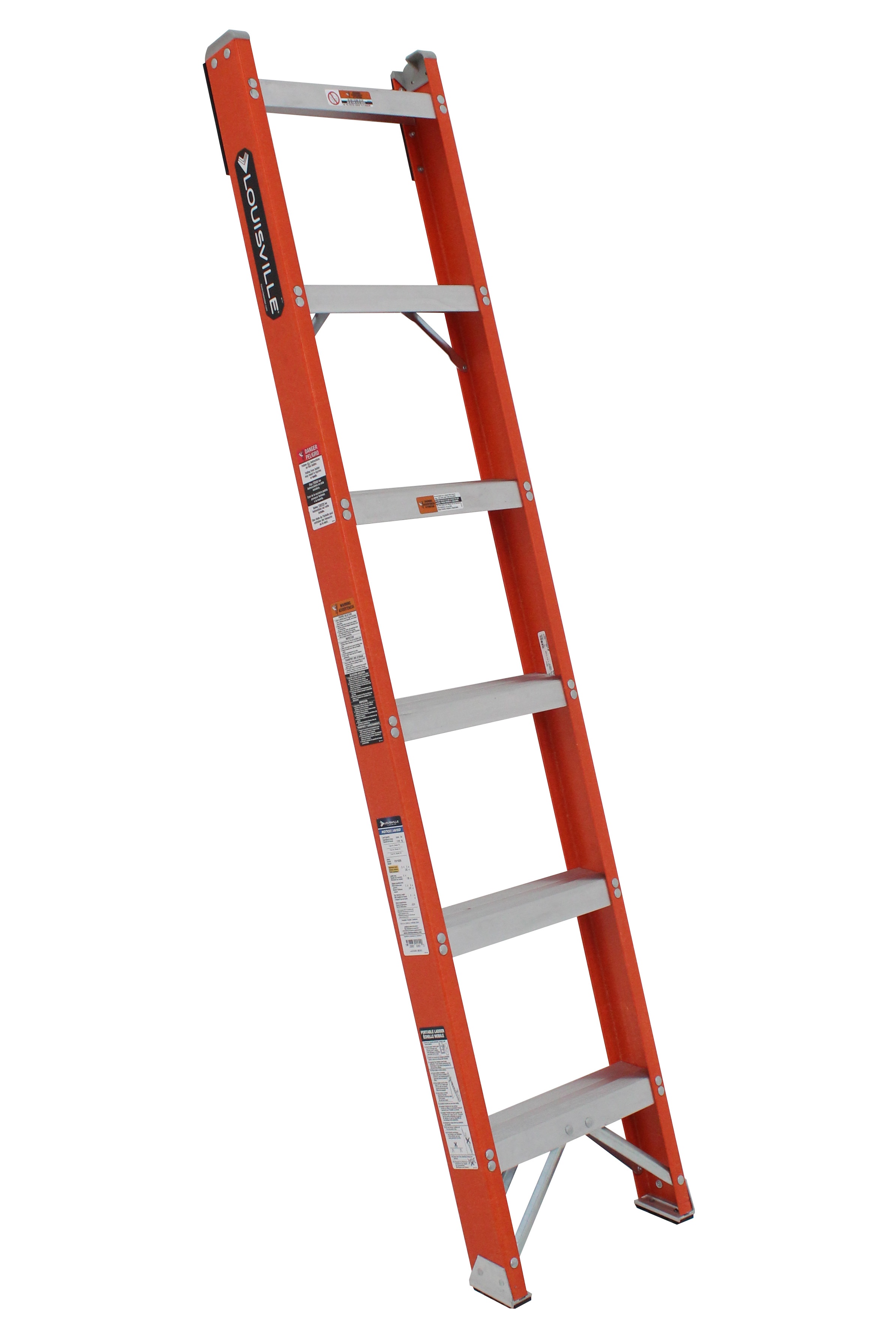

Louisville® FH1006 FH1000 1-Stage Heavy Duty Single Extension Ladder, 6 ft OAL, 300 lb Load, Fiberglass, Type IA
This Louisville 6 foot non-conductive fiberglass shelf ladder has a load capacity of 300 lb, rated ANSI Type IA. This ladder is designed so that steps are at level when the ladder is set at 18 degrees. This shelf ladder is equipped with a rubber bumper that extends 6-inches down the side rails to protect the landing surface and to provide stability, heavy-duty gusset bracing, angled aluminum slip-resistant rubber feet, double-rivet step construction, and angled serrated aluminum steps. This ladder is ideal for getting to shelves with narrow aisles where standard ladders will not fit. The Louisville FH1006 shelf ladder meets or exceeds the safety standards set by ANSI, CSA, and OSHA.
-
BrandLouisville®
-
UPC728865024510
-
Manufacturer Part NumberFH1006
-
CountryUSA
-
Load Capacity300 lb
-
MaterialFiberglass
-
Rail TypeNon-Conductive
-
Maximum Working Length3 ft 10 in
-
Type1-Stage Heavy Duty Single
-
ANSI CodeType IA
-
Section Length6 ft
-
SeriesFH1000
-
Shoe TypeRubber Bumper
-
Outside Shoe Base Width15-1/8 in
-
Overall Length6 ft
- Angled Aluminum Slip-Resistant Rubber Feet
- Double-Rivet Step Construction
- Serrated Aluminum Steps

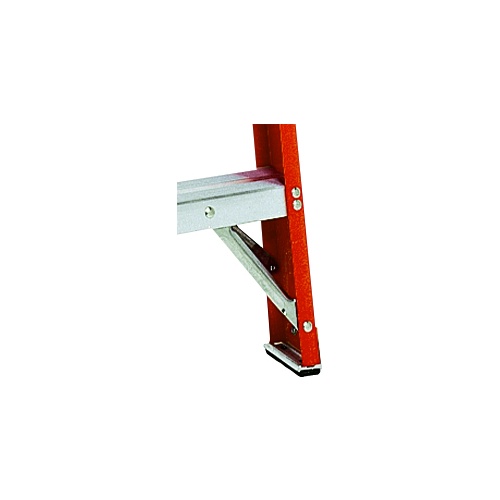

- Heavy-Duty Gusset Bracing
- Steps are level when the ladder is set at 18 deg

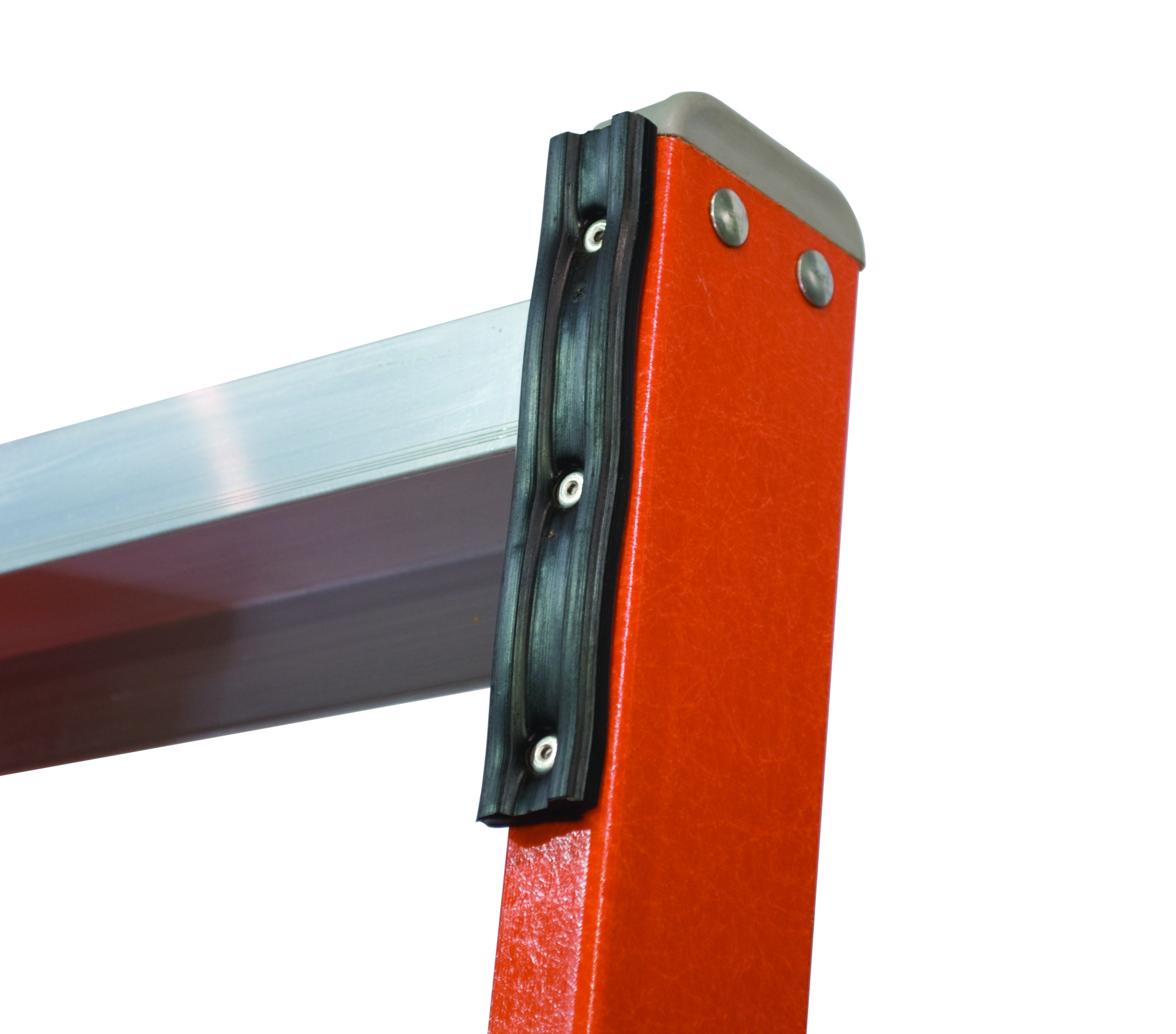

- Rubber bumper - ladder has parallel sides with thick rubber bumpers extending 6-inch down the side rails for protection of landing surface and stability

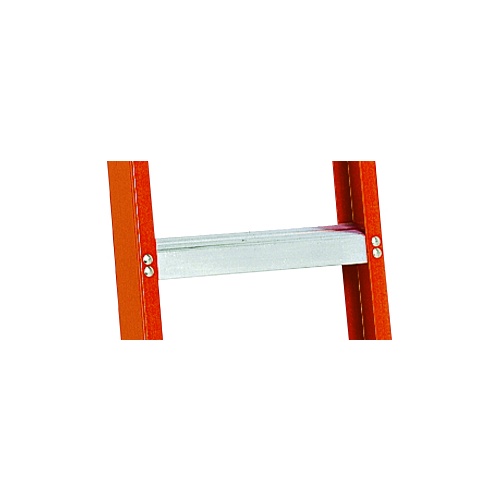

- Double rivet step construction - each step secured with six, large headed, semi-tubular steel rivets for maximum strength
- Ideal for getting to shelves with narrow aisles when standard ladders will not fit
- Standard step rung
- 3 in step depth
- 3-1/8 in rail depth
- 3-1/4 in closed cubic feet
- 10 ft 4 in maximum reach
- 71-7/8 in H x 15-1/5 in W x 3-1/4 in D closed
- 15-1/5 in bottom width
- 3-1/4 in base spread
- 6 steps
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 0532963 |
-
UNSPSC26120000
-
Package DescriptionEACH
-
Standards/ApprovalsOSHA Compliant
-
Specification Sheet
