WERNER 60' 250# TY-1 ALUMINUM EXT/LADDERS WER 560-3

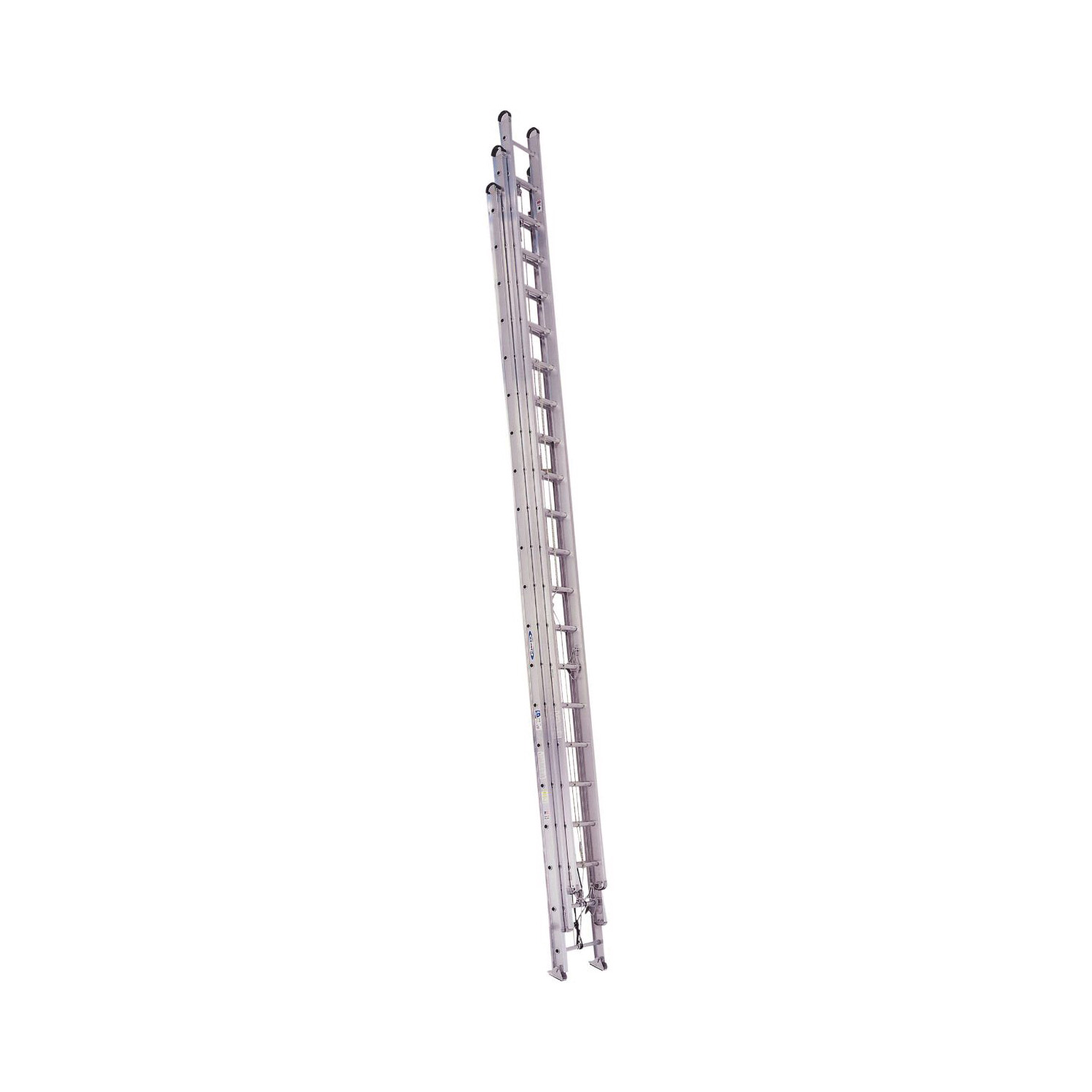

The 560-3 is a 3 section 60 ft aluminum extension ladder that has a duty rating of 250 pounds. The exclusive ALFLO® rung joint means TWIST-PROOF® performance. The top fly section can be removed and used separately as a single straight ladder. The bottom base section and intermediate section can be used as a 40 ft extension ladder. Shoes pivot for use on hard or penetrable surfaces. Rugged spring loaded locks operate smoothly. Heavy duty rope and double pulley system lift fly and intermediate sections. Rugged spring loaded locks operate smoothly.
-
BrandWERNER®
-
UPC051751012507
-
Manufacturer Part Number560-3
-
CountryUSA
-
Load Capacity250 lb
-
MaterialAluminum
-
Rail TypeI-Beam
-
Maximum Working Length47 ft
-
TypeRound Rung
-
ANSI CodeType I
-
Adjustable Increments12 in
-
Section Length20 ft
-
Series500-3
-
Shoe TypeFree Swinging
-
Outside Shoe Base Width23-1/2 in
-
Overall Length60 ft
- Exclusive ALFLO® rung joint means TWIST-PROOF® performance
- 1-1/4 in slip resistant TRACTION-TRED® D-rungs

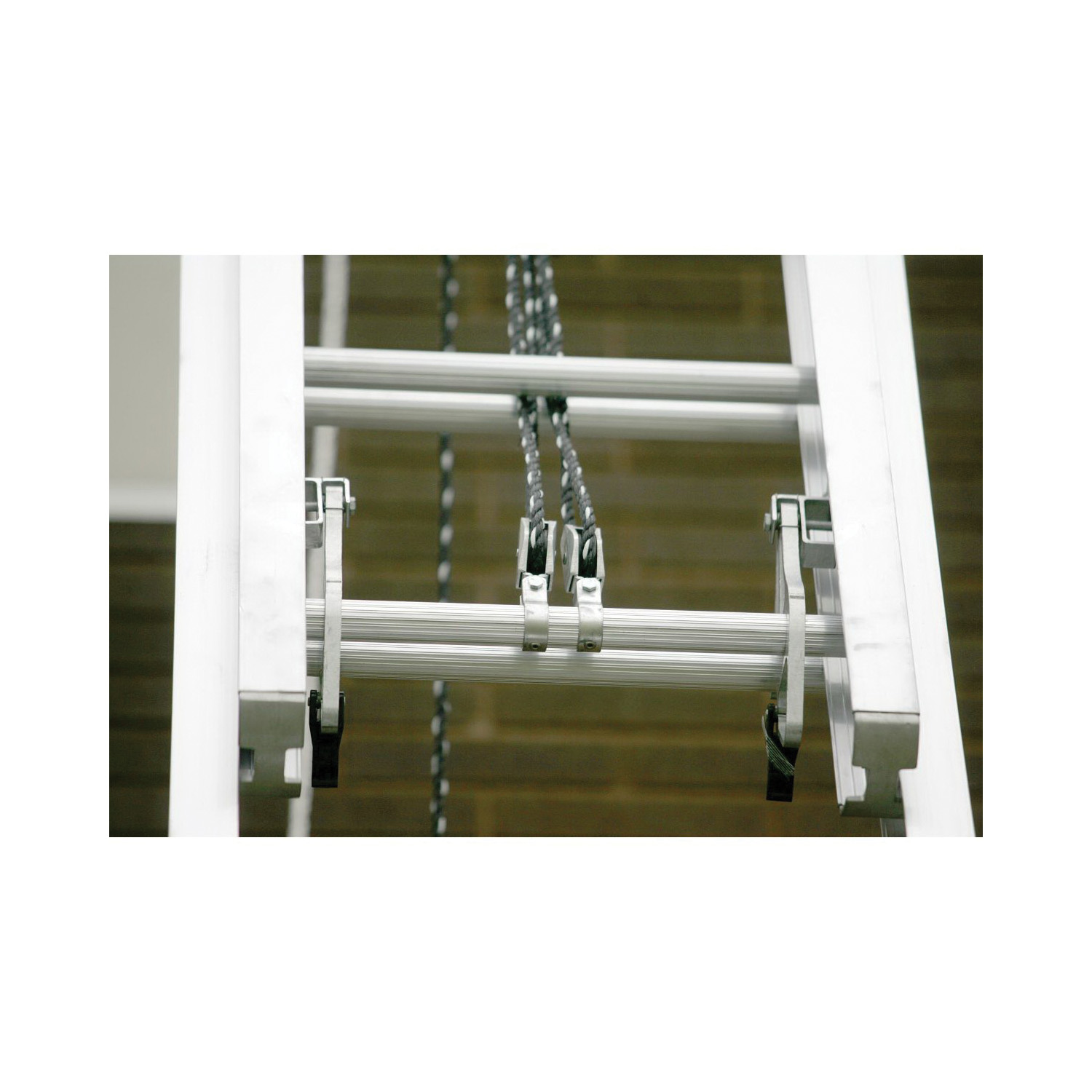

- Heavy duty rope and double pulley system lift fly and intermediate sections
- Heavy duty extruded rung locks are spring loaded to operate smoothly
- Removable top fly section includes slip resistant shoes for use as a single ladder
- Bottom base section with top fly section can be used as a 40 ft extension ladder
- Internal guides increase ease of operation
- Extra heavy duty I-Beam rails

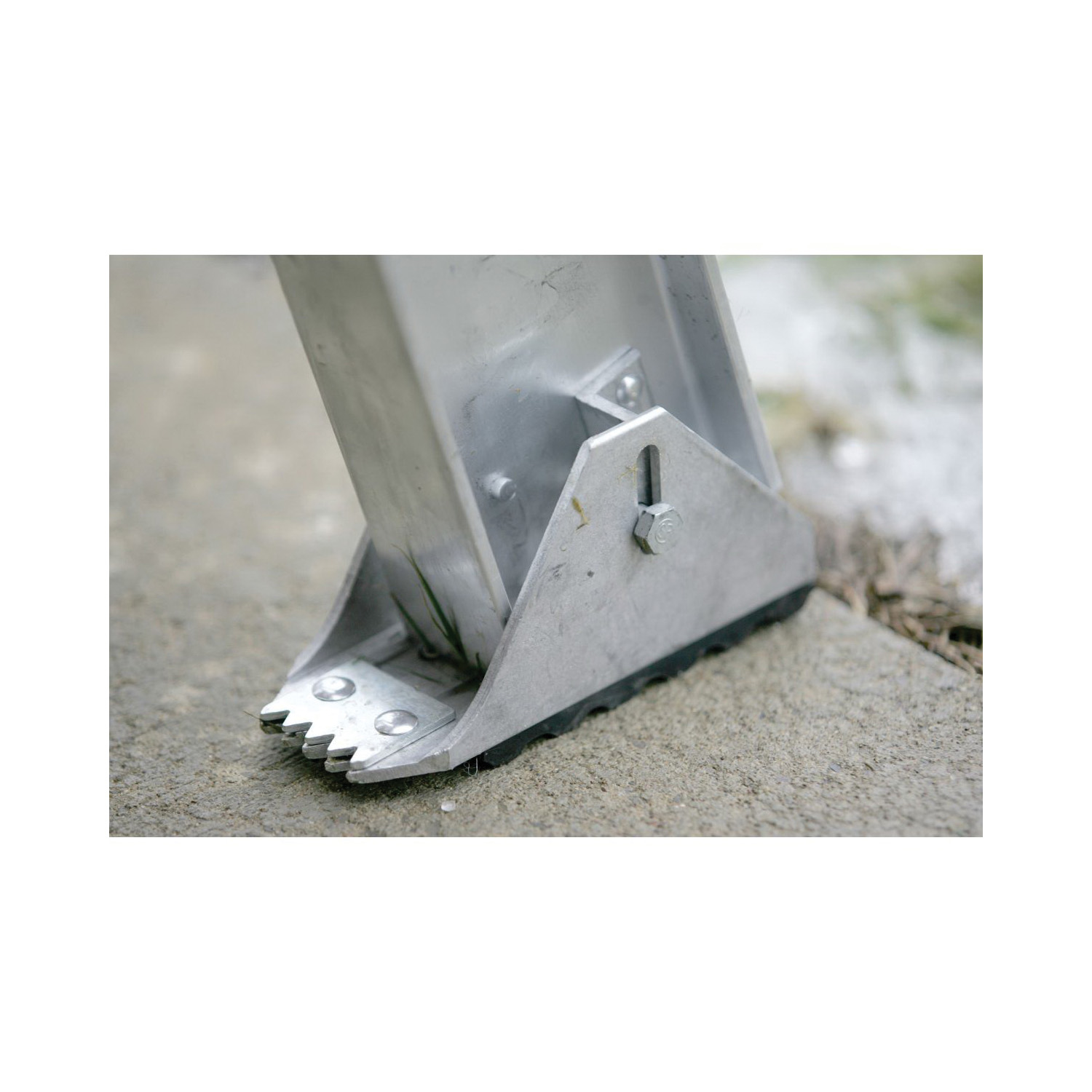

- Heavy duty, self-aligning, free-swinging shoe with slip resistant tread and replaceable steel spur plate
- 49 ft H reach
- 47 ft L maximum open extended
- Multi section style
- 20 ft L approximate closed
- Slip resistant pad foot material
- 3 sections
- 4 in rails
- 2 in (base and intermediate sections 1-3/8 in (top fly section flange
- 1-1/4 in rung
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 2113560 |
-
UNSPSC30191501
-
Standards/ApprovalsANSI A14.2 (2007)|OSHA Compliant
-
