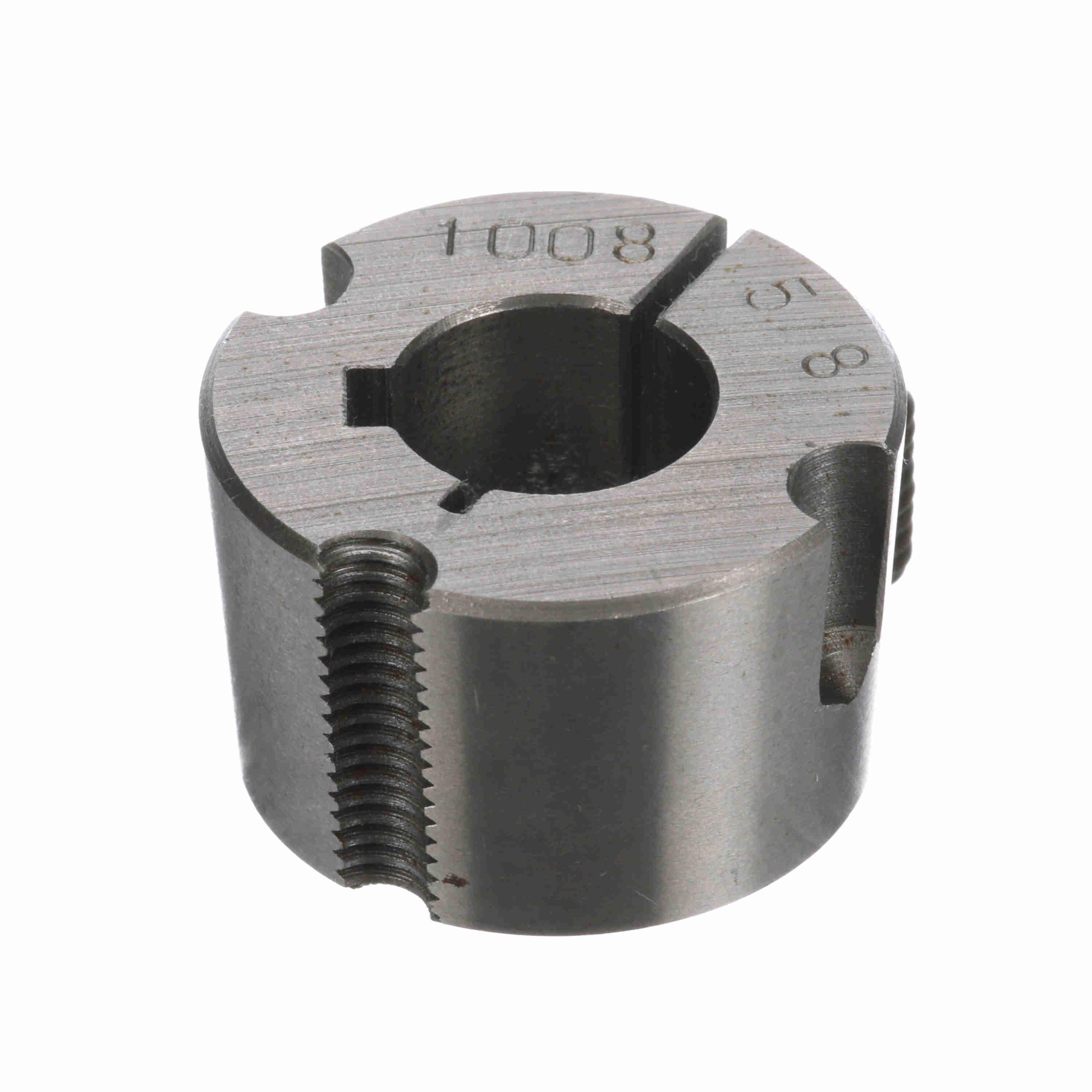

Browning® 3748399 Taper Lock Bushing, 5/8 in Dia Bore, 1-25/64 in Dia Barrel, 7/8 in OAL, Steel
Browning® 3748399 Taper Lock Bushing, 5/8 in Dia Bore, 1-25/64 in Dia Barrel, 7/8 in OAL, Steel
-
BrandBrowning®
-
UPC662289610730
-
Manufacturer Part Number3748399
-
CountryUSA
-
Taper1-1/2 in/ft
-
MaterialSteel
-
Torque Rating1200 in-lb
-
Screw Size1/4 x 1/2 in
-
Number of Bolt Holes2
-
Barrel Diameter1-25/64 in
-
Keyway Size3/16 x 3/32 in
-
Bolt Circle Diameter1-21/64 in
-
Bore Diameter5/8 in
-
Overall Length7/8 in
-
Suitable For Use WithBrowning® Sprockets and HPT Chain Synchronous Belt Drives
-
Alternative Part Number1008X5/8
-
UNSPSC31163205
-
Package Description1/PK
-
Warranty1 Year
-
