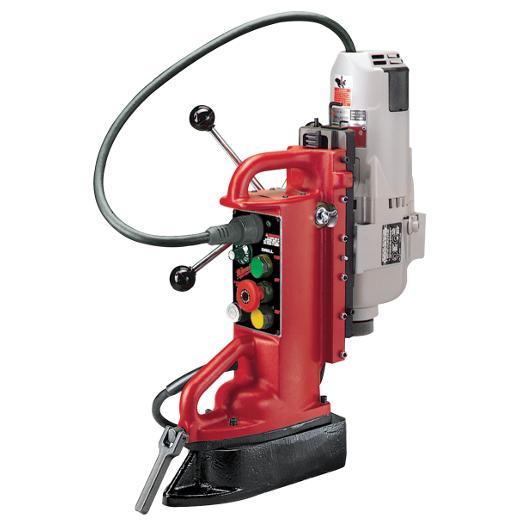

Milwaukee MAGNETIC DRILL PRESSES MWK 4209-1
This combination unit features the 4203 adjustable position, variable speed base and the 4292-1 1-1/4 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.
-
BrandMilwaukee®
-
UPC045242012862
-
Manufacturer Part Number4209-1
-
CountryUSA|Canada
-
Chuck Size1-1/4 in
-
TypeAdjustable Position Heavy Duty
-
Voltage Rating120 V AC
-
Amperage Rating12.5 A
-
Horsepower2 hp
-
Dimensions21 in L x 7 in W
-
Number of Spindle Speeds1
-
Spindle Speed750/375 rpm
-
Spindle Taper#3 Morse
-
Spindle Travel11 in
-
Drill Point Pressure1530/1600 lb
-
Drill to Center From Base5-3/32 in
-
Overall Height25-1/4 in
- Solid state electronic switching
- Feedback speed control
- Line lock-out prevents tool from operating should voltage be restored to an interrupted line
- Computer controlled reverse
- Motor magnet lockout prevents de-mag during operation
- Full wave holding power
- Steel table
- Grounded construction
- Use with the larger 4203 adjustable base for the toughest applications
- 1-14 table load capacity
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3TB70 |
-
Alternative Part Number9346027
-
UNSPSC23241801
-
IDEA Index ID9346027
-
Package Description1/PK
-
Warranty5 years
