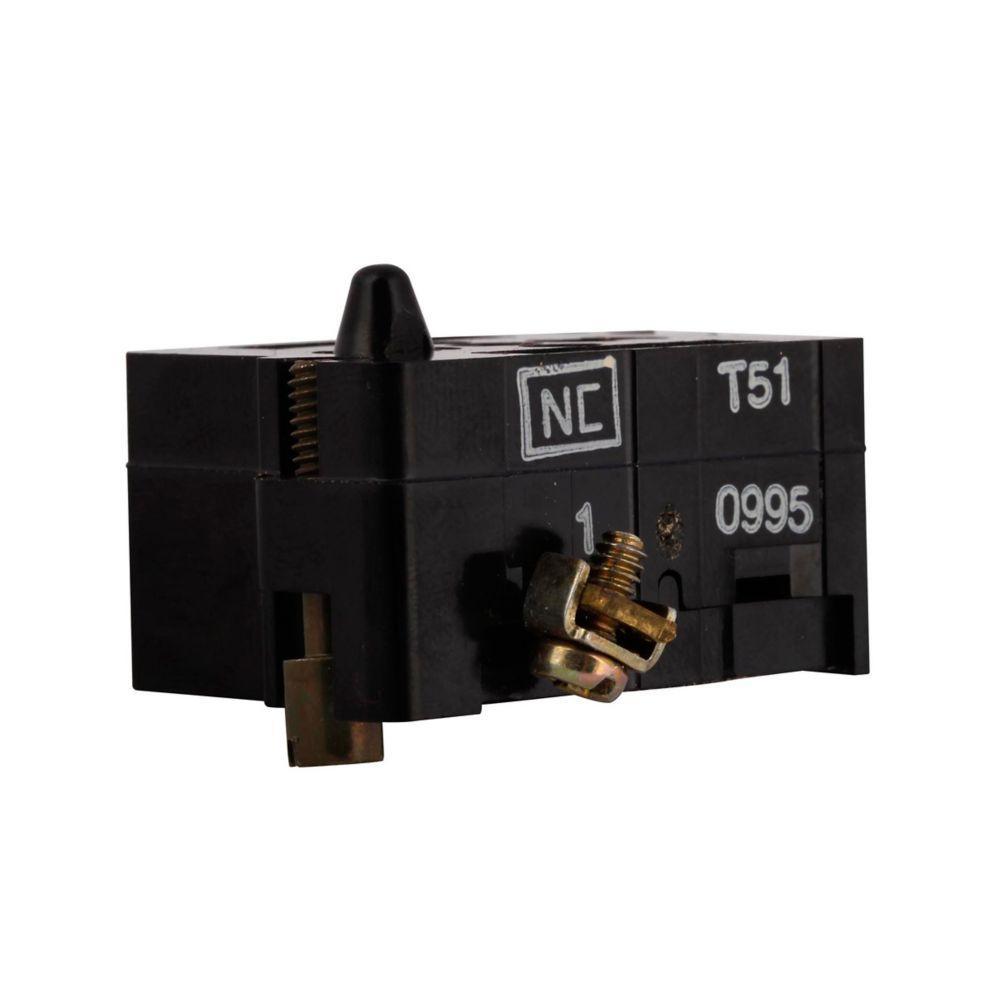

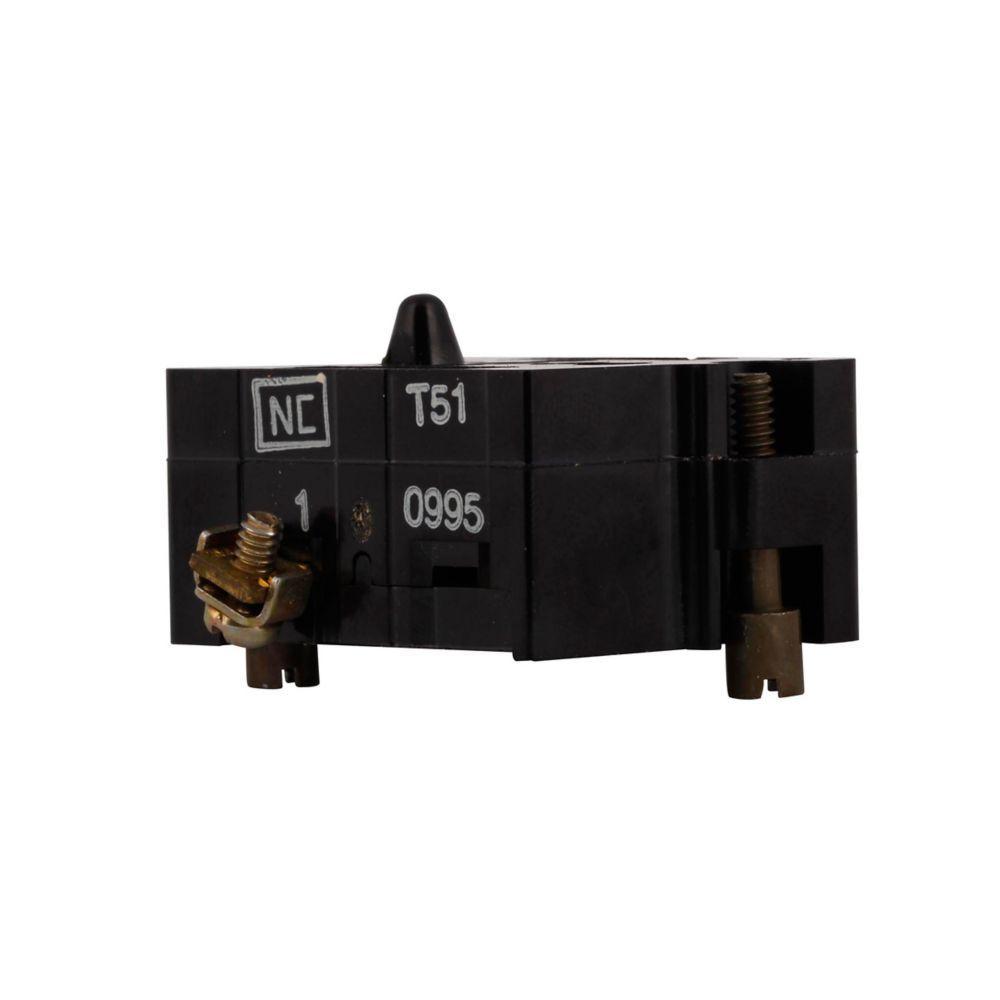

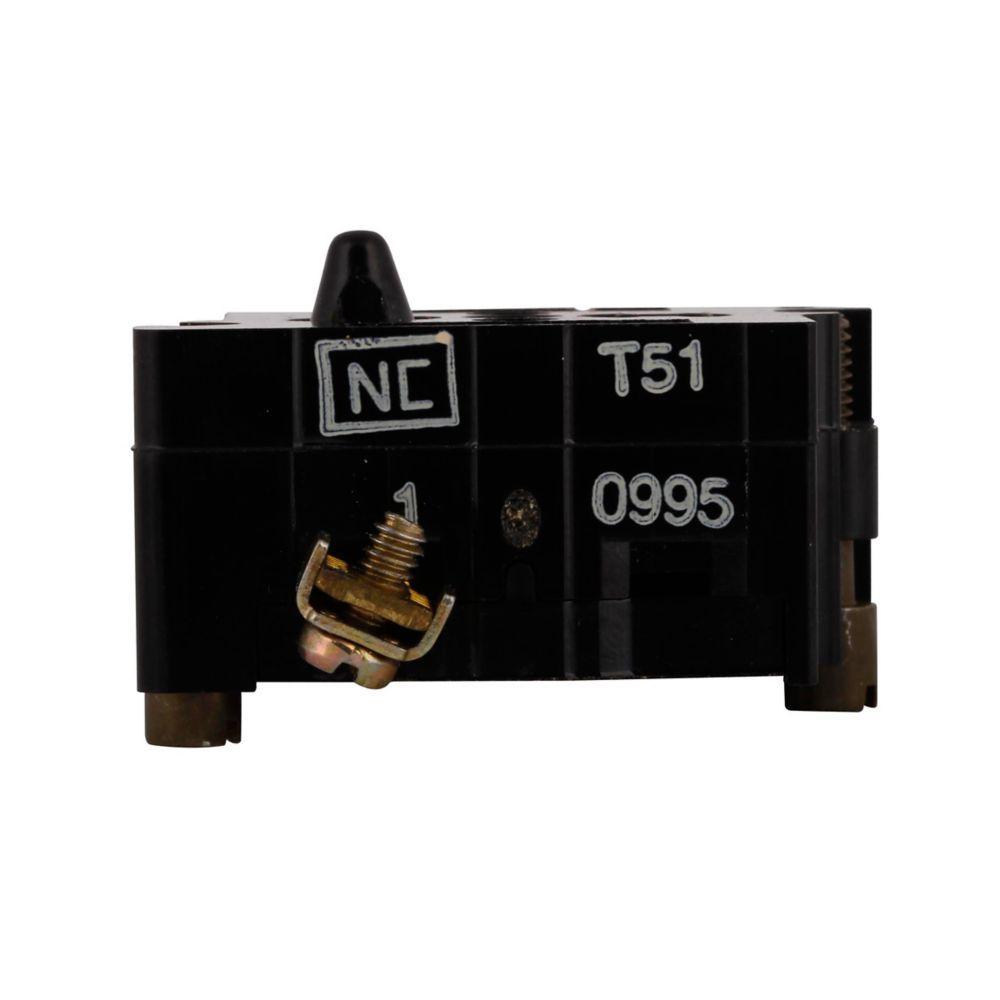

EATON 10250T51 Heavy Duty Standard Contact Block, 30.5 mm, 1NC Contact, 10 A at 600 V AC, 5 A at 250 V DC Contact, Silver Contact, Momentary Action, Gray
Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
-
BrandEATON
-
UPC782113203485
-
Manufacturer Part Number10250T51
-
CountryUSA|Canada
-
Terminal TypePressure
-
MaterialDie Cast Zinc
-
ColorGray
-
TypeHeavy Duty Standard
-
Contact Configuration1NC
-
Mounting Type6-Stack
-
Contact Rating10 A at 600 V AC, 5 A at 250 V DC
-
NEMA RatingNEMA 1/2/3/3R/4/4X/12/13
-
ActionMomentary
-
Series10250T
-
Dimensions1.9 in L x 1.3 in W x 2.2 in H
-
Size30.5 mm
-
Enclosure TypeIP65
- Contact blocks feature enclosed silver contacts with pointed reliability nibs
- To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
- Stack up to 6-blocks (six circuits) unless otherwise noted
- For use with EATON 10250T 30 mm pushbuttons and indicating lights
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 39R023 |
-
Alternative Part Number7342388
-
UNSPSC39122221
-
IDEA Index ID7342388
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified,UL Listed,CE Marked
-
Warranty1 year
-
Specification Sheet
-
Technical Bulletin
