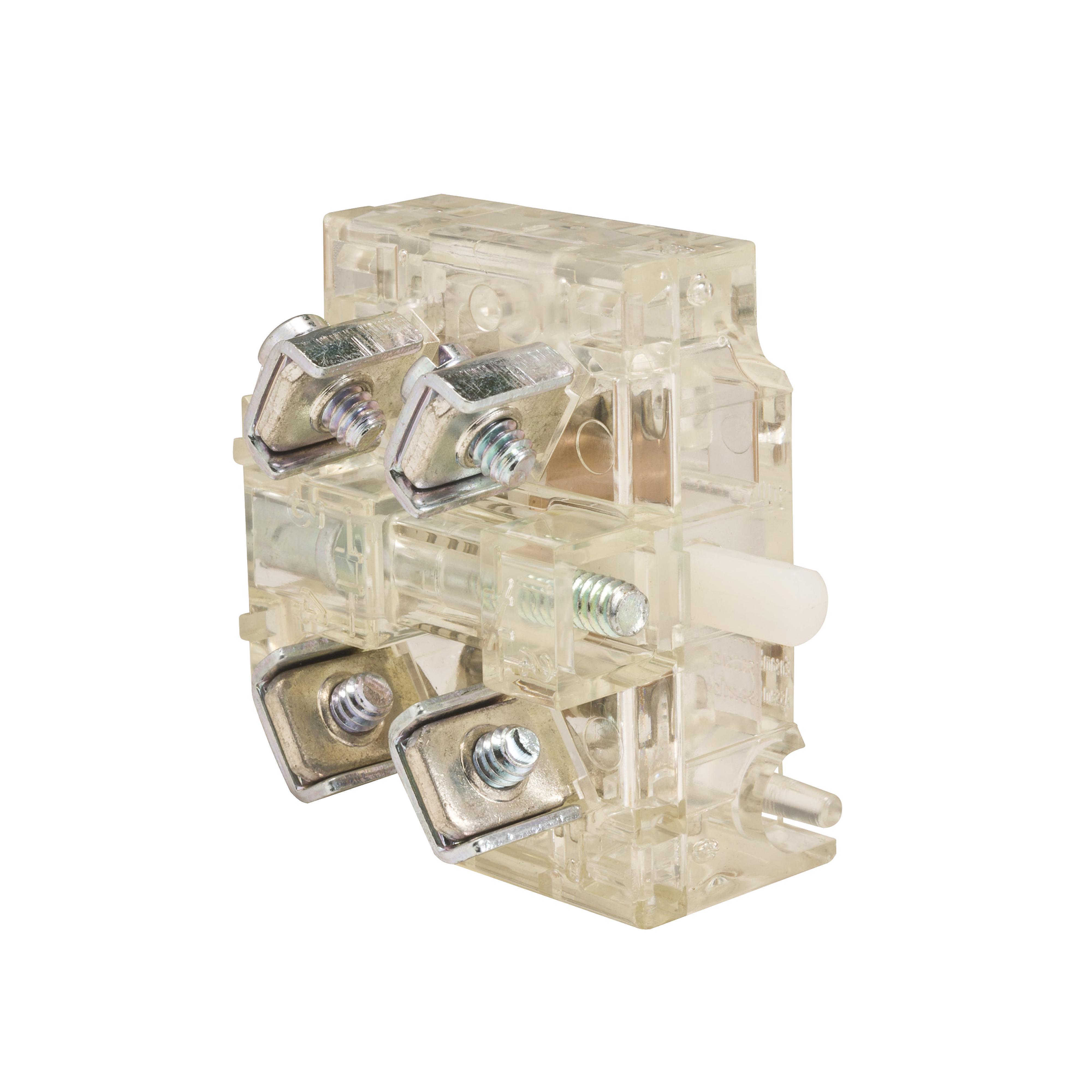

Schneider Electric Harmony 9001KA1G Style G Push Button Contact Block, 30 mm, 1NO-1NC Contact, 10 A, 600 V AC Contact, Silver Alloy Contact, Clear
Square D™ Harmony™ 9001KA1G Style G Push Button Contact Block, 30 mm, 1NC-1NO Contact, 10 A, 600 VAC Contact, Silver Alloy Contact, Clear
-
BrandSchneider Electric
-
UPC785901028789
-
Manufacturer Part Number9001KA1G
-
CountryUSA
-
MaterialNylon
-
ColorClear
-
TypeStyle G
-
Contact Configuration1NO-1NC
-
Mounting TypeThreaded
-
Contact Rating10 A, 600 V AC
-
Series9001K
-
Size30 mm
-
Enclosure TypeIP20
- Amorphous nylon housing
- Steel terminal
- Steel saddle clamp
- Stainless steel spring
- Paper label
- Steel mounting screw
- -13 to 158 deg f operating temperature
- (2) 24 to 12 awg solid or stranded wires
- For use with ring tongue
-
Alternative Part Number8155511|23277646
-
UNSPSC39121522
-
IDEA Index ID23277646
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL File No. E42259|CCN Guide No. NKCR|CSA File No. LR24590 Class 3211-03|CE Certified|PROP65: This product can expose you to chemicals including Nickel compounds which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty18 Months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
