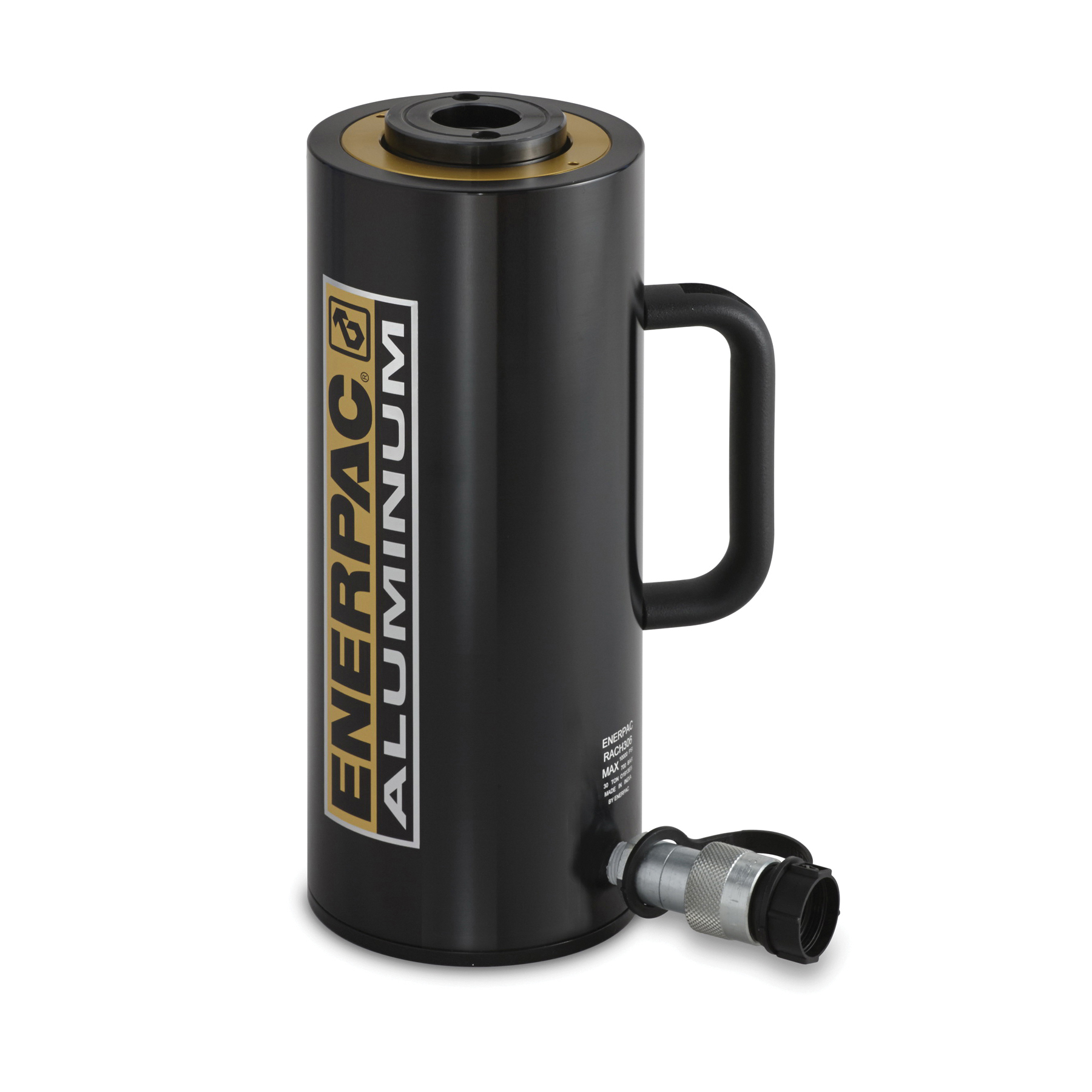

Enerpac® RACH202 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 25.4 ton Capacity, 2.95 in Bore, 1.97 in L Stroke, 7.41 in Retract, 2.17 in Dia Rod, 10000 psi Pressure
Enerpac® RACH202 Hollow Plunger Single Acting Spring Return Hydraulic Cylinder, 25.4 ton Capacity, 2.95 in Bore, 1.97 in L Stroke, 7.41 in Retract, 2.17 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005126378
-
Manufacturer Part NumberRACH202
-
CountryUSA
-
Capacity25.4 ton
-
FinishHard Coated
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeHollow Plunger Single Acting Spring Return
-
Retract7.41 in
-
Rod Diameter2.17 in
-
Mounting TypeBase
-
SeriesRACH
-
Housing MaterialAluminum
-
Dimensions3.93 in OD x 9.38 in H
-
Stroke Length1.97 in
-
Bore Size2.95 in
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load induced damage
- Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
- High strength return spring for rapid cylinder retraction
-
UNSPSC27121602
-
Standards/ApprovalsASME B-30.1|ISO 10100
-
WarrantyLimited
-
