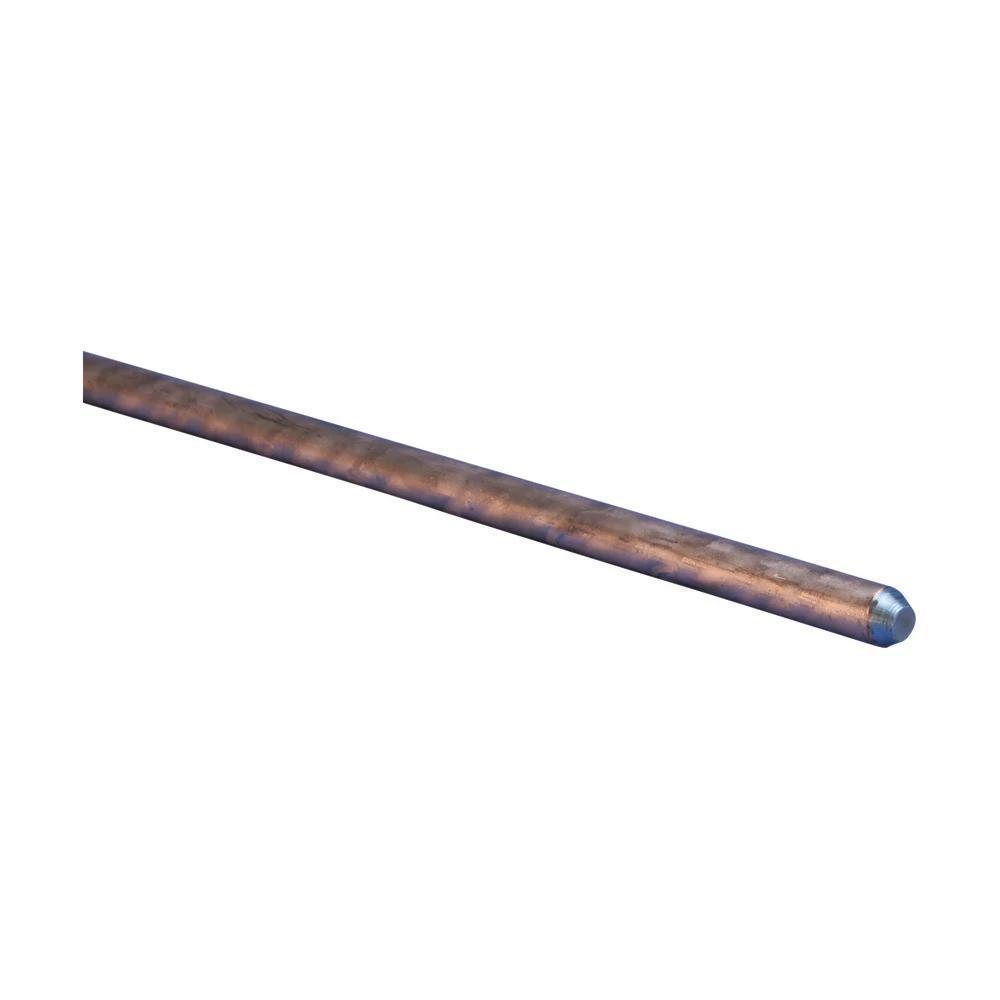

nVent ERICO 611380UPC Pointed Ground Rod, 1/2 in Nominal, 8 ft OAL, Copper Bonded Steel, Electrolytic Copper Coated, 10 mil THK Coating
nVent ERICO 611380UPC Pointed Ground Rod, 1/2 in Nominal, 8 ft OAL, Copper Bonded Steel, Electrolytic Copper Coated, 10 mil THK Coating
-
BrandnVent ERICO
-
UPC782856331483
-
Manufacturer Part Number611380UPC
-
CountryUSA|Canada
-
FinishElectrolytic Copper Coated
-
Tensile Strength80000 psi
-
MaterialCopper Bonded Steel
-
TypePointed
-
Nominal Size1/2 in
-
Overall Length8 ft
- Rods have a high carbon steel core and tip that provide superior strength when driving
- Copper coating will not crack when bent or tear when driven
- UL logo and control number where applicable stamped on each rod for easy inspection after installation
| Cross-Reference Number |
|---|
| 510450 |
-
Alternative Part Number14842973
-
UNSPSC39121613
-
IDEA Index ID14842973
-
Package DescriptionCARTON
-
Standards/ApprovalsUL 467|ANSI/NEMA GR1
-
Specification Sheet
-
Owners/User Manual
