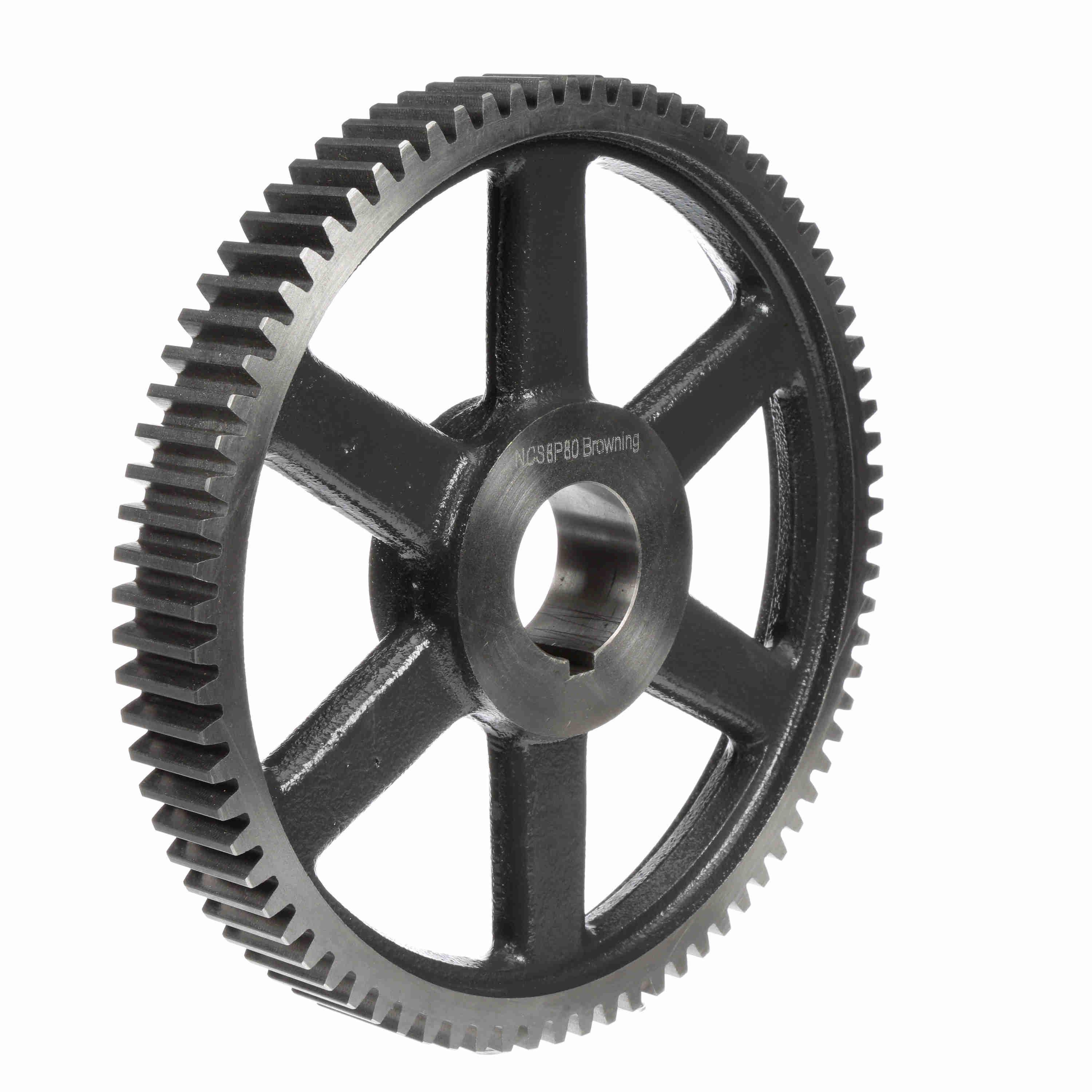

Browning® 1214246 Type 16 Spur Gear With Type P1 Split Taper® Bushing, 8 Diametral Pitch, 14.5 deg Pressure Angle, 1-1/4 in W Face, 84 Teeth, 10-1/2 in Dia Pitch, 1/2 to 1-3/4 in Dia Bore, Cast Iron
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289155712
-
Manufacturer Part Number1214246
-
CountryUSA
-
Face Width1-1/4 in
-
Pitch Diameter10-1/2 in
-
MaterialCast Iron
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeType 16
-
Hub Diameter3 in
-
Hub Projection11/16 in
-
Diametral Pitch8
-
Number of Teeth84
-
Keyway Size1/4 x 1/8, 3/16 x 3/32, 3/8 x 3/16, 5/16 x 5/32, 1/8 x 1/16 in
-
Outside Diameter10-3/4 in
-
Bore Diameter1/2 to 1-3/4 in
-
Overall Length2-3/16 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNCS8P84
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Catalog
-
Warranty Information
