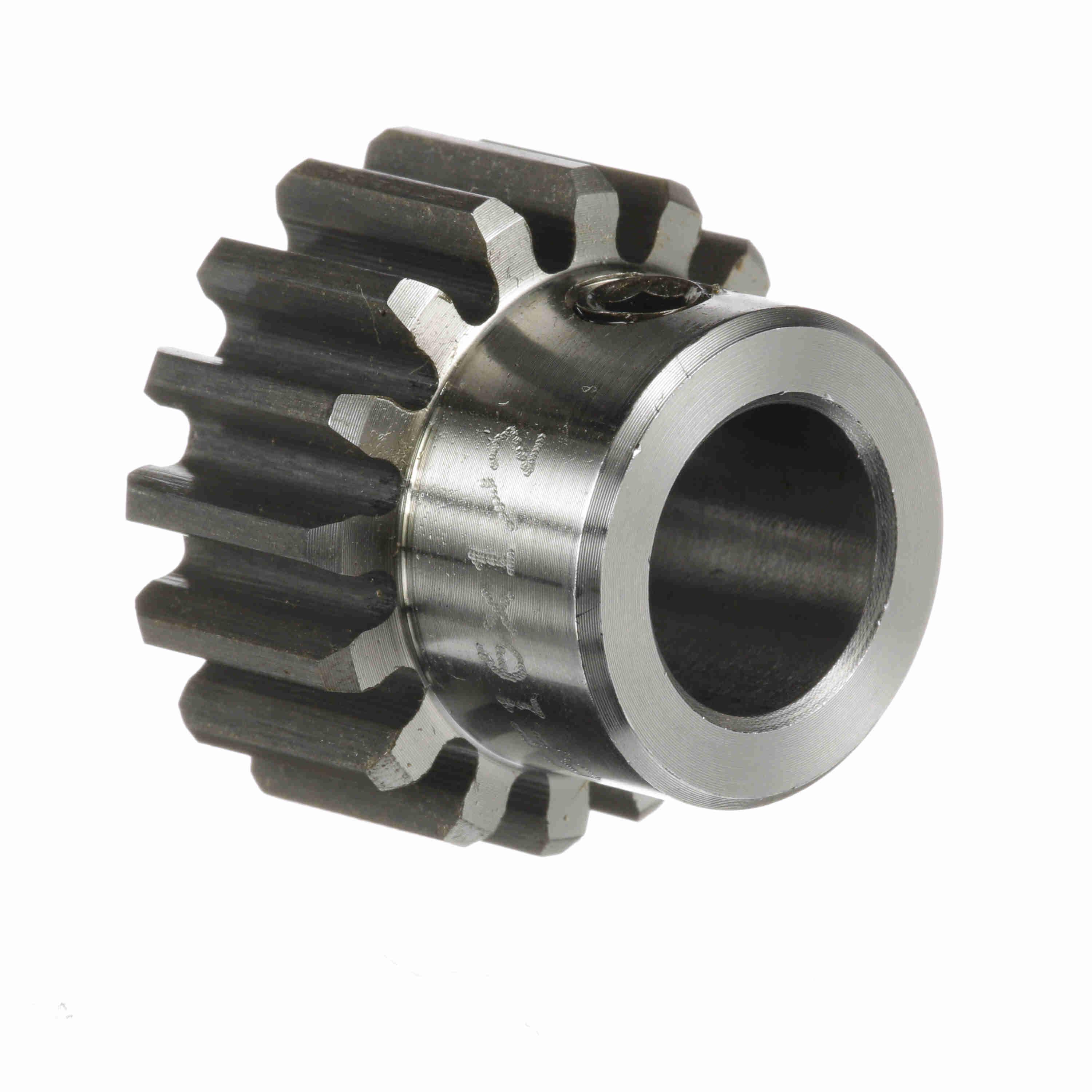

Browning 15-TOOTH 16-PITCH SPUR GEARS BRW NS-S-16-F-15 X 1/2
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289146970
-
Manufacturer Part Number1215268
-
CountryUSA
-
Face Width1/2 in
-
Pitch Diameter0.938 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeFinished Bore
-
Hub Diameter3/4 in
-
Hub Projection7/16 in
-
Diametral Pitch16
-
Number of Teeth15
-
Outside Diameter1.06 in
-
Bore Diameter1/2 in
-
Overall Length15/16 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberNSS16F15X1/2
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
