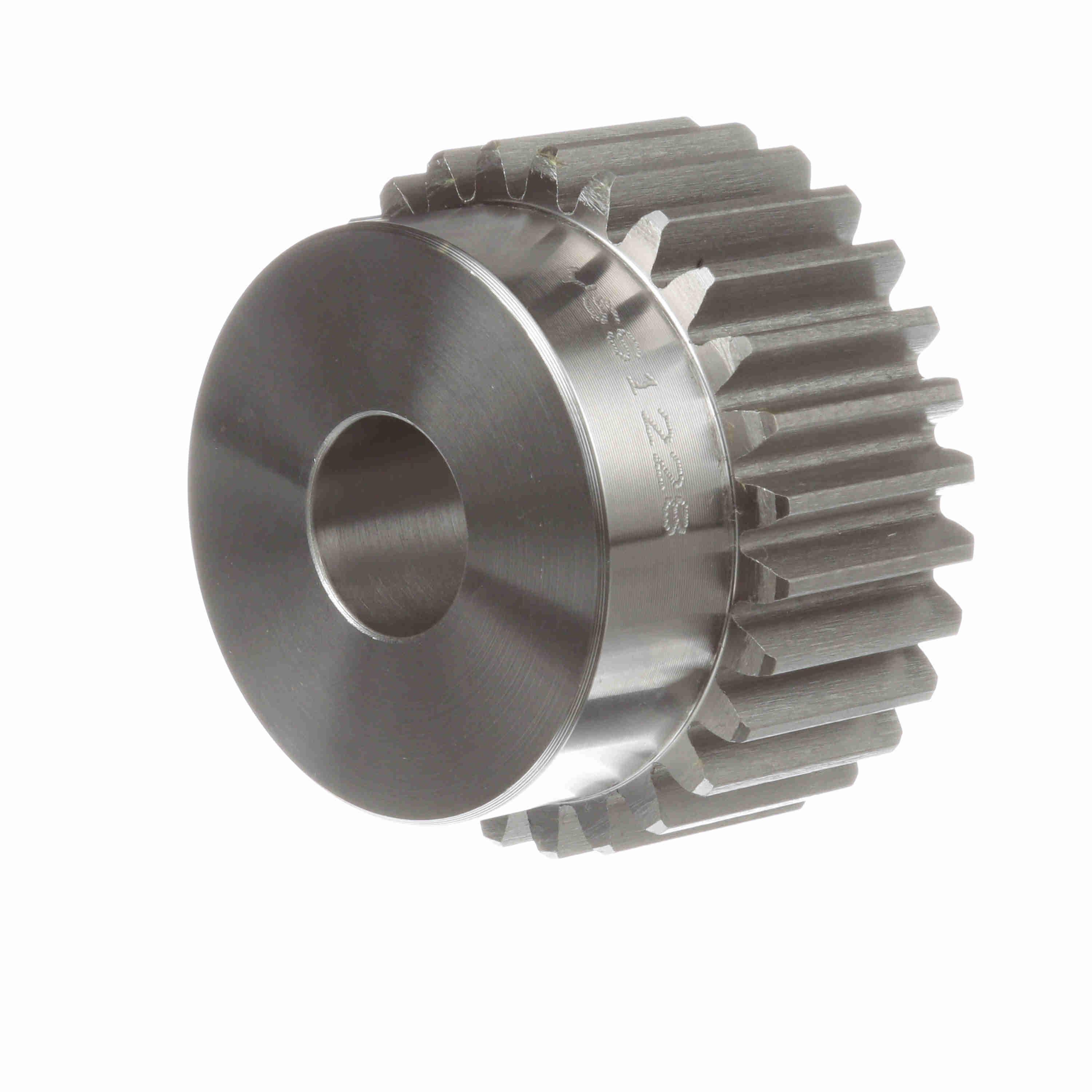

Browning 28-TOOTH 12-PITCH SPUR GEARS BRW YS-S-12-28
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289116232
-
Manufacturer Part Number1218718
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter2.333 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter2.063 in
-
Hub Projection5/8 in
-
Diametral Pitch12
-
Number of Teeth28
-
Outside Diameter2-1/2 in
-
Bore Diameter3/4 to 1-1/4 in
-
Overall Length1-5/8 in
- When you think Special Gears - Think Browning
-
Alternative Part NumberYSS1228
-
UNSPSC31171707
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
