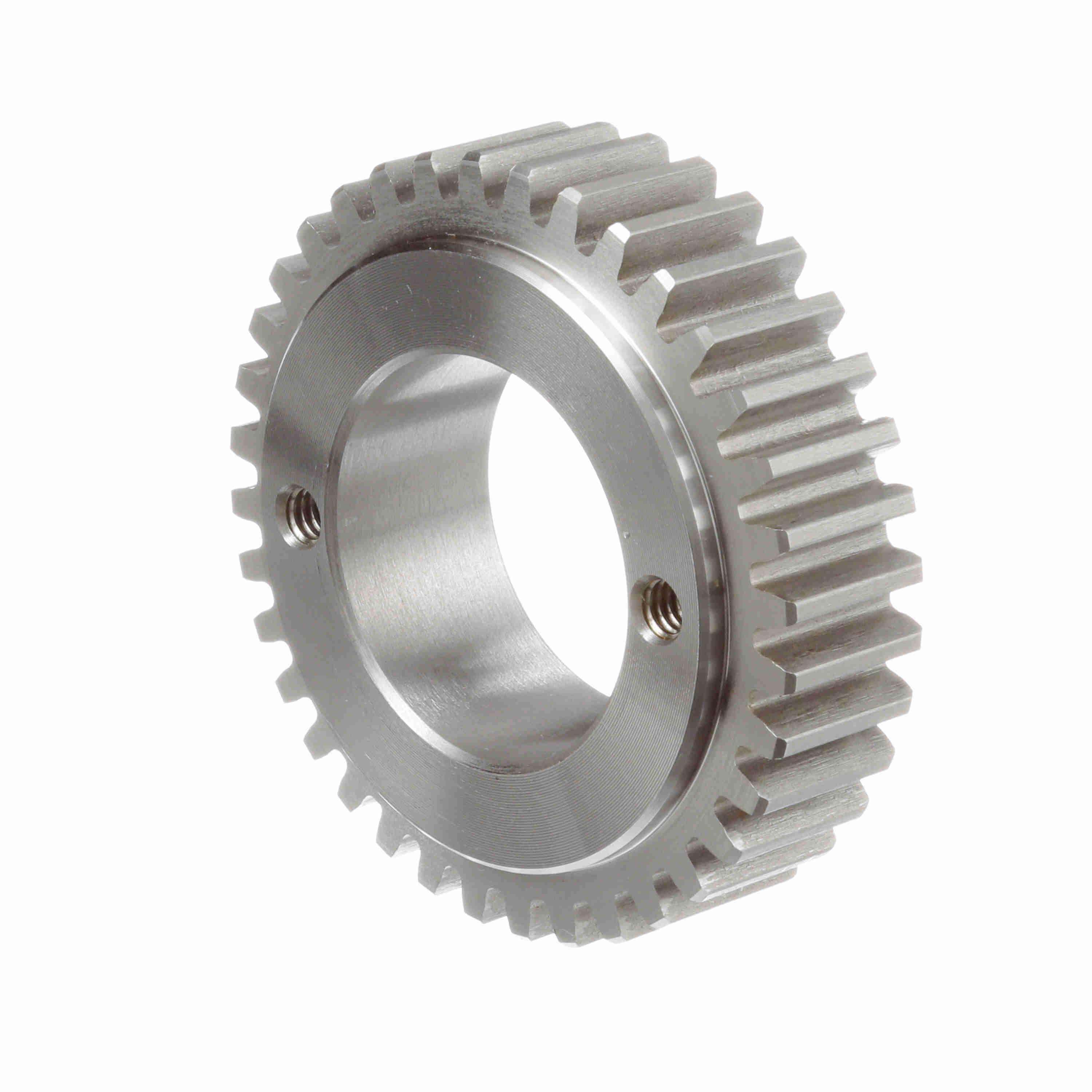

Browning® 1213701 Spur Gear With Type H Split Taper® Bushing, 12 Diametral Pitch, 14.5 deg, 3/4 in W Face, 36 Teeth, 3 in Dia Pitch, 3/8 in Dia Bore, Steel
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289215102
-
Manufacturer Part Number1213701
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter3 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Hub Diameter2-1/2 in
-
Hub Projection9/16 in
-
Diametral Pitch12
-
Number of Teeth36
-
Keyway Size1/4 x 1/8 in, 3/16 x 3/32 in, 1/8 x 1/16 in
-
Outside Diameter3.16 in
-
Bore Diameter3/8 in
-
Overall Length1-1/2 in
- Browning® split taper bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Helical gears are quieter than spur gears and give maximum smoothness on parallel shafts
- Browning® bushed gears hold the shaft with clamp fit and eliminate costly reworking on replacement gears
- Less expensive and more readily available than reworks
-
Alternative Part NumberNSS12H36
-
UNSPSC31171707
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Package DescriptionEACH
-
