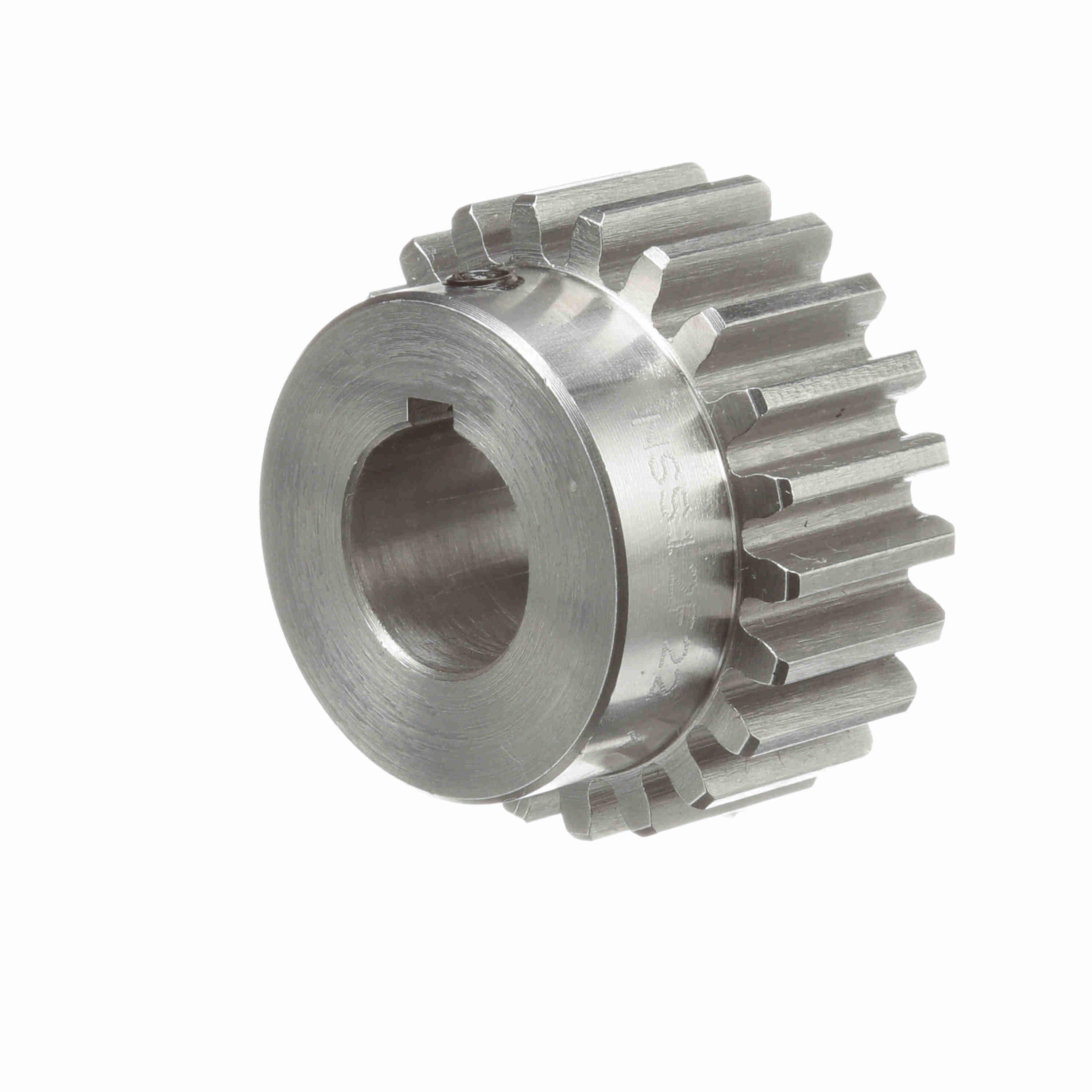

Browning 22-TOOTH 12-PITCH SPUR GEARS BRW NS-S-12-F-22-3/4
Browning® offers a comprehensive line of off-the-shelf gears, including spur, miter, bevel and change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14-1/2 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289297306
-
Manufacturer Part Number1215607
-
CountryUSA
-
Face Width3/4 in
-
Pitch Diameter1.833 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
TypeFinished Bore
-
Hub Diameter1-9/16 in
-
Hub Projection1/2 in
-
Diametral Pitch12
-
Number of Teeth22
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2 in
-
Bore Diameter3/4 in
-
Overall Length1-1/4 in
- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
- When you think Special Gears - Think Browning
- Browning shear pin hubs are designed to prevent damage due to an overload or jam by shearing the necked pin at a predetermined load
- Browning shear pin hubs consist of 3 parts - steel sprockets, hub assembly, malleable bushing
- Browning Finish Bore Spur Gears are shaft ready and eliminate costly reworking of minimum bore gears
-
Alternative Part NumberNSS12F22X3/4
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
