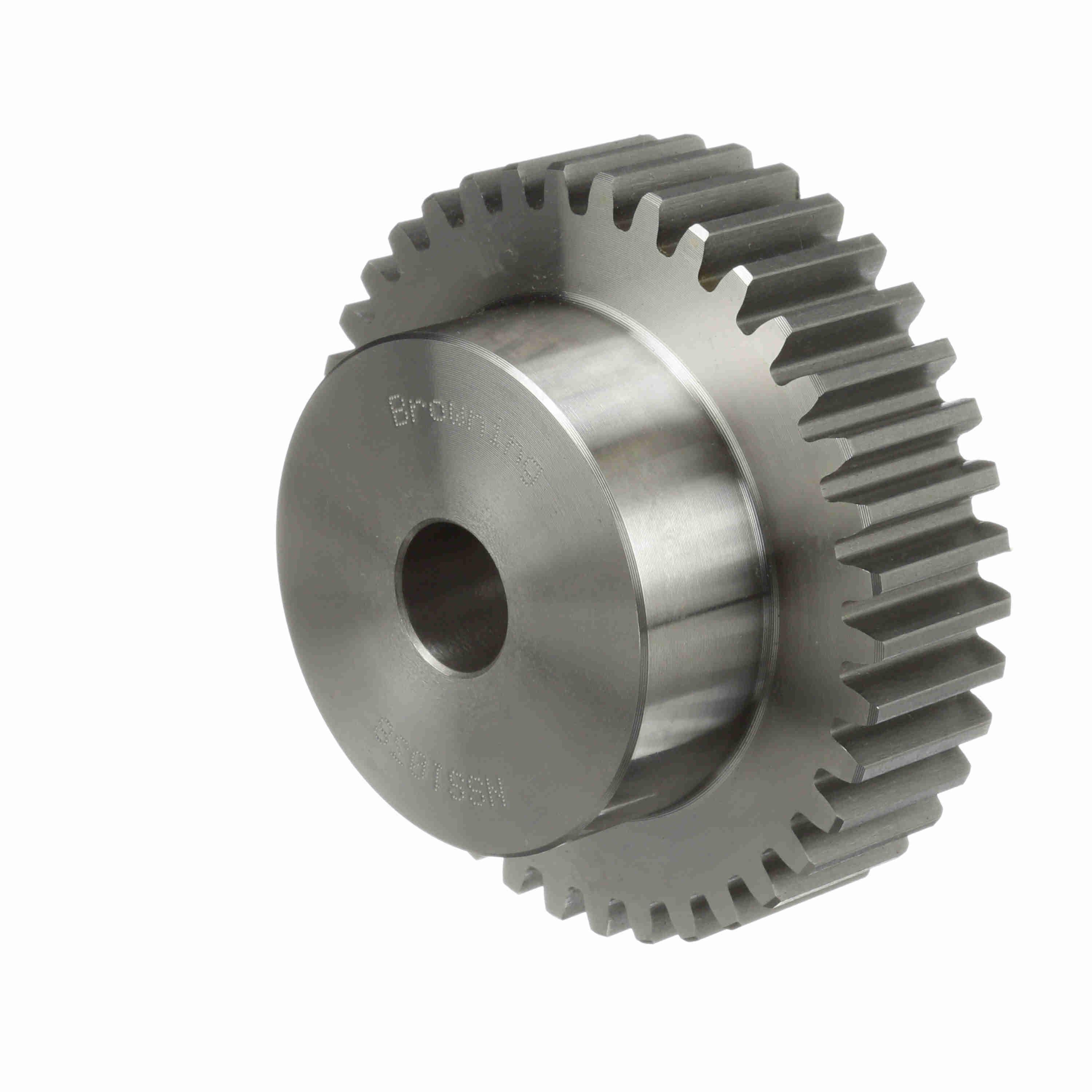

Browning® 1212000 Minimum Plain Bore Type 2 Spur Gear, 10 Diametral Pitch, 14.5 deg Pressure Angle, 1 in W Face, 38 Teeth, 3.8 in Dia Pitch, 3/4 to 1-3/4 in Dia Bore, Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289183340
-
Manufacturer Part Number1212000
-
CountryUSA
-
Face Width1 in
-
Pitch Diameter3.8 in
-
MaterialSteel
-
Pressure Angle14.5 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Type 2
-
Hub Diameter2-5/8 in
-
Hub Projection7/8 in
-
Diametral Pitch10
-
Number of Teeth38
-
Outside Diameter4 in
-
Bore Diameter3/4 to 1-3/4 in
-
Overall Length1-7/8 in
- Browning® Split-Taper® bushed spur gears are shaft ready and eliminate costly reworking of minimum bore gears
- Designed to increase output, reduce costs and avoid specials
- Minimum bore spur gears are provided from stock to allow for simple modifications
- Without hardened teeth
-
Alternative Part NumberNSS1038
-
UNSPSC31171707
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
