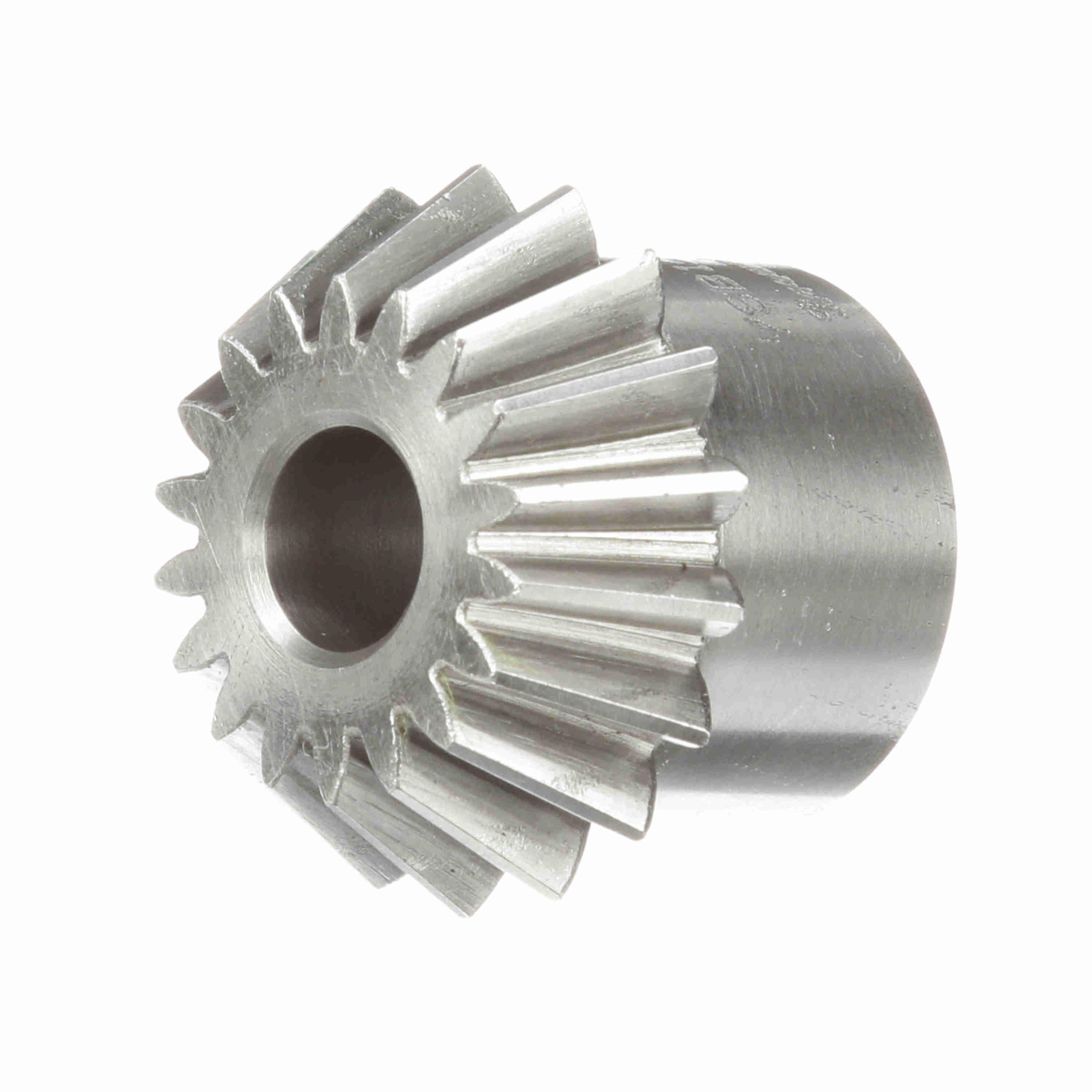

Browning® 1228030 MPB Straight Tooth Bevel Pinion Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 18 Teeth, 1-1/2 in Dia Pitch, 0.53 in W Face, 1/2 to 5/8 in Dia Bore, Steel
Browning® 1228030 MPB Straight Tooth Bevel Pinion Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 18 Teeth, 1-1/2 in Dia Pitch, 0.53 in W Face, 1/2 to 5/8 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289284726
-
Manufacturer Part Number1228030
-
CountryUSA
-
Face Width0.53 in
-
Pitch Diameter1-1/2 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio2:1
-
TypeMPB Straight Tooth
-
Hub Diameter1.313 in
-
Hub Projection13/16 in
-
Diametral Pitch12
-
Number of Teeth18
-
Bore Diameter1/2 to 5/8 in
-
Overall Length1-3/8 in
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSB12B18-20
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
