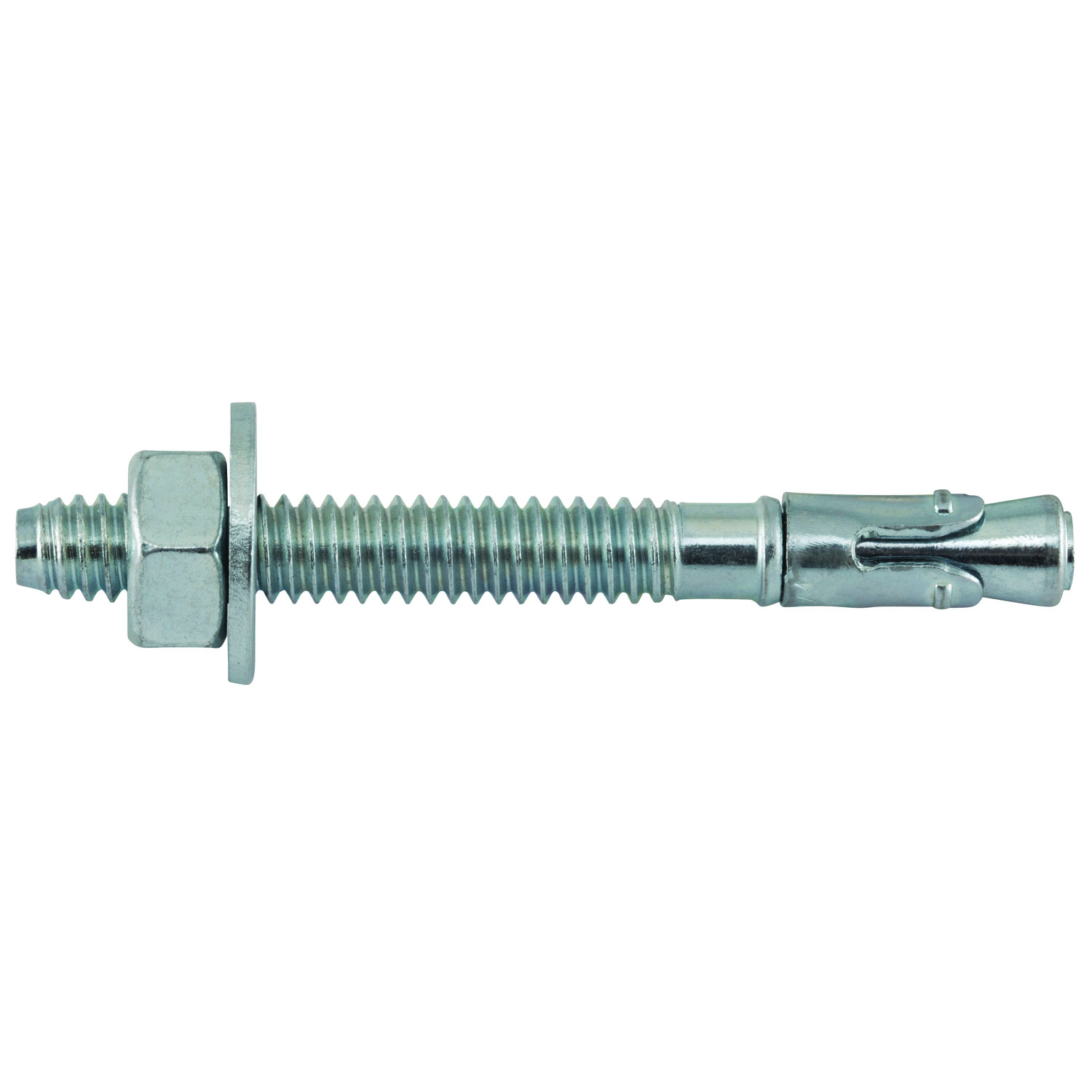

1/4" X 2-1/4" CONCRETE ANCHORS PWR7402
The Power-Stud®+ SD1 anchor is a fully threaded, torque controlled, wedge expansion anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance.
-
BrandDeWALT®
-
UPC075352775890
-
Manufacturer Part Number7402SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength1435/1660 lb
-
Thread Length1-1/4 in
-
MaterialCarbon Steel
-
Thread Size1/4-20
-
Thread TypeFully Threaded
-
Maximum Work Thickness7/8 in
-
Minimum Embedment Depth1-1/8 in
-
TypeExpansion
-
Shear Strength1255 lb
-
Diameter1/4 in
-
Overall Length2-1/4 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter
- Length ID code and identifying marking stamped on head of each anchor
| Competitor Name | Competitor Part Number |
|---|---|
| Fastenal | 2140516 |
-
UNSPSC31162102
-
Includes
-
Standards/ApprovalsICC-ES ESR-2818|ICC-ES ELC-2818|ICC-ES ESR-2966|UL Recognized|IBC 2015|IRC 2015|IBC 2012|IRC 2012|IBC 2009|IRC 2009|FM Approved|UL File No. EX1289|ACI 355.2/ASTM E 488|ICC-ES AC193|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ICC-ES AC01
-
Instruction/Installation Manual
-
Specification Sheet
