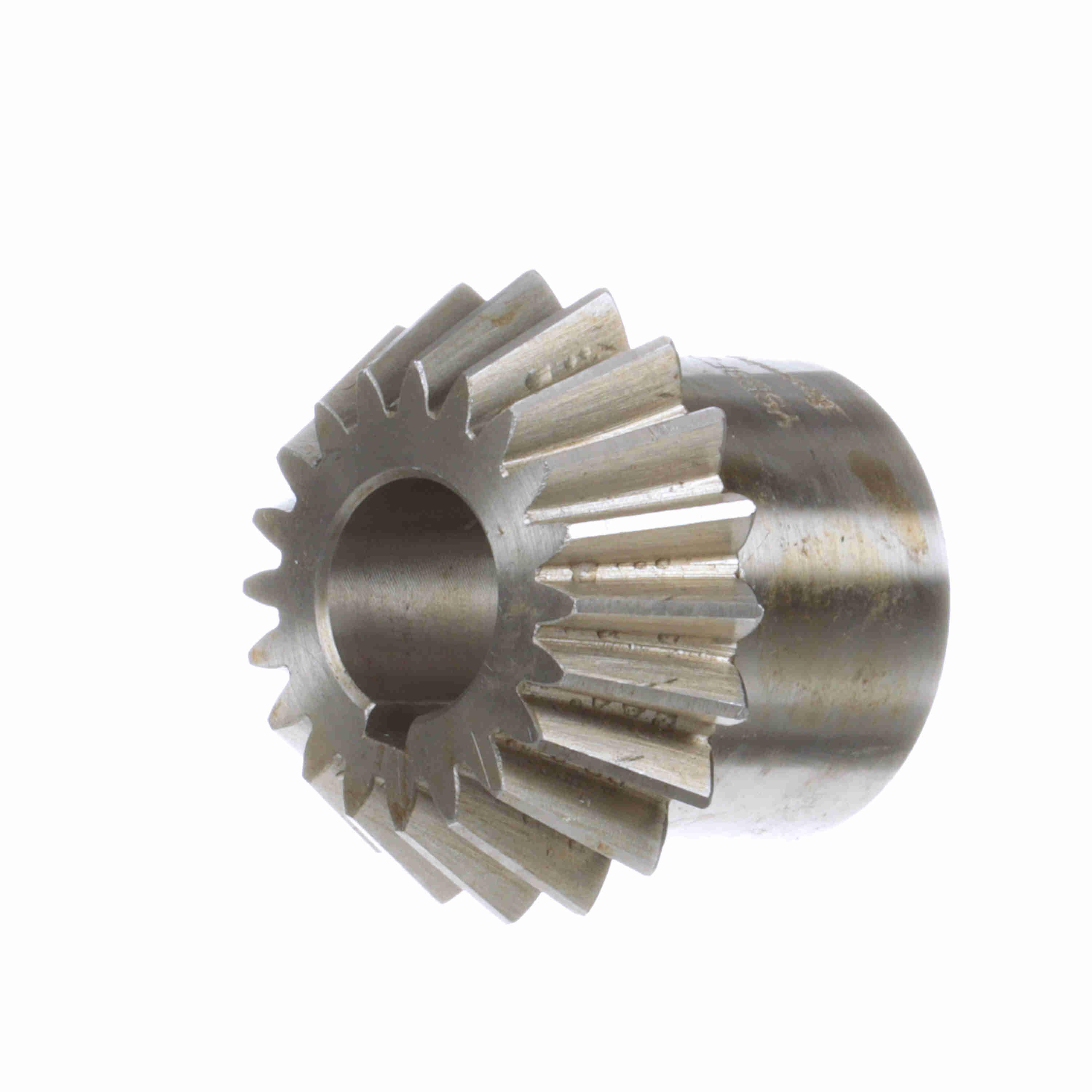

Browning® 1228634 MPB Finished Bore Straight Tooth Bevel Gear, 8 Diametral Pitch, 20 deg Pressure Angle, 20 Teeth, 2-1/2 in Dia Pitch, 0.82 in W Face, 1 in Dia Bore, Steel
Browning® 1228634 MPB Finished Bore Straight Tooth Bevel Gear, 8 Diametral Pitch, 20 deg Pressure Angle, 20 Teeth, 2-1/2 in Dia Pitch, 0.82 in W Face, 1 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289275304
-
Manufacturer Part Number1228634
-
CountryUSA
-
Face Width0.82 in
-
Pitch Diameter2-1/2 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio2:1
-
TypeMPB Finished Bore Straight Tooth
-
Hub Diameter2-1/8 in
-
Hub Projection1-13/32 in
-
Diametral Pitch8
-
Number of Teeth20
-
Bore Diameter1 in
-
Overall Length2-9/32 in
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSB8F20-20X1
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
