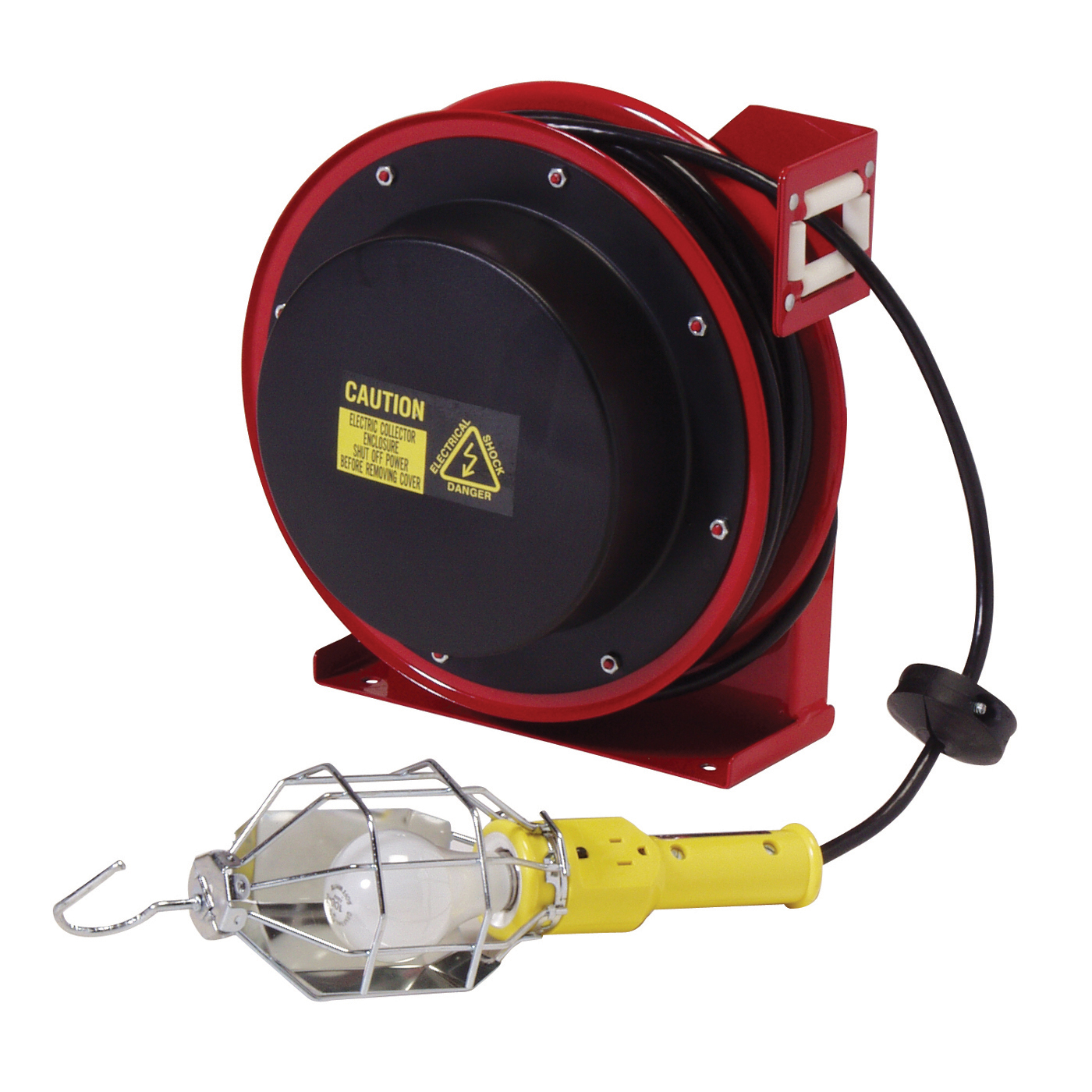

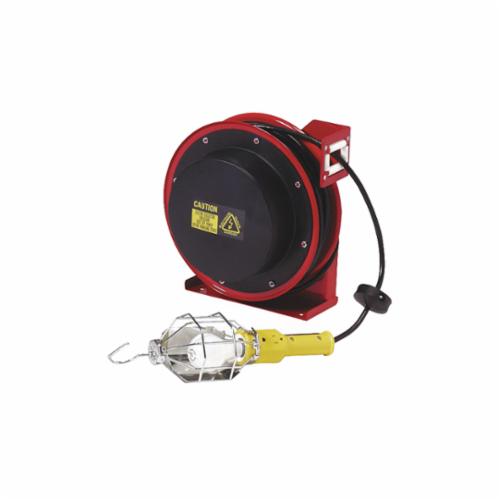

Reelcraft 50-FOOT-CORD LIGHT REELS REC L-4050-163-1
The heavy duty series 4000 cord reels are all steel construction and compact for a wide range of applications with critical space requirements. A robust collector ring assures maximum conductivity current flow. Guide arm adjusts to 2 positions.
-
BrandReelcraft®
-
UPC699567000341
-
Manufacturer Part NumberL 4050 163 1
-
CountryUSA
-
MaterialSteel
-
Receptacle TypeNEMA 5-15R
-
Reel Diameter12-5/8 in
-
Reel Mounting TypeBench/Ceiling/Wall
-
TypeHeavy Duty Retractable
-
Conductor Size16 AWG
-
Voltage Rating125 V AC
-
Cord ColorBlack
-
Cord Length50 ft
-
Amperage Rating13 A
-
SeriesL 4000
-
Number of Outlets1
-
Dimensions13-1/4 in H x 12-5/8 in W x 9-3/8 in D
-
Lamp MountingHook
-
Lamp TypeIncandescent
-
Lamp Wattage75 W
- The robotically steel base offers maximum strength and consistent quality
- Heavy duty collector ring - a robust collector ring assures maximum conductivity current flow
- Long life drive spring is declutching arbor virtually eliminates possibility of spring damage due to reverse winding
- Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- Quality finish and corrosions-resistant - individually powder coated components offer the maximum protection from premature corrosion
- 2 conductors
- Red reel
-
UNSPSC26121635
-
Package Description1/PK
-
Standards/ApprovalsCSA Certified|UL Listed|PROP65: Cancer and Reproductive harm - www.P65Warnings.ca.gov
-
