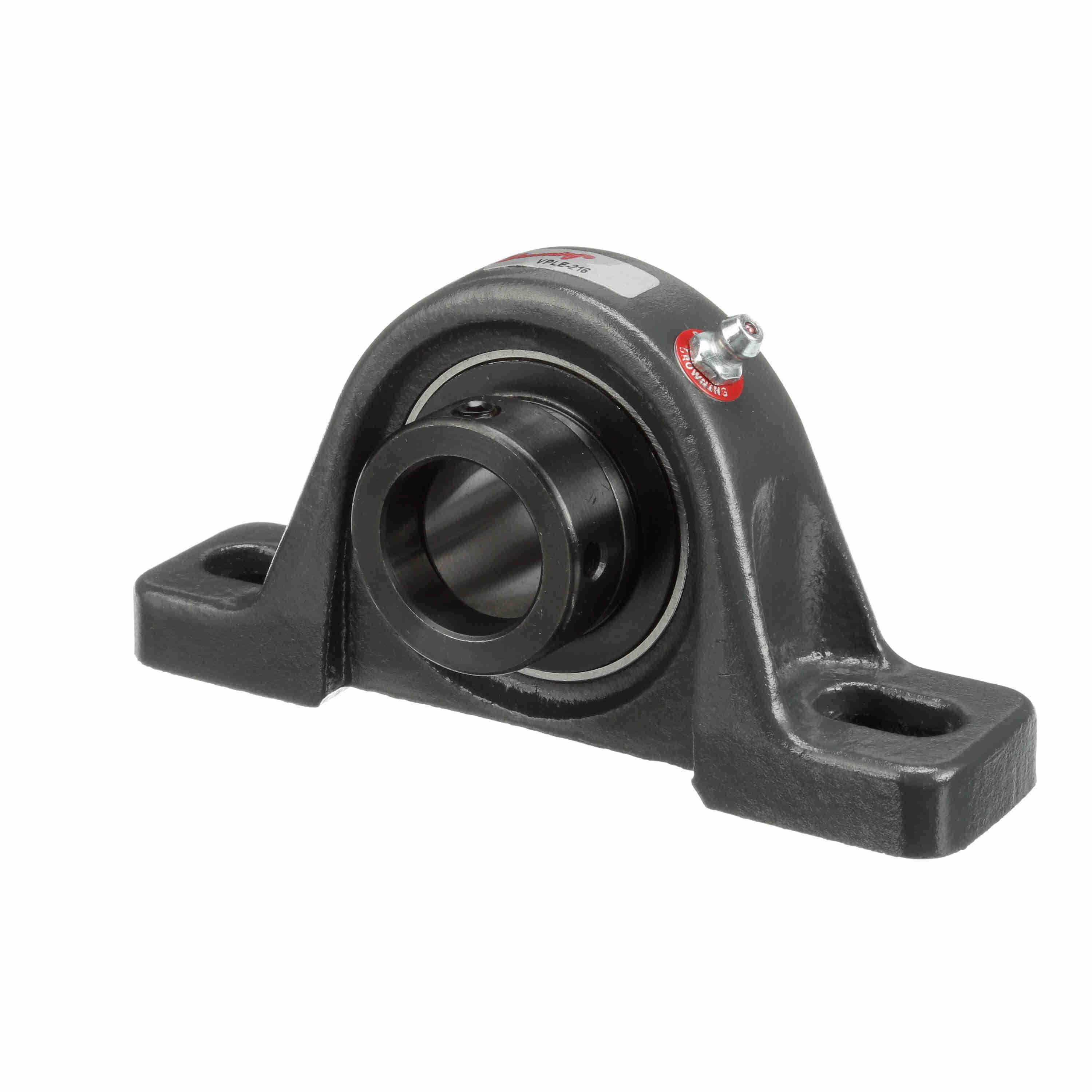

Browning® 767363 VPLE 200 Normal Duty Pillow Block Ball Bearing, 1 in Dia Bore, 3-11/16 to 4-9/16 in L Bolt Center-to-Center, 1-5/16 in Base to Bore Centerline, 5-1/2 in OAL x 2-11/16 in OAH
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric, or BOA concentric locking collar. The contact seal, with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction. Depending on your preference, these bearings are available in inch and metric bore with a wide variety of cast iron, stamped steel or rubber mount housings or specific industry solutions as illustrated on the pages to follow.
-
BrandBrowning®
-
UPC662289524174
-
Manufacturer Part Number767363
-
CountryUSA
-
Load Capacity2801 lb Dynamic/1651 lb Static
-
Locking DeviceEccentric
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed5500 rpm
-
TypeNormal Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeSingle Lip Contact with Flinger
-
SeriesVPLE 200
-
Base Width1-13/32 in
-
Base to Bore Centerline1-5/16 in
-
Bolt Center-to-Center Length3-11/16 to 4-9/16 in
-
Bore Diameter1 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height2-11/16 in
-
Overall Length5-1/2 in
- Eccentric locking design incorporates a precision eccentric collar to mate with the inner ring extension for shaft hold
- The rugged base design provides an excellent mounting foundation, this is integral to prevent sheet metal "buckling"
- Positive contact molded nitrile rubber contact seal with an auxiliary flinger element standard
- An anti-rotation rivet prevents outer ring creep or rotation, within the housing
- Zone hardened inner race
- Spherical outer diameter bearing insert
- 52100 steel insert
- Alemite fitting lubrication
- Nylon retainer
- Powder coat epoxy cast iron housing
- Eccentric locking designed for locking in direction of rotation
-
Alternative Part NumberVPLE-216
-
UNSPSC31171515
-
Package DescriptionEACH
-
Standards/ApprovalsANSI/ABMA STD 9
-
