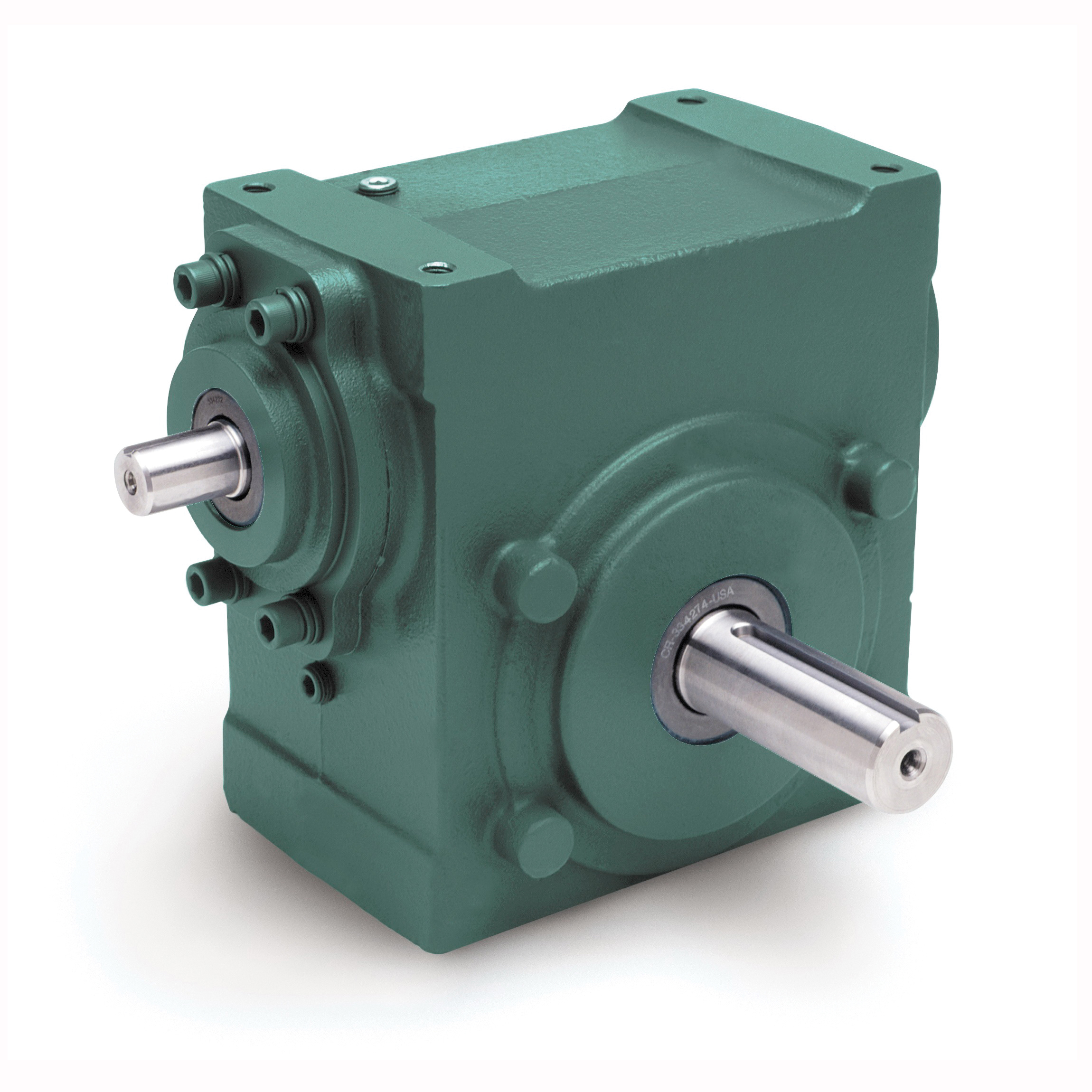

Dodge® Tigear-2® 26S25R Size 26 Standard Right Angle Worm Gear Speed Reducer, Separate Input, Solid B Shaft Output, 2.26 hp, 25:1 Gear, 70 rpm Maximum Output, 1677 in-lb Torque Rating
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475751181
-
Manufacturer Part Number26S25R
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance2.62 in
-
MaterialGray Iron
-
Torque Rating1677 in-lb
-
Gear Ratio25:1
-
TypeSize 26 Standard
-
Mounting TypeNo Base
-
Rotation TypeRight Hand
-
Horsepower2.26 hp
-
Input Maximum Speed1750 rpm
-
Input Size7/8 in
-
Input TypeSeparate
-
Dimensions10 in L x 11.26 in W x 8.36 in H
-
Keyway Size2.35 in L x 0.25 in W x 0.25 in H
-
Output Maximum Speed70 rpm
-
Output Size1-1/8 in
-
Efficiency60 to 95 %
-
Output TypeSolid B Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
Package DescriptionEACH
-
Specification Sheet
