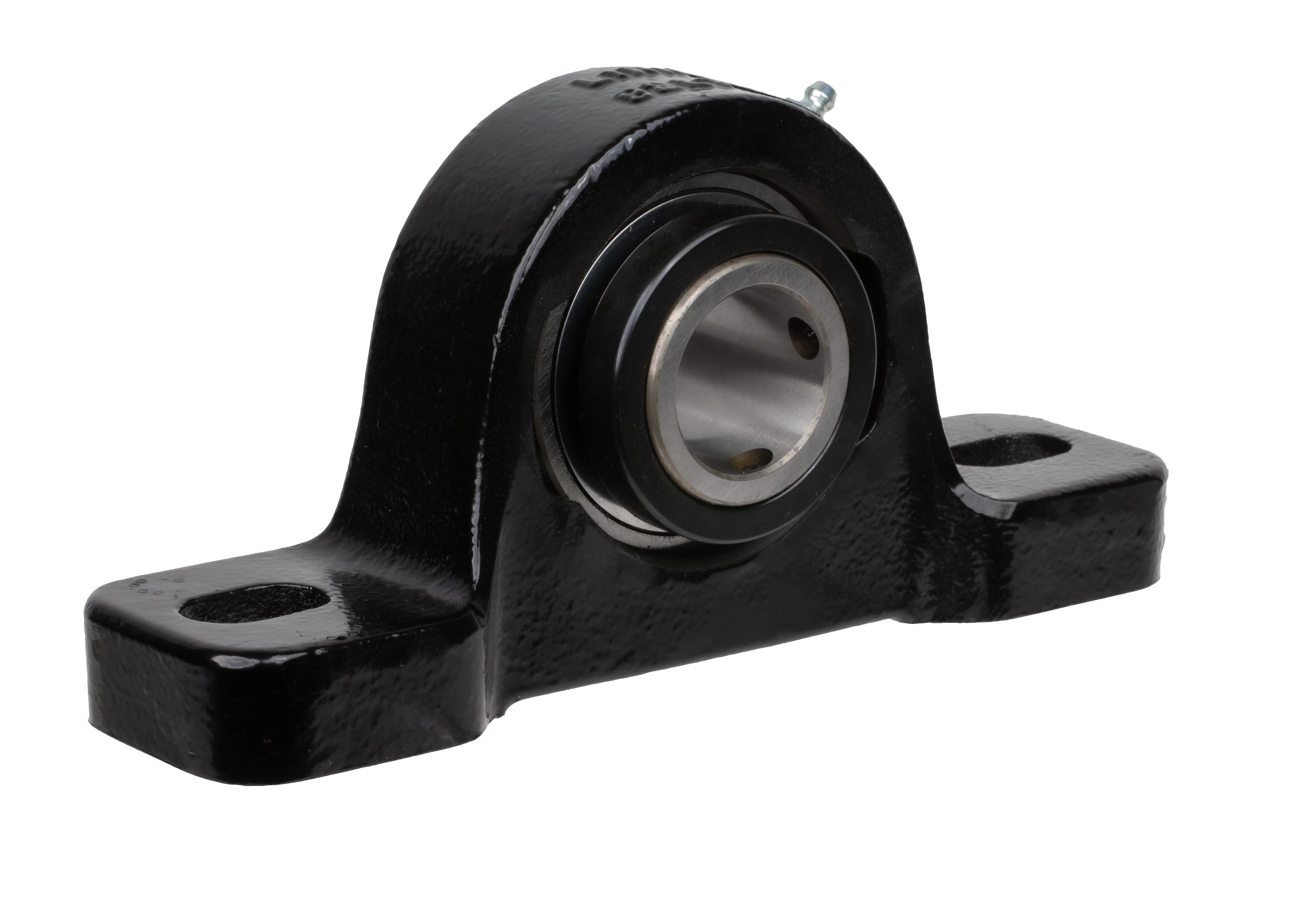

Link-Belt® 10428950 300 Heavy Duty Pillow Block Ball Bearing Unit, 1-7/16 in Dia Bore, 8-1/4 in L Bolt Center-to-Center, 2-3/4 in Base to Bore Centerline, 10-1/8 in OAL x 4-7/8 in OAH
300 series wide inner ring ball bearing units are designed for heavy duty applications requiring high capacity and high speed in a compact footprint. Manufactured from quality alloy bearing steel to precision tolerances, these bearings are used extensively on general industrial equipment, high speed fans and blowers and heavier duty power transmission and material handling equipment.
-
BrandLink-Belt®
-
UPC662327734626
-
Manufacturer Part Number10428950
-
CountryUSA|Canada
-
Load Capacity7490 lb Dynamic/4290 lb Static
-
Locking DeviceSet Screw
-
Temperature Rating225 deg F
-
FinishPowder Coated
-
MaterialCast Iron
-
Maximum Speed7550 rpm
-
TypeHeavy Duty
-
Mounting TypeTwo-Bolt Base
-
Seal TypeClearance
-
Series300
-
Base Width2-3/4 in
-
Base to Bore Centerline2-3/4 in
-
Bolt Center-to-Center Length8-1/4 in
-
Bore Diameter1-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height4-7/8 in
-
Overall Length10-1/8 in
-
Overall Width2-3/32 in
- Provides a cool running, quiet, high-speed and high-load capacity bearing
- Wide inner ring for greater contact surface between shaft and bearing
- Case carburized inner ring resists fracture under shock and heavy loads
- Heavy series precision alignable ball bearings of deep groove construction with larger balls and thicker rings for high capacity and longer life
- Compact 1-piece cast iron housings provide strength with minimum size, weight and excellent rigidity
- Spyglass optical strain sensor technology
- Positive locking system minimizes vibration
- Tapered adapter sleeve
- High backing height
- Bearing sealed unit
- Alignable and relubricatable
- Steel clad clearance seal
- Corrosion-resistant powder coating, cast iron housing and spring locking setscrew mount
- 323 size code
-
Alternative Part NumberP2U323
-
UNSPSC31171500
-
Standards/ApprovalsANSI|ABMA STD 9
-
Warranty1 Year
-
Package DescriptionEACH
-
Instruction/Installation Manual
-
Catalog
