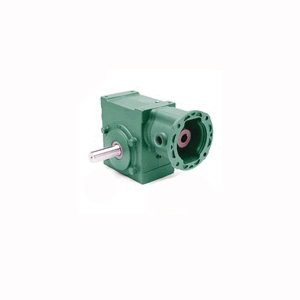

Dodge® Tigear-2® 40A20L21 Size 40 Standard Right Angle Worm Gear Speed Reducer, 3-Piece Coupled Input, Solid A Shaft Output, 7.75 hp, 20:1 Gear, 88 rpm Maximum Output, 4822 in-lb Torque Rating
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475772346
-
Manufacturer Part Number40A20L21
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance4 in
-
MaterialGray Iron
-
Torque Rating4822 in-lb
-
Gear Ratio20:1
-
TypeSize 40 Standard
-
Rotation TypeLeft Hand
-
Horsepower7.75 hp
-
Input Maximum Speed1750 rpm
-
Input Size1-1/8 in
-
Input Type3-Piece Coupled
-
Dimensions18.66 in L x 16.24 in W x 12.94 in H
-
Keyway Size3.53 in L x 0.5 in W x 0.5 in H
-
Output Maximum Speed88 rpm
-
Output Size1-7/8 in
-
Efficiency60 to 95 %
-
Output TypeSolid A Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
IncludesSeparate Reducer, (3) Coupling and Motor Adapter
-
Specification Sheet
