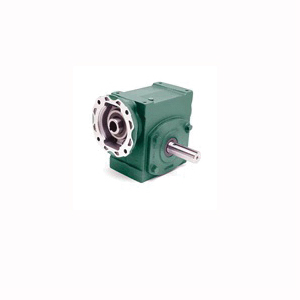

Dodge® Tigear-2® 202Q07R56 Size 20 Standard Right Angle Worm Gear Speed Reducer, Quill Input, Solid B Shaft Output, 7:1 Gear
The Tigear-2® is a right angle, single stage worm gear reducer with a rugged cast iron housing and power dense gearing design to ensure maximum reliability. Stainless Steel and the exclusive E-Z-Kleen® finish are available for tough washdown applications.
-
BrandDodge®
-
UPC782475749645
-
Manufacturer Part Number202Q07R56
-
CountryUSA
-
Lubrication TypeSynthetic Oil
-
Centre Distance2 in
-
MaterialGray Iron
-
Gear Ratio7:1
-
TypeSize 20 Standard
-
Mounting TypeNo Base
-
Rotation TypeRight Hand
-
Input Maximum Speed1750 rpm
-
Input TypeQuill
-
Dimensions8.6 in L x 9.195 in W x 7.5 in H
-
Keyway Size3/16 in L x 3/16 in W x 1-1/2 in H
-
Output Size1 in
-
Efficiency60 to 95 %
-
Output TypeSolid B Shaft
- Worm shaft machining process increases gear precision and accuracy by more than twice the norm
- Precise plunge grinding process eliminates invisible lead and assures cool running
- Higher torque capacity
- Greater efficiency
- New bronze gear material has an extremely fine grain structure for maximum durability and minimum wear
- Breather free, sealed design
-
UNSPSC26111537
-
Includes2 in Extended Length Output Shaft
-
Specification Sheet
