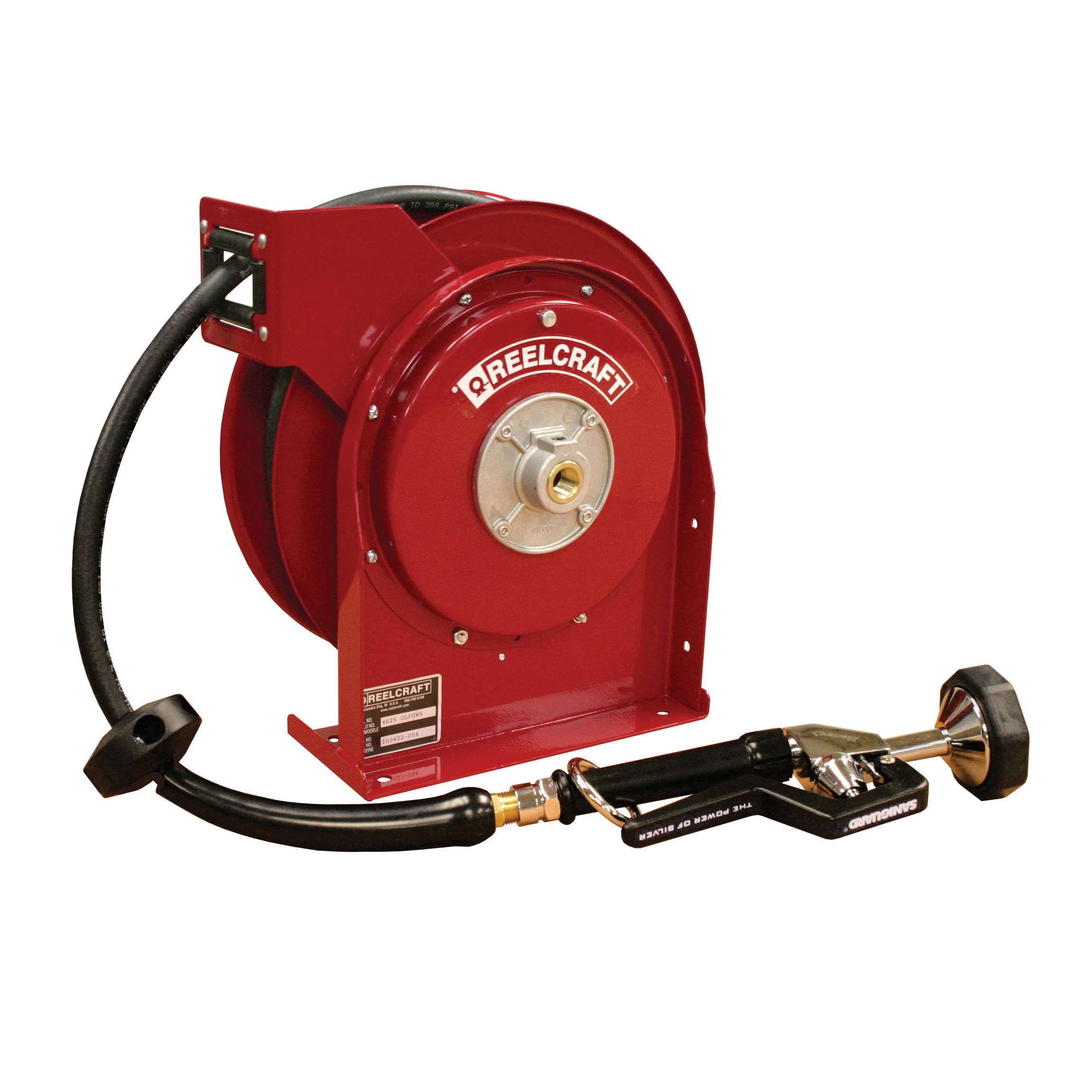

Reelcraft 3/8" X 35' PRE-WASH HOSE REELS REC 5635-OLP-SW-5
Reelcraft® 5635 OLPSW5 5000 Pre-Rinse Crafted Hose Reel, 3/8 in ID x 0.64 in OD x 35 ft L Hose, 250 psi Pressure, Domestic
-
BrandReelcraft®
-
UPC699567002697
-
Manufacturer Part Number5635 OLPSW5
-
CountryUSA
-
FinishPowder Coated
-
MaterialReinforced Steel
-
Pressure Rating250 psi
-
ColorRed
-
TypePre-Rinse Crafted
-
Series5000
-
Hose Capacity3/8 in ID x 0.64 in OD x 35 ft L
-
Dimensions13-3/4 in L x 6 in W x 14-1/2 in H
-
Domestic/ImportDomestic
-
Drive TypeSpring
- Optional 360 deg rotating hose end swivel (PN: 600248) offers 20 degrees of angular motion
- Superior latch spring design - the torsions style latch spring life far exceeds that of conventional coil springs
- Full flow stress free swivel design - the full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
- The swivel rides on a through shaft offering unparalled support and strength
- Long life drive spring - declutching arbor eliminates reverse spring winding and torsions latch spring is virtually unbreakable
- High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life
- 3/8 in hose inside diameter
- 3/8 in female NPTF inlet
- Nozzle outlet
- 210 deg F maximum temperature rating
-
UNSPSC40142022
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm www.P65Warnings.ca.gov
