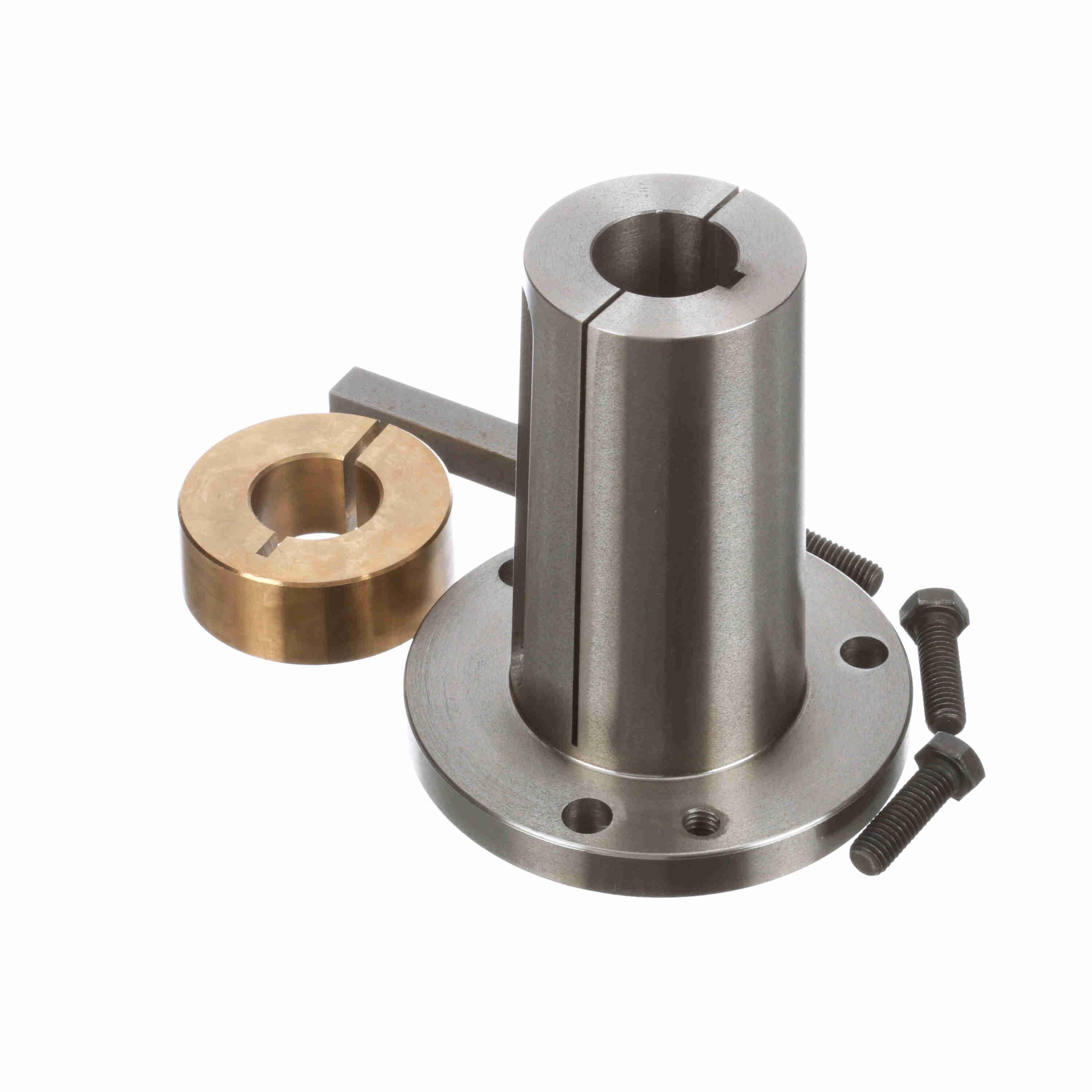

Browning® PD9001 Taper Bore Bushing Kit, 1-3/16 in ID x 2-3/16 in OD Dia Bushing, For Use With TorqTaper® Plus Size 203SMTP Shaft Mount Speed Reducer, Ductile Iron
Many accessories accompany the Browning® shaft mount reducer. These accessories are designed to provide installation flexibility, improved performance and safety.
-
BrandBrowning®
-
UPC662288910848
-
Manufacturer Part NumberPD9001
-
CountryUSA
-
Bushing Diameter1-3/16 in ID x 2-3/16 in OD
-
MaterialDuctile Iron
-
TypeTaper Bore
-
Dimensions4-1/2 in OD x 4-5/8 in L
-
Specifications4-5/8 in Length Through Bore, 4-1/2 in OD
-
Suitable For Use WithTorqTaper® Plus Size 203SMTP Shaft Mount Speed Reducer
- Self-locking taper angle creates powerful gripping forces
- External key furnished
- Exclusive Taper Bushing, Single TorqTaper Bushing installs from either side of the unit for easy on - easy off mounting, with stabilizer ring
- Standard Bearings, Commercially available Tapered Roller Bearings provide maximum overhung load capacity
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part Number203TBP103
-
UNSPSC26111524
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
