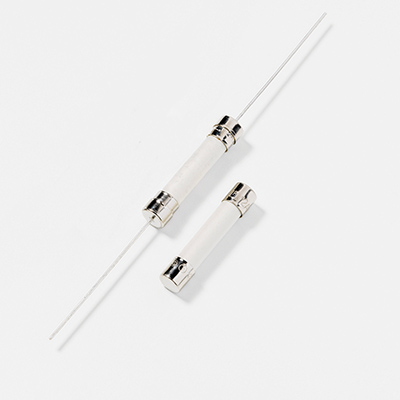

Littelfuse® Slo-Blo® H326001P Type 3AB Time Delay Cartridge Fuse, 1 A, 250 V AC, 100 A Interrupt, Cartridge Body
The 3AB Slo-Blo® fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
-
BrandLittelfuse®
-
UPC079458925258
-
Manufacturer Part NumberH326001P
-
CountryUSA|Canada
-
MaterialCeramic
-
Response Time5 to 30 s
-
TypeType 3AB Time Delay
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating1 A
-
Series326
-
Interrupt Rating100 A
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCartridge
- Lead-free
- 10 kA at 125 VAC/VDC, 100 A at 250 VAC interrupt rating
- 4 hr at 100%, 1 hr at 135%, 5 to 30 s at 200% response time
-
Alternative Part Number0326001.HXP|10701867
-
UNSPSC39121627
-
IDEA Index ID10701867
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-14|UL File No. E10480|CSA File No. 29862|CE Certified|PSE Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Owners/User Manual
-
Full Engineering Drawing
