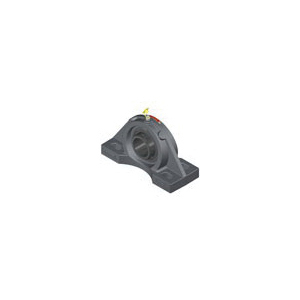

Sealmaster® 702169 MSFPD Medium Duty Pillow Block Ball Bearing Unit, 3-7/16 in Dia Bore, 10-3/4 to 12-1/4 in L Bolt Center-to-Center, 4-9/16 in Base to Bore Centerline, 15 in OAL x 9 in OAH
Sealmaster® gold mounted ball bearings feature a wide outer race insert bearing with land riding metallic retainer. The black oxide treated bearing steel insert features an exclusive lock pin and dimple system providing a direct path for lubrication into the bearing, and prevents outer ring rotation within the housing. Shaft lock is achieved by either setscrew or Skwezloc® concentric locking collar. The felt seal with flinger provide a good balance between contaminant entry, GoldPlex® HP grease loss and friction. Depending on your preference, these bearings are available in both inch and metric shaft sizes with a wide variety of cast iron, stamped steel or rubber mount housings, sealing, and lubrication options or industry specific solutions.
-
BrandSealmaster®
-
UPC662461015995
-
Manufacturer Part Number702169
-
CountryUSA
-
Load Capacity21566 lb Dynamic
-
Locking DeviceDouble Set Screw
-
Temperature Rating250 deg F
-
FinishUncoated
-
MaterialCast Iron
-
Maximum Speed2800 rpm
-
TypeMedium Duty
-
Mounting TypeFour-Bolt Base
-
Seal TypeFelt
-
SeriesMSFPD
-
Base Width5 in
-
Base to Bore Centerline4-9/16 in
-
Bolt Center-to-Center Length10-3/4 to 12-1/4 in
-
Bore Diameter3-7/16 in
-
Bore TypeRound
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height9 in
-
Overall Length15 in
-
Overall Width4-7/16 in
- Metal nameplate riveted to the housing allows for easy identification even after years of operation
- High temperature synthetic grease
- Alemite fitting lubrication
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120 deg spacing setscrew locking on both sides of ball path with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360 deg grease circulation around the rolling elements resulting in better retained and utilized lubrication
- Sealmaster exclusive lock pin and dimple for direct lubrication and anti-rotation
-
Alternative Part NumberMSFPD-55
-
UNSPSC31171504
-
Package DescriptionEACH
-
Specification Sheet
-
Instruction/Installation Manual
