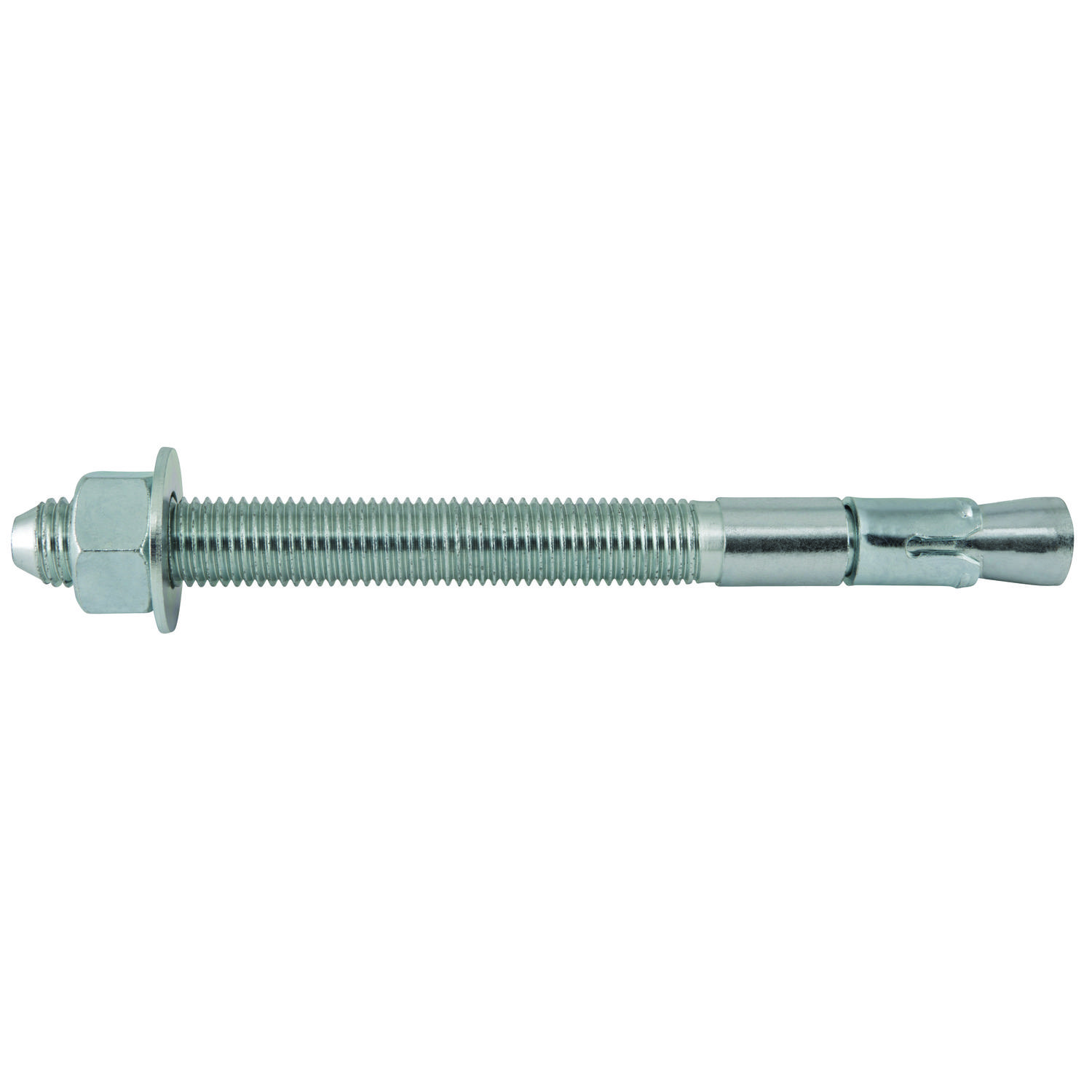

7/8" X 10" ZINC CONCRETE ANCHORS PWR7454
The Power-Stud®+ SD1 Anchor is a fully threaded, torque controlled, wedge expansion Anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck and grouted concrete masonry. The Anchor is manufactured with a zinc plated carbon steel body and expansion clip for premium performance. Nut and washer are included.
-
BrandDeWALT®
-
UPC075352781327
-
Manufacturer Part Number7454SD1-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength15125 lb
-
Thread Length6-3/4 in
-
MaterialCarbon Steel
-
Thread Size7/8-9
-
Thread TypeUNC
-
Maximum Work Thickness5-5/8 in
-
Minimum Embedment Depth4-1/2 in
-
TypeExpansion
-
Head TypeThreaded Stud
-
SeriesSD1
-
Shear Strength11690 lb
-
Diameter7/8 in
-
Drill Size7/8 in
-
Overall Length10 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit diameter same as Anchor diameter
- Length ID code and identifying marking stamped on head of each Anchor
- Ultimate load capacity: 9120 lb tensile strength when embedded in 2500 psi, 10005 lb tensile strength when embedded in 3000 psi, 11555 lb tensile strength when embedded in 4000 psi and 19470 lb tensile strength when embedded in 6000 psi compressive strength concrete
-
UNSPSC31162102
-
Includes
-
Package Description10/BX
-
Standards/Approvals2015 IBC/IRC|2012 IBC/IRC|2009 IBC/IRC|ACI 318-14 Chapter 17|ACI 318-11/08 Appendix D|ACI 355.2|ASTM E488|ICC-ES ESR-2818|ICC-ES ESR-2966|Evaluated and Qualified by an Accredited Independent Testing Laboratory|FM Approved|ICC-ES AC193|ICC-ES AC01|UL EX1289
-
