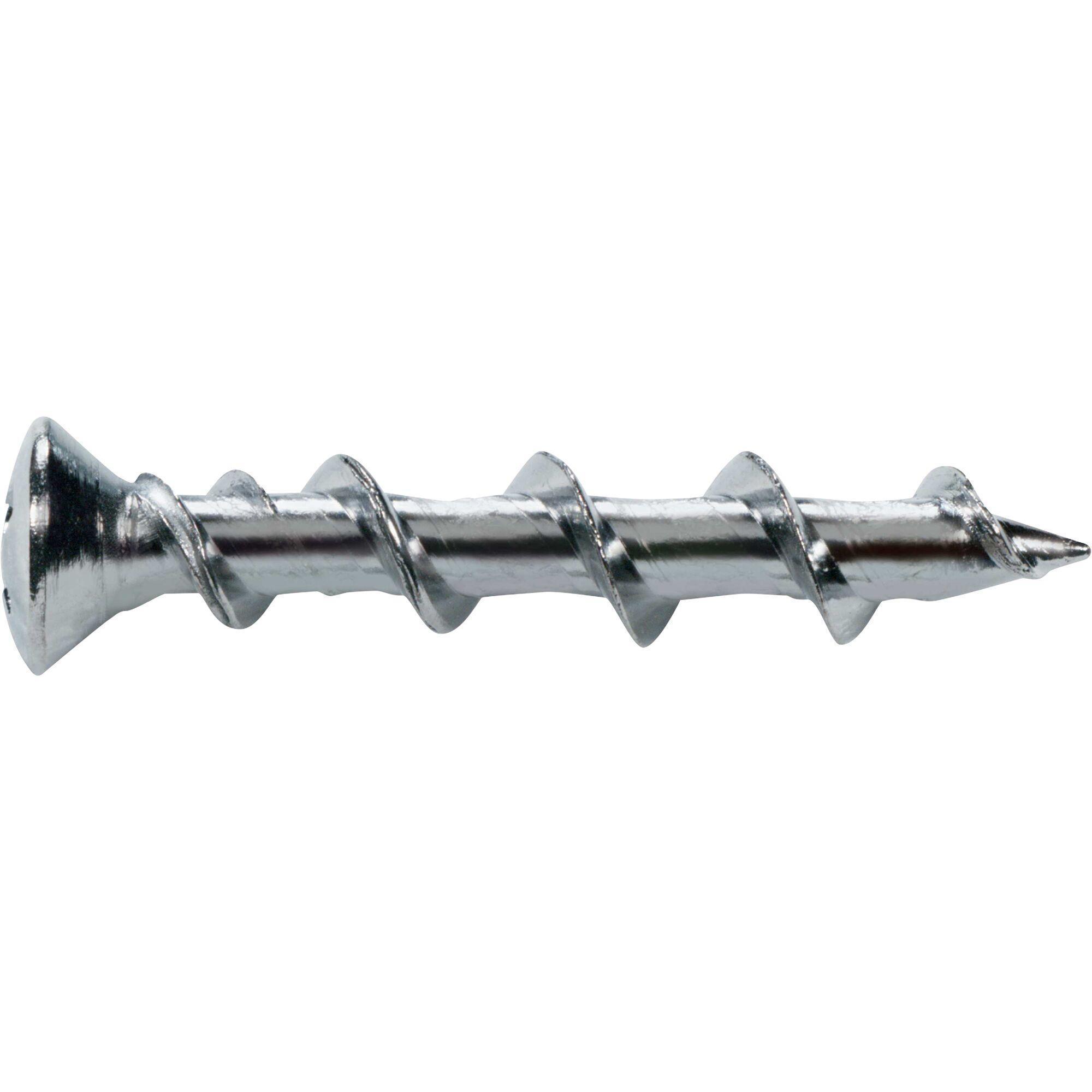

DeWALT® 02314-PWR Wall-Dog™ 1-Piece Drywall Light Duty Universal Screw Anchor, 1/4 in Dia, 1-1/4 in OAL, Oval Head Drive, Carbon Steel, 3/4 in D Min Embedment
The Wall-Dog™ is an all steel, one-piece screw anchor, which features high profile threads for easy fastening into wallboard and other masonry base materials. The deep cutting, corkscrew-like threads provide for smooth entry and a powerful hold. When removed, the Wall-Dog™ leaves a much smaller hole than toggles or other systems. For aesthetic appearances, the Wall-Dog™ is available in two color finishes: white and chrome; and in two head styles: pan and oval. For fastening into wallboard or wood, no pre-drilling is required - the anchor is inserted through the fixture and screwed in with an ordinary Phillips® screwdriver. Fastening into concrete, hollow or grout-filled concrete masonry, brick and plaster requires a pre-drilled hole using a 3/16 in ANSI bit.
-
BrandDeWALT®
-
UPC075352023144
-
Manufacturer Part Number02314-PWR
-
CountryUSA
-
FinishDecorative Polished Chrome
-
MaterialCarbon Steel
-
Thread TypeCorkscrew
-
Maximum Work Thickness1/2 in
-
Minimum Embedment Depth3/4 in
-
Type1-Piece Drywall Light Duty Universal
-

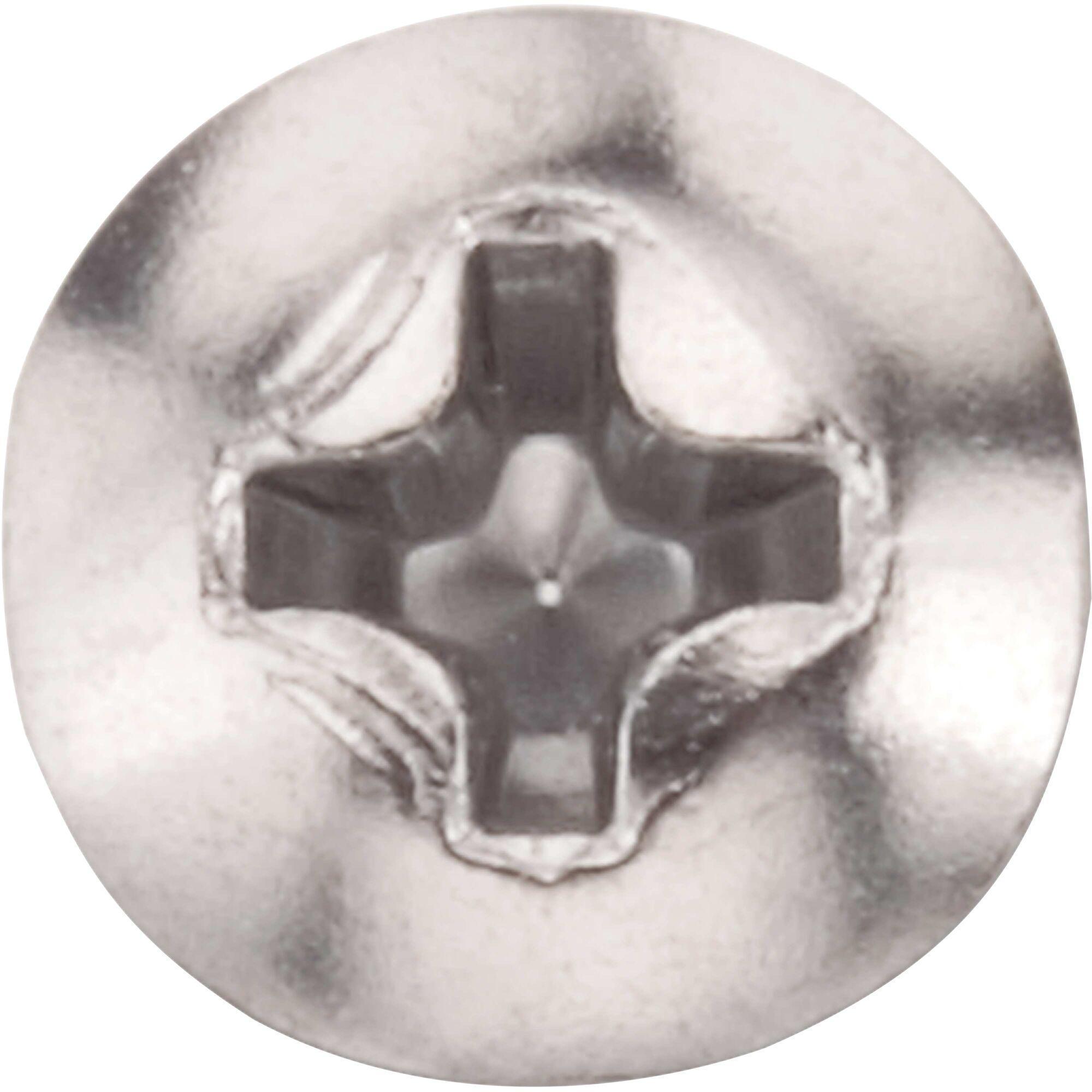

Head Drive TypeOval
-
Head Size#8
-
Applicable MaterialsNormal Weight Concrete/Grout Filled Concrete Masonry/Hollow Concrete Masonry/Brick Masonry/Wallboard/Plywood/Plaster
-
SeriesWall-Dog™
-
Diameter1/4 in
-
Drill Size3/16 in
-
Overall Length1-1/4 in
- Installs in a variety of base materials
- Installs directly through fixtures into wallboard - no second step or hole spotting required
- When removed the Wall-Dog™ leaves a much smaller hole than toggles or other systems
- Thread design prevents spinning and stripping
- Heat treated point penetrates wood studs and thin metal
- Can be easily backed out of hole
- Several finished head styles to match application
-
UNSPSC31162101
-
Standards/ApprovalsAISI 1018
-
Specification Sheet
