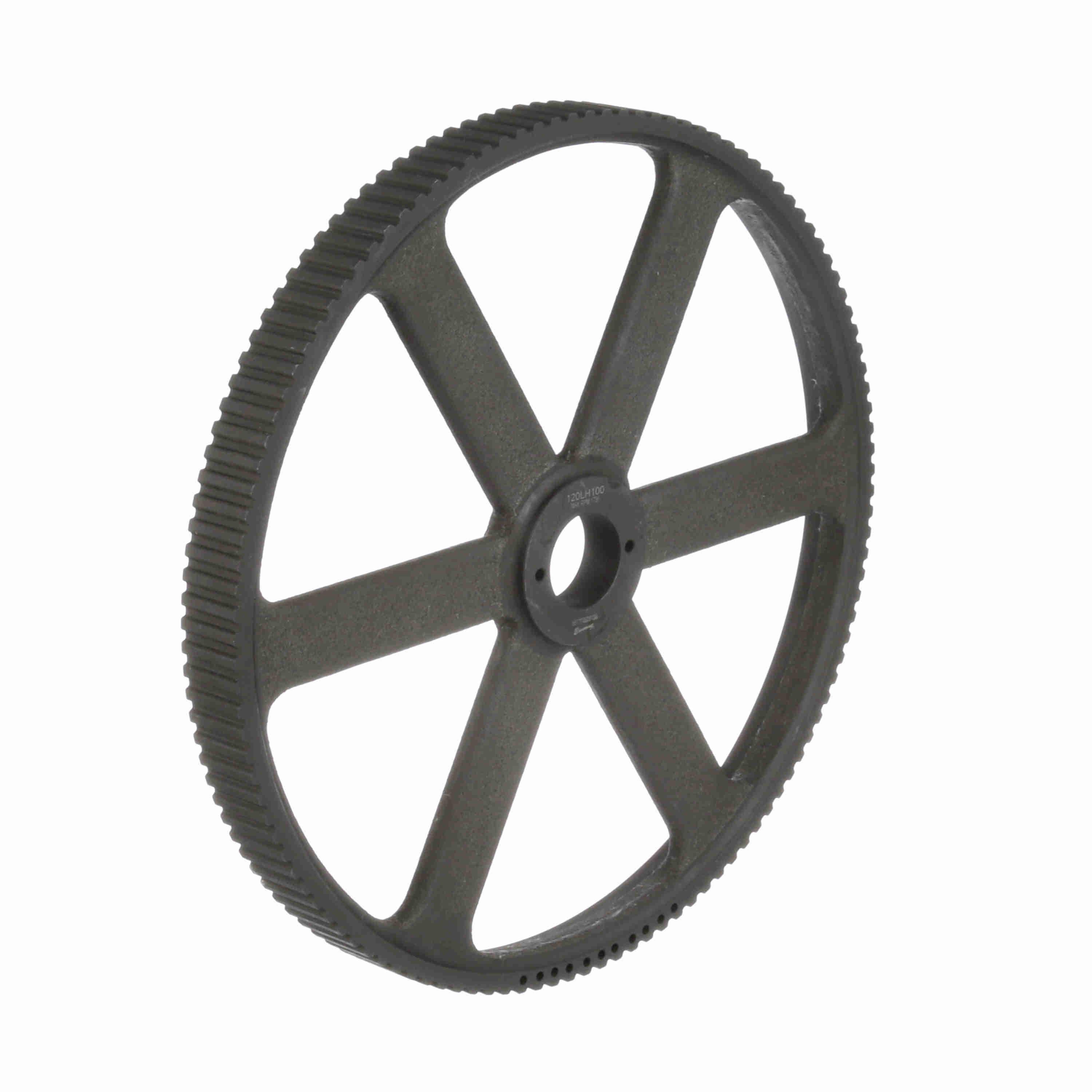

Browning® Gearbelt® 1056225 Type 17 Synchronous Timing Pulley, 3/8 to 1-1/2 in Split Taper Bore, 14.294 in OD, 120 Grooves, 14.324 in Dia Pitch, 3/4 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289163168
-
Manufacturer Part Number1056225
-
CountryUSA
-
Face Width3/4 in
-
Bushing TypeH
-
Pitch3/8 in
-
Pitch Diameter14.324 in
-
TypeType 17
-
Hub Diameter2-1/2 in
-
Hub Projection7/16 in
-
Number of Grooves120
-
Outside Diameter14.294 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-1/2 in
-
Suitable For Use With1/2 in W L050 Type Belt
- Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
- Without Flange
-
Alternative Part Number120LH050
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
