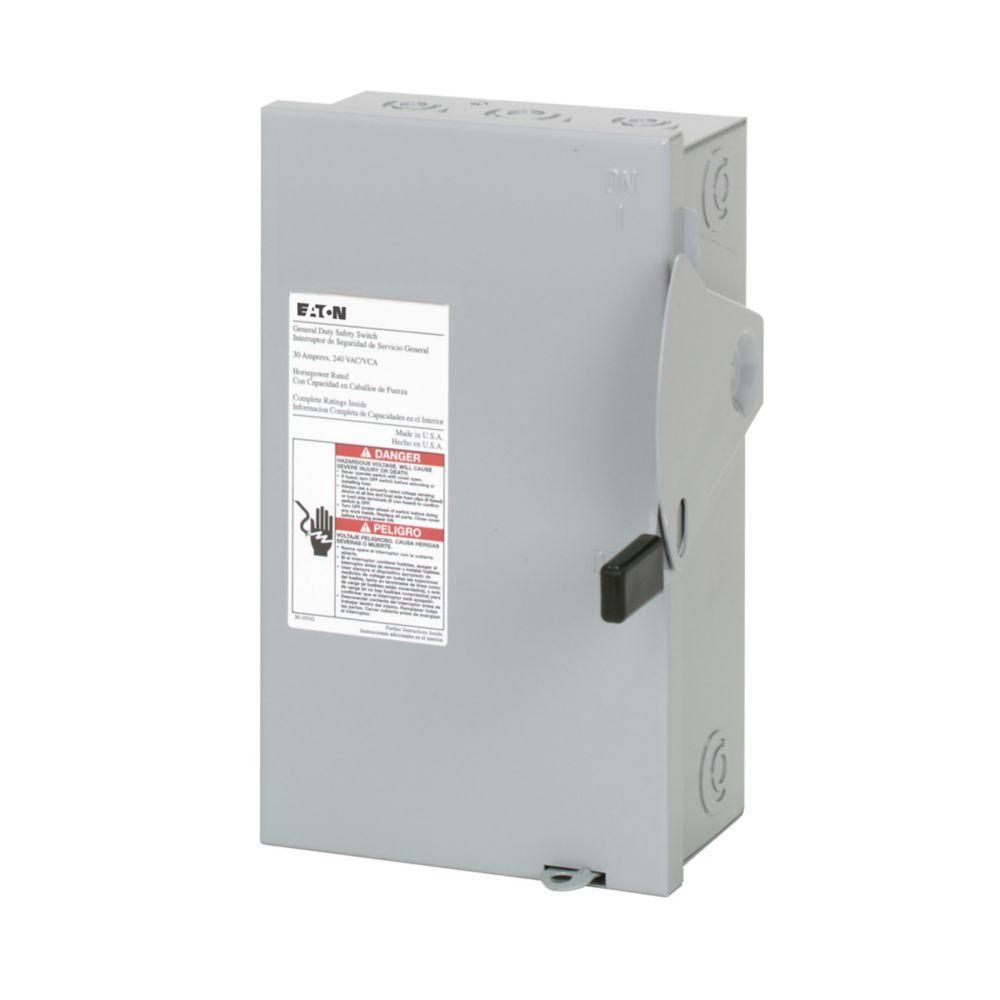

EATON DG221NGB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartidge) and non-fusible switches are available.
-
BrandEATON
-
UPC782113120171
-
Manufacturer Part NumberDG221NGB
-
CountryUSA
-
FinishPainted
-
MaterialSteel
-
TypeCartridge Fusible General Duty
-
Contact FormDPST
-
Mounting TypeSurface
-
Voltage Rating240 V AC
-
Amperage Rating30 A
-
SeriesDG Series
-
Horsepower1/2 to 3 hp, 3 to 7-1/2 hp
-
Number of Poles2
-
Dimensions5.73 in L x 6.1 in W x 6.5 in H
-
Number of Wires3
-
Enclosure TypeNEMA 1
-
Phase1/3
- Suitable for service entrance applications unless otherwise noted
- Horsepower rated
- fusible and non-fusible ratings
- Maintains lock out tag out (LOTO) capability
- Visible ON/OFF indication
- Ample wire bending space provides for easier installation
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
| Cross-Reference Number |
|---|
| 522768 |
-
Alternative Part Number7337078
-
UNSPSC39122205
-
IDEA Index ID7337078
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,NEC 230.62 (C) Compliant Barrier
-
Catalog
-
Specification Sheet
