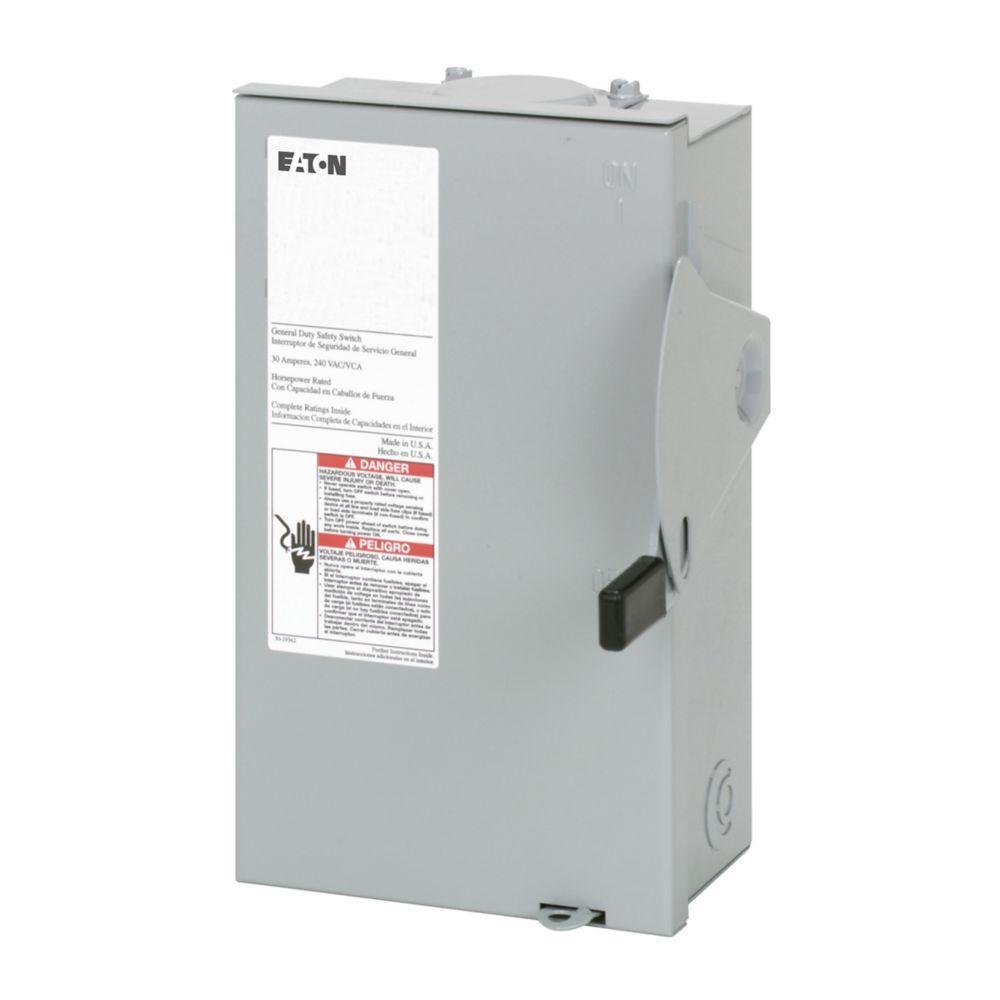

EATON DG221NRB DG Series Cartridge Fusible General Duty Safety Switch, 240 V AC, 30 A, 1/2 to 3 hp, 3 to 7-1/2 hp, DPST Contact, 2 Poles
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartidge) and non-fusible switches are available.
-
BrandEATON
-
UPC782113120317
-
Manufacturer Part NumberDG221NRB
-
CountryUSA
-
FinishGalvanized/Painted
-
MaterialSteel
-
TypeCartridge Fusible General Duty
-
Contact FormDPST
-
Mounting TypeSurface
-
Voltage Rating240 V AC
-
Amperage Rating30 A
-
SeriesDG Series
-
Horsepower1/2 to 3 hp, 3 to 7-1/2 hp
-
Number of Poles2
-
Dimensions5.73 in L x 6.1 in W x 6.25 in H
-
Number of Wires3
-
Enclosure TypeNEMA 3R
-
Phase1/3
- Ample wire bending space provides for easier installation
- Visible double-break quick make, Quick-break rotary blade mechanism
- Side opening door on all enclosures
- Mechanically interlocked cover to prevent easy access when the switch is in the ON position
- With class R fuses, switches may be used on systems capable of delivering 100000 A rms symmetrical
- Clearly visible and accessible neutral where applicable
- Visible ON/OFF indications
- Tangential knockouts on 30 to 60 A designs
- Ample wiring space
- Double padlocking capability on 30 to 100 A
- Triple padlocking capability on 200 to 600 A
- Additional door locking capability
- Tri-lingual nameplates
- Design for series B general duty 30 to 100 A
| Cross-Reference Number |
|---|
| 522900 |
-
Alternative Part Number7337112
-
UNSPSC39122205
-
IDEA Index ID7337112
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,NEC 230.62 (C) Compliant Barrier
-
Specification Sheet
-
Owners/User Manual
