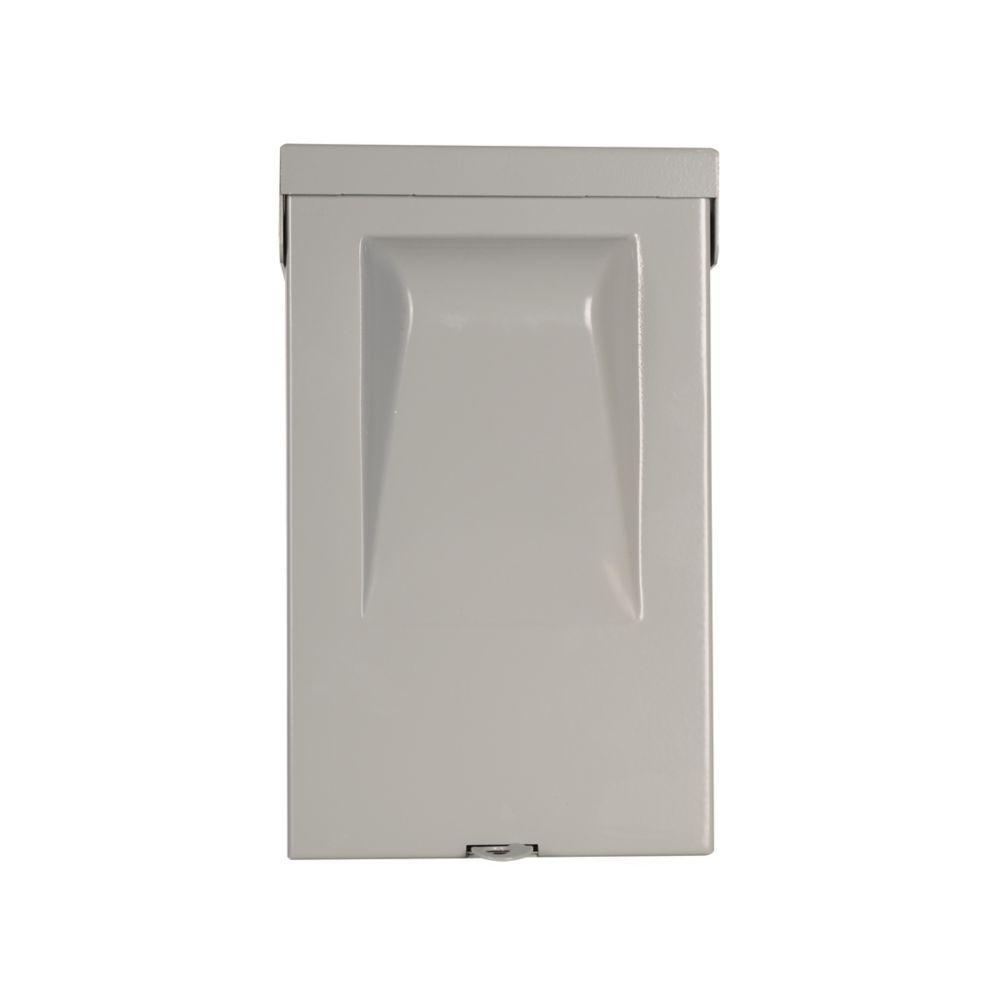

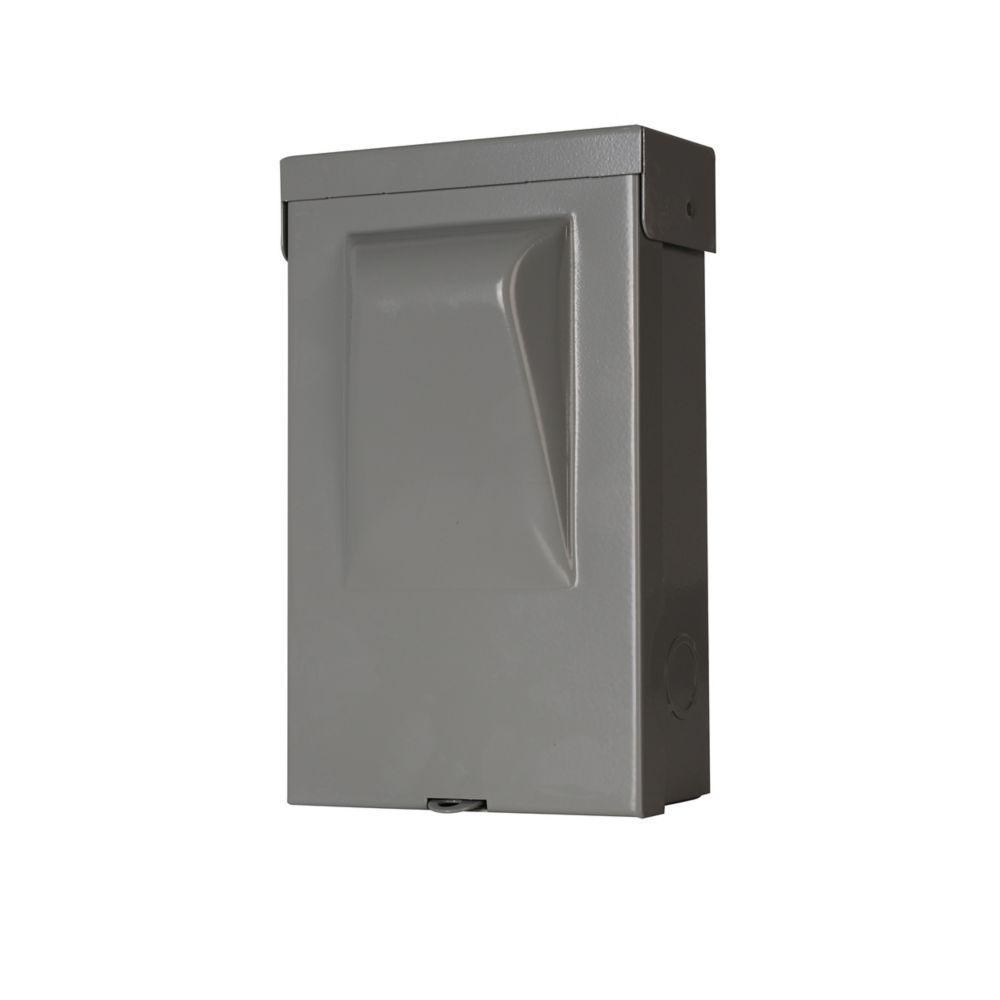

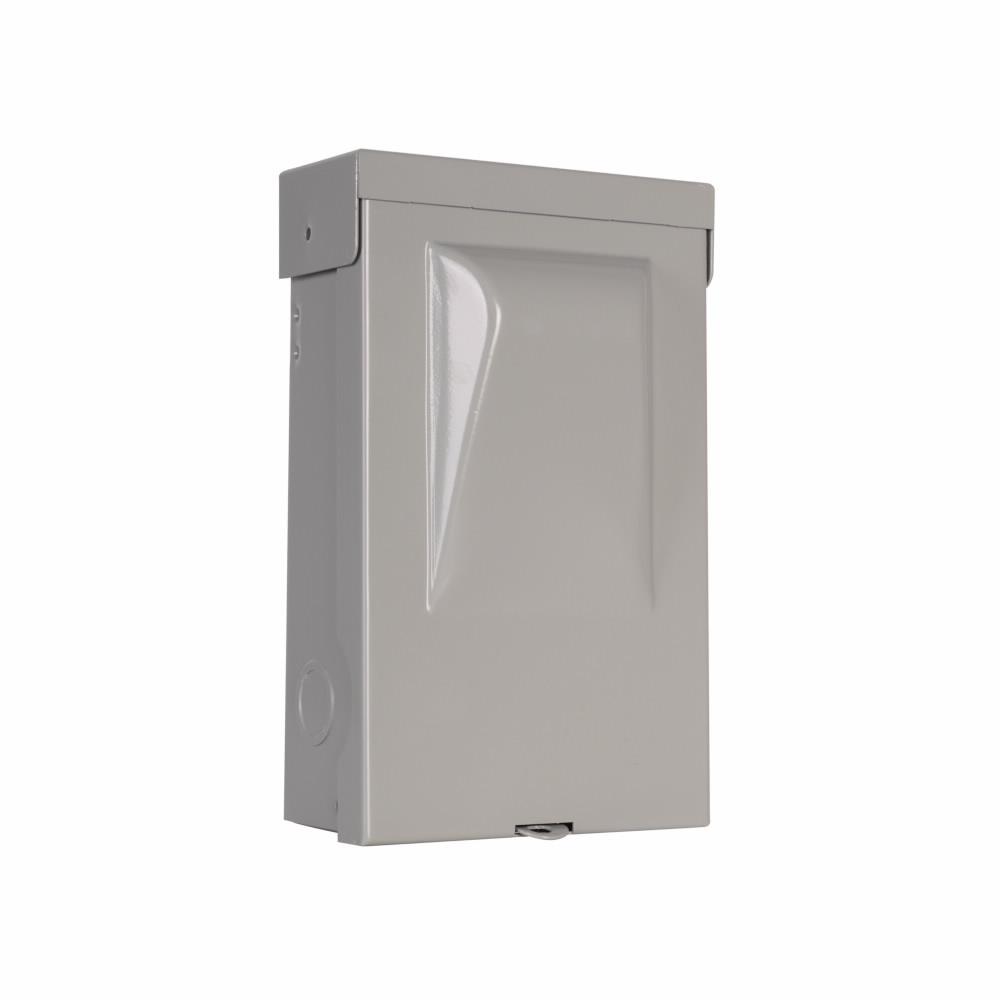

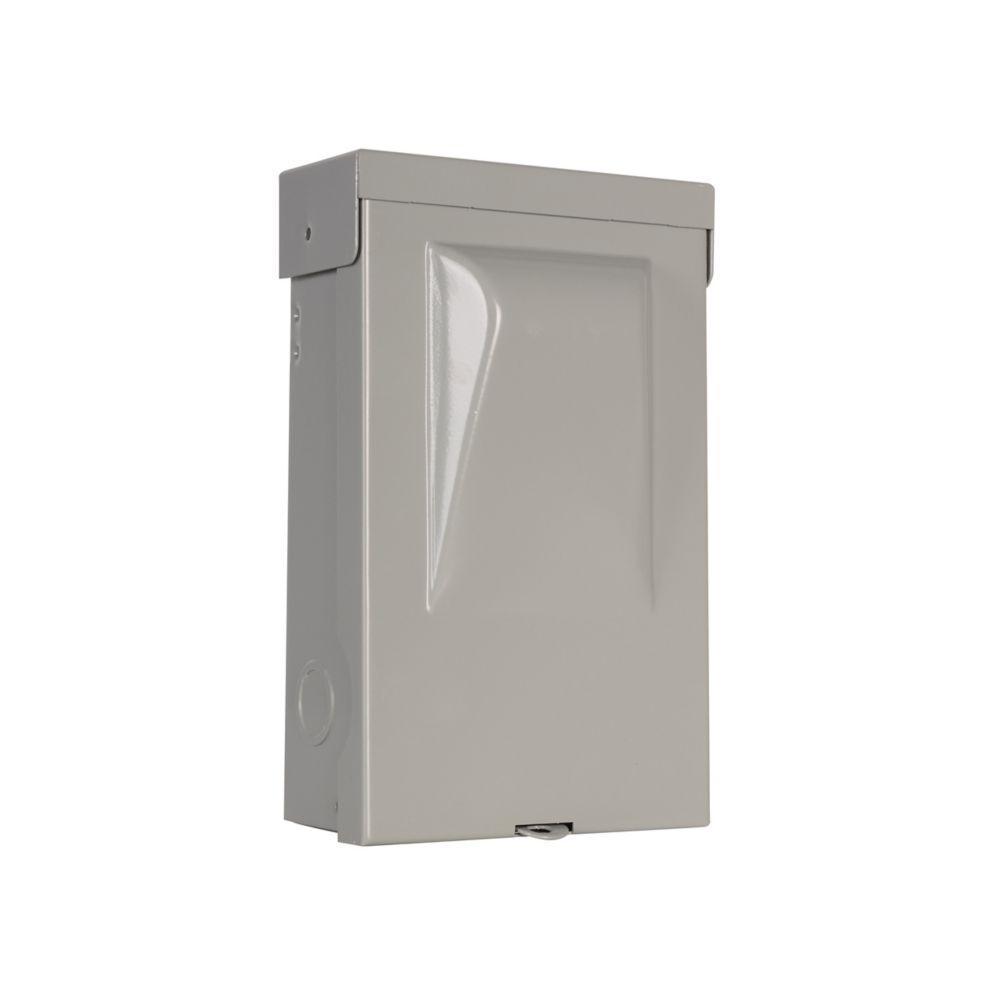

EATON DPF222RP Fused Pullout Air Conditioning Disconnect, 120/240 V AC, 60 A, 3 hp, 10 hp, 2 Poles
Eaton offers the industry’s most complete line of ACDs. Devices are available in fused, non-fused, molded case switch or three phase designs, and in metal or plastic enclosures for all application. An Air Conditioning Disconnect (ACD) provides an installer or repair personnel with a visible disconnecting means while performing maintenance on an air conditioning unit.
-
BrandEATON
-
UPC782114103227
-
Manufacturer Part NumberDPF222RP
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
FinishHot Dipped Galvanized
-
MaterialSteel
-
ColorGray
-
TypeFused Pullout
-
Voltage Rating120/240 V AC
-
Amperage Rating60 A
-
Horsepower3 hp, 10 hp
-
Short Circuit Current Rating10 kA
-
Number of Poles2
-
Dimensions5.4 in L x 3.15 in W x 8.7 in H
-
Number of Wires2
-
Enclosure TypeNEMA 3R
-
Phase1
- Air conditioning disconnects (ACD) are located between a load center (distribution panel) and an air conditioner
- ACD provide a visible disconnecting means when performing maintenance and are commonly referred to as disconnects, pullouts or air conditioning switches
- ON/OFF control provided by a Pull-out handle
- Pull-out handle can be conveniently stored in the compartment in the Off position, helping to prevent the handle from being misplaced

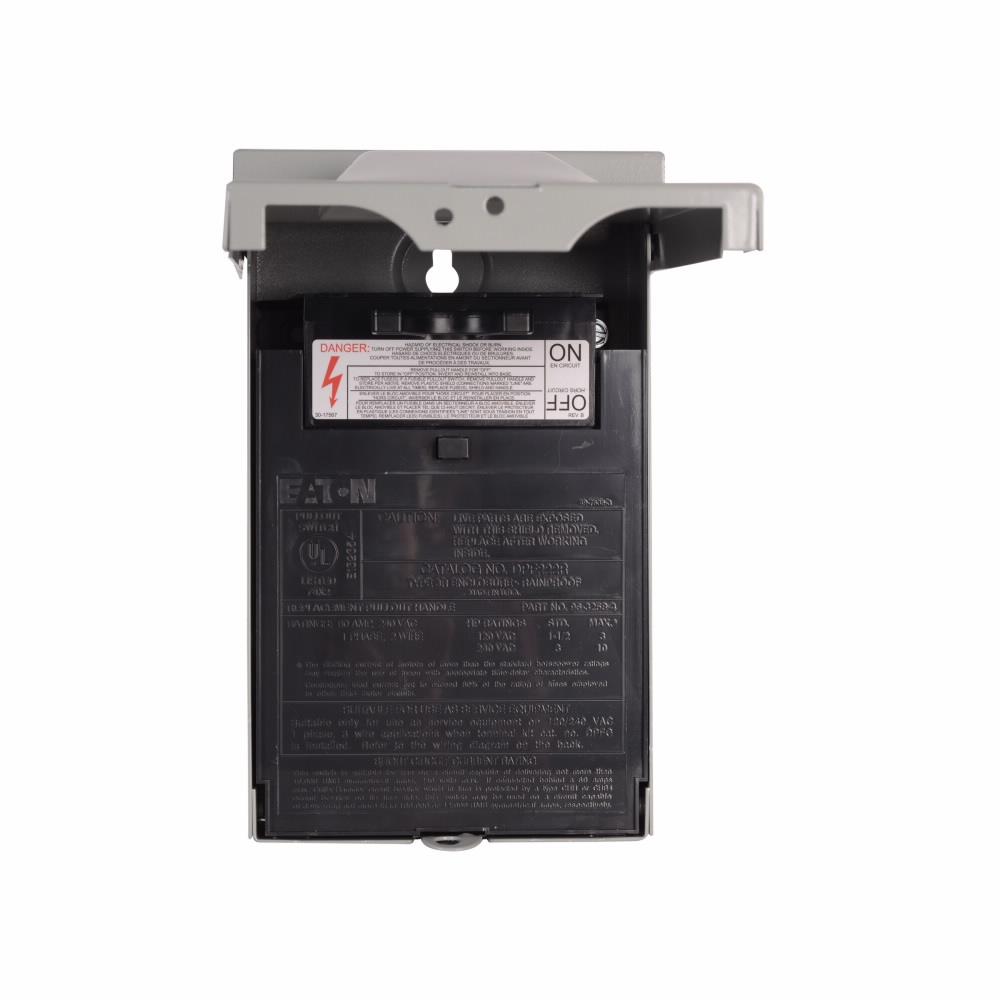

- Protective shield cannot be removed until the pullout handle is removed, disconnecting the power
- 3 hp at 120 VAC and 10 hp at 240 VAC
- 14 to 3 AWG copper/aluminum wire
- Retail package
-
Alternative Part Number7369515
-
UNSPSC39121309
-
IDEA Index ID7369515
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA Certified
-
Warranty1 year
-
Specification Sheet
-
Owners/User Manual
