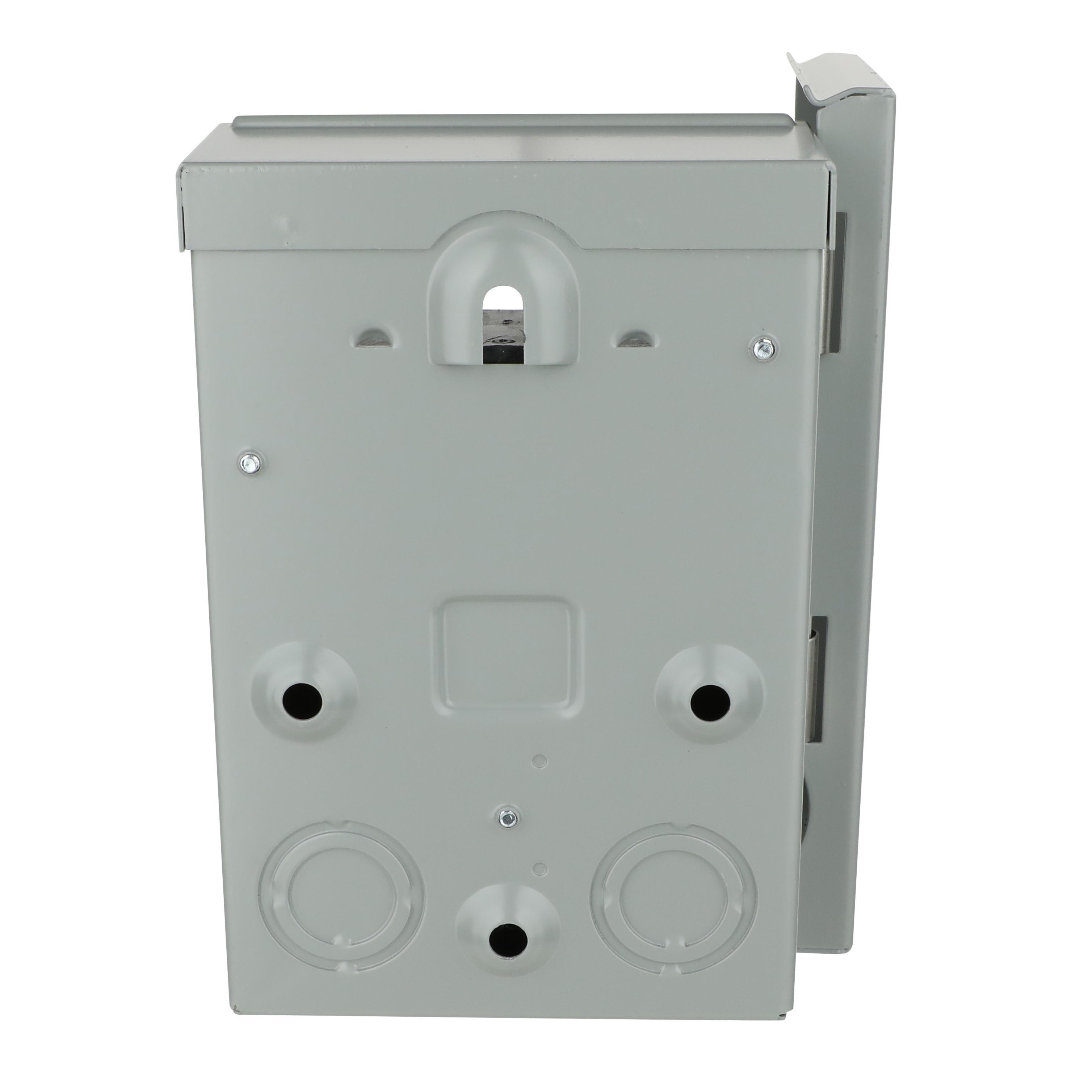

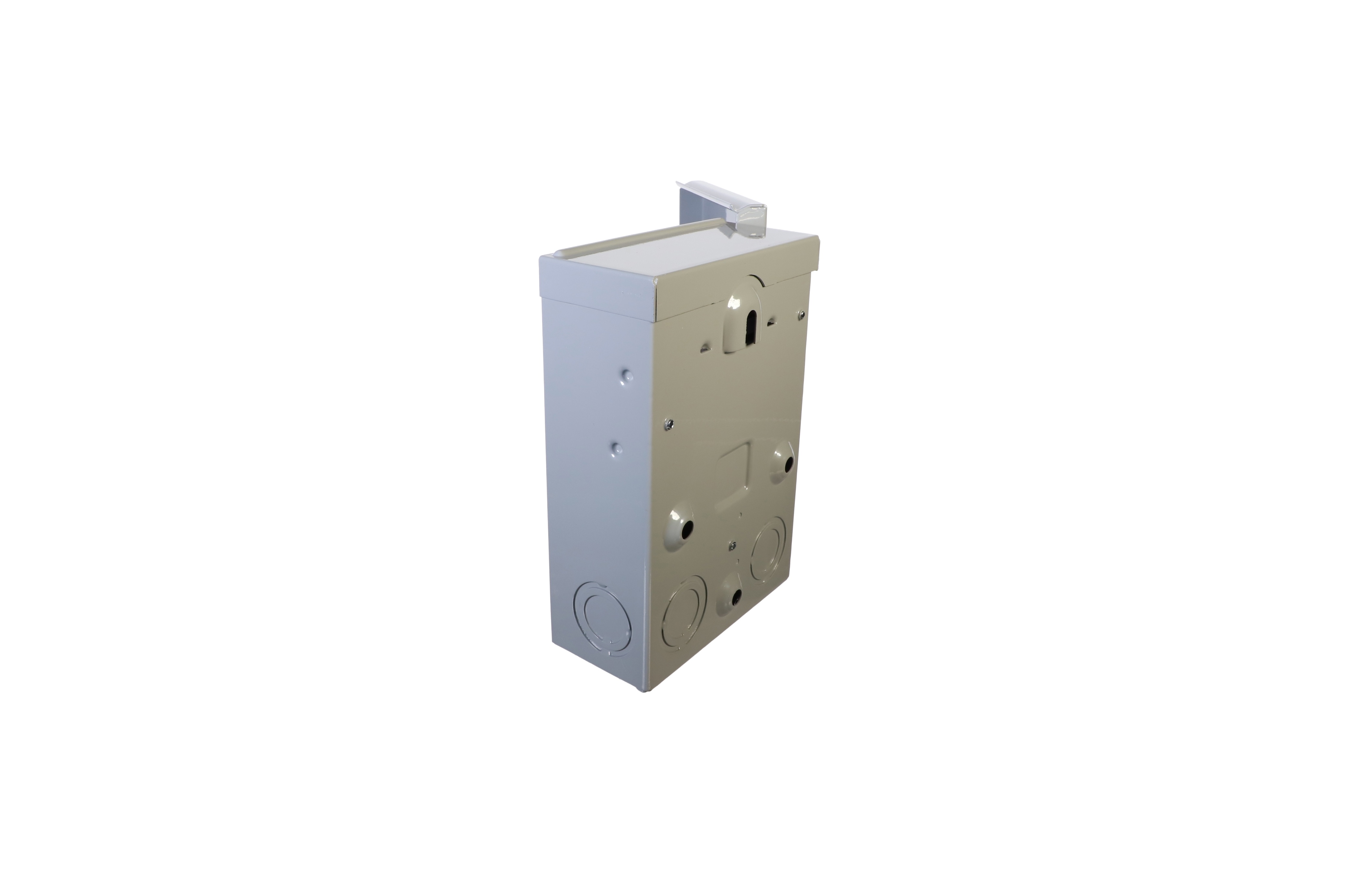

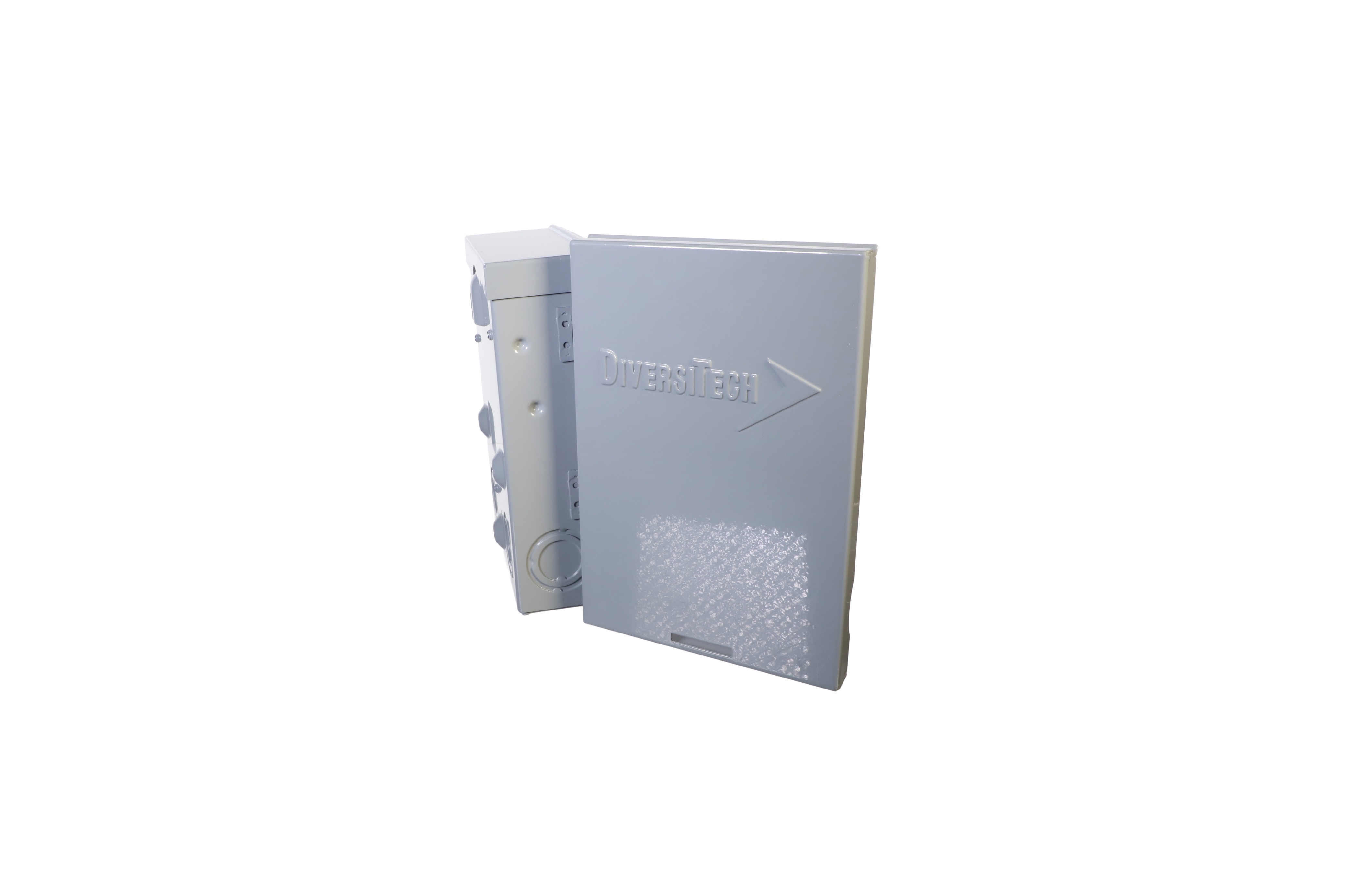

Diversitech DDS-60U Pull-Out Non-Fused Disconnect Switch, 240 VAC, 60 A, 10 hp

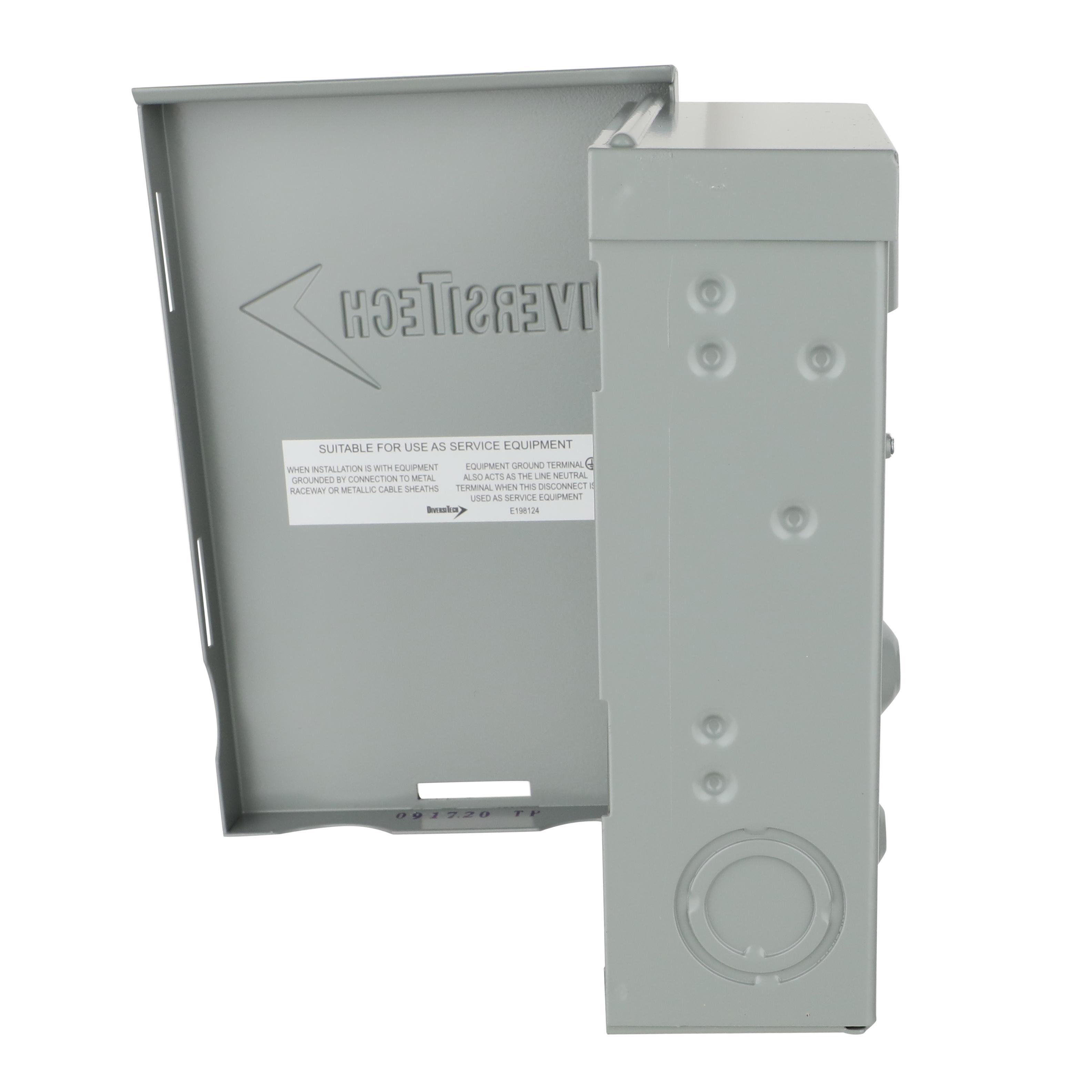

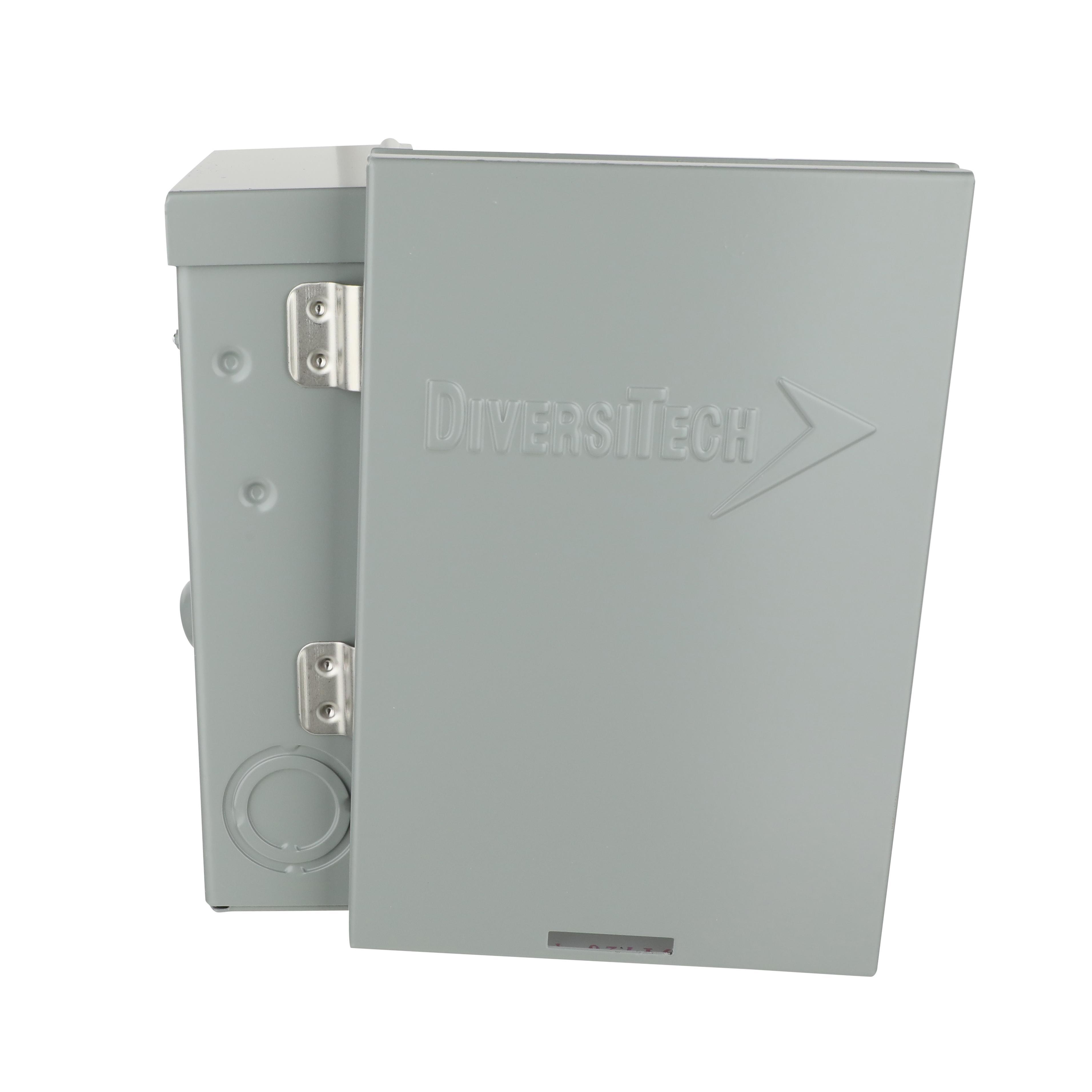

This DiversiTech® DDS-60U Non-Fusible Disconnect Switch, 60 Amps fused model designed with fuses in pull out handle for easy replacement. The line, load, and ground terminals are aligned for ease of wiring. This product has a reversible door. The side open door opens more than 180 degrees for maximum access and has a full dead front. The UL Listed number is IRF9, NEMA Type 3R and the US Patent is 6,630,637.
-
BrandDiversitech
-
Manufacturer Part NumberDDS-60U
-
CountryUSA
-
MaterialMetal
-
ColorGray
-
TypePull-Out Non-Fused
-
Voltage Rating240 V AC
-
Amperage Rating60 A
-
Horsepower10 hp
-
Enclosure TypeNEMA 3R
- It eliminates the pullout handle used in traditional A/C disconnects and easy to install

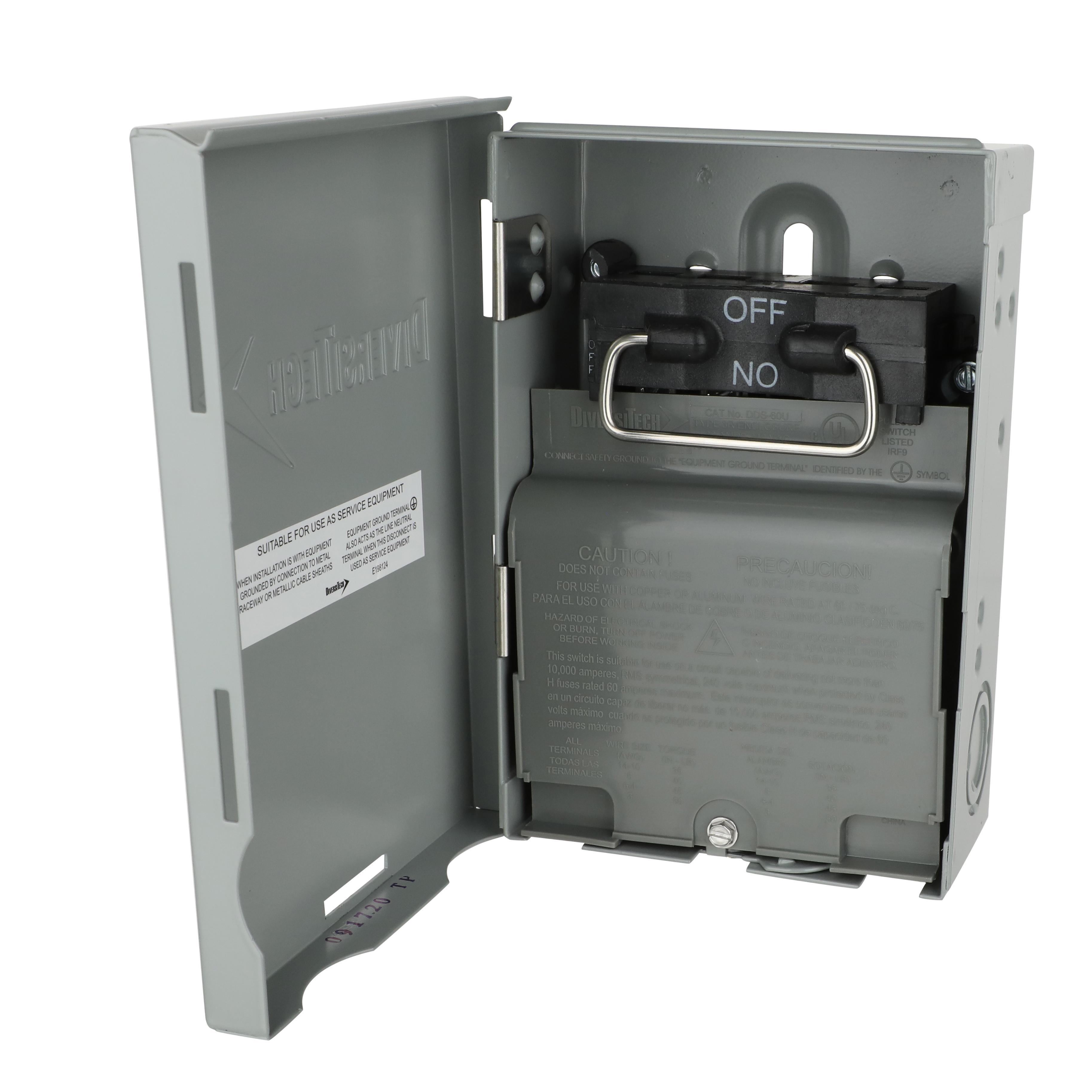

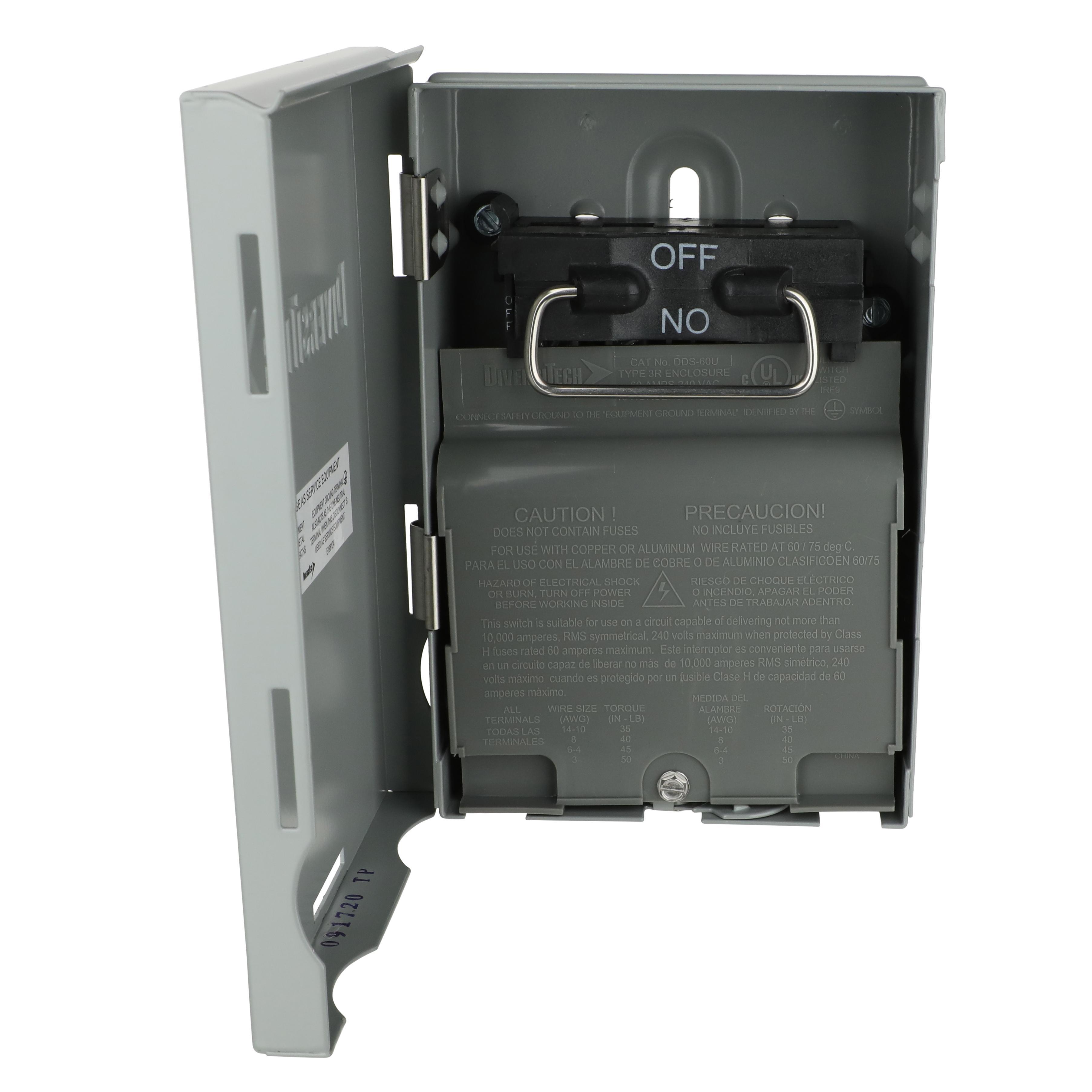

- Molded case swtich with color coded On-Off switch indicators
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | DIVDDS60U |
-
UNSPSC39122233
-
Package DescriptionEACH
-
Standards/ApprovalsUS Patent is 6,630,637|UL No. IRF9
-
Catalog
-
Specification Sheet
