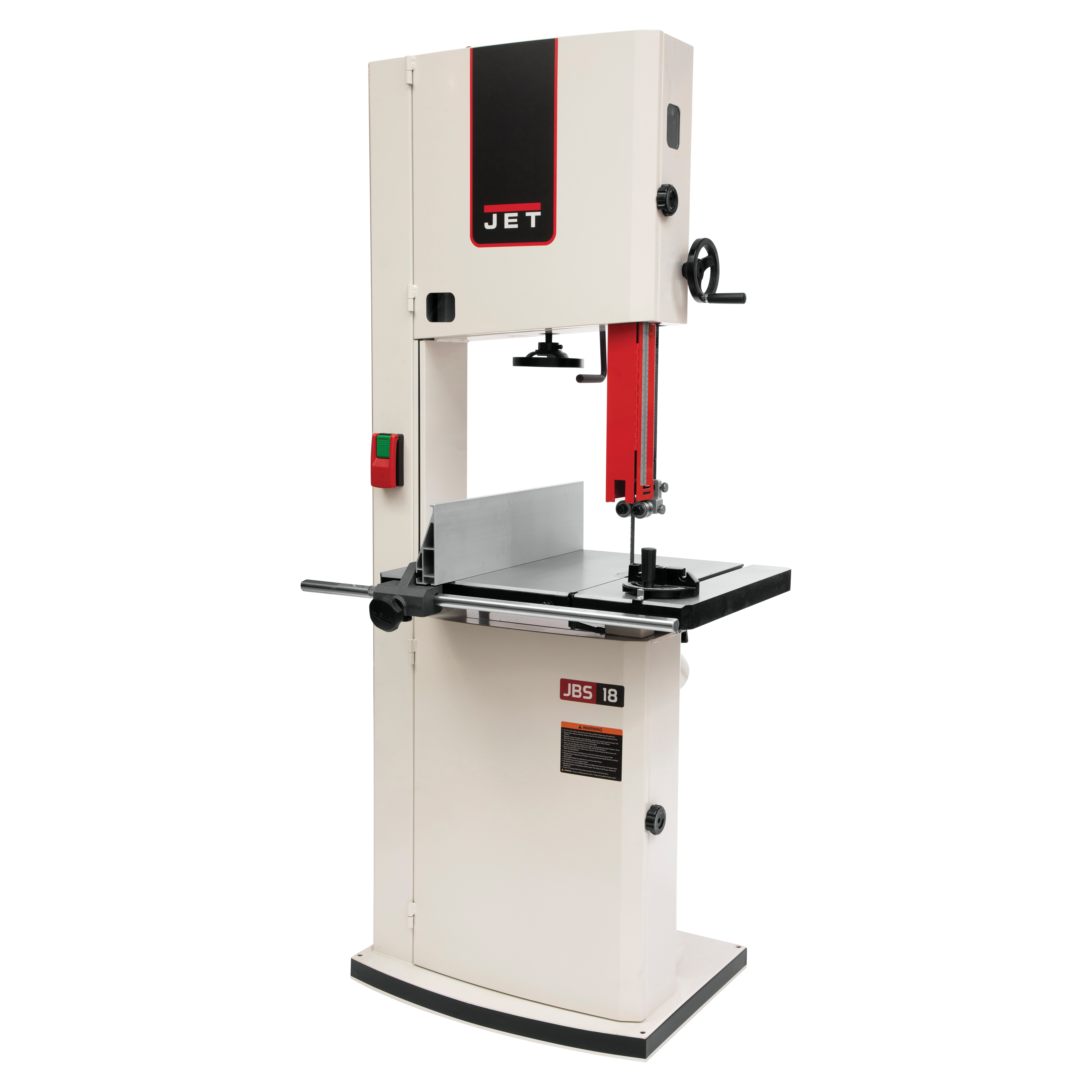

JET® JT9-714700 Band Saw, 1-3/4 hp, 115 V, 15/7.5 A, 1 Phase , 1720 rpm Speed
Designed to perform, the JET® 18 in Band Saw delivers more re-saw capacity, greater throat depth and the horsepower you need to tackle bigger boards, create smoother edges and master the intricate cuts. The heavy duty cast-iron fence system is built to give you the sturdiness and support you need for every project and features a micro-adjust dial for exact placement. The table is slotted for front blade removal and the guide post has a stress-free magnetic door on the front for efficient blade changes. Large, independently adjustable guides are tool-less to save you time on set up. The JET® 18 in steel frame Band Saw is engineered to build great projects through superior performance.
-
BrandJET®
-
UPC731325467482
-
Manufacturer Part NumberJT9-714700
-
CountryUSA
-
Voltage Rating115 V
-
Amperage Rating15/7.5 A
-
Horsepower1-3/4 hp
-
Dimensions36 in L x 34 in W x 80 in H
-
Speed1720 rpm
-
Blade Length150 in
-
Blade Width1/8 to 1-1/4 in
-
Phase1
- Blade tracking window provides clear view of blade during tracking
- Cast iron handwheels and ergonomic-designed knobs make adjustments smooth and easy
- Cast iron trunnion for maximum support and stability
- Conveniently located dual 4 in dust collection ports catch dust and chips at the source
- Easy-to-read blade tension scale can be viewed through upper door window
- Heavy duty tensioning with quick release and three settings, full tension, partial tension and full release
- Rigid, four sided guide post with rack and pinion adjustment for optimum blade support
- Round table insert features leveling screws for precise adjustment
- Single knob adjustment simplifies the blade tracking process
- Table tilts 5 deg left and 45 deg right to accommodate a wide variety of cuts
-
Alternative Part Number714700
-
UNSPSC27112709
-
Standards/ApprovalsPROP65: This product can expose you to chemicals including lead and cadmium which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.p65warnings.ca.gov.
-
Warranty5 Years
-
Instruction/Installation Manual
