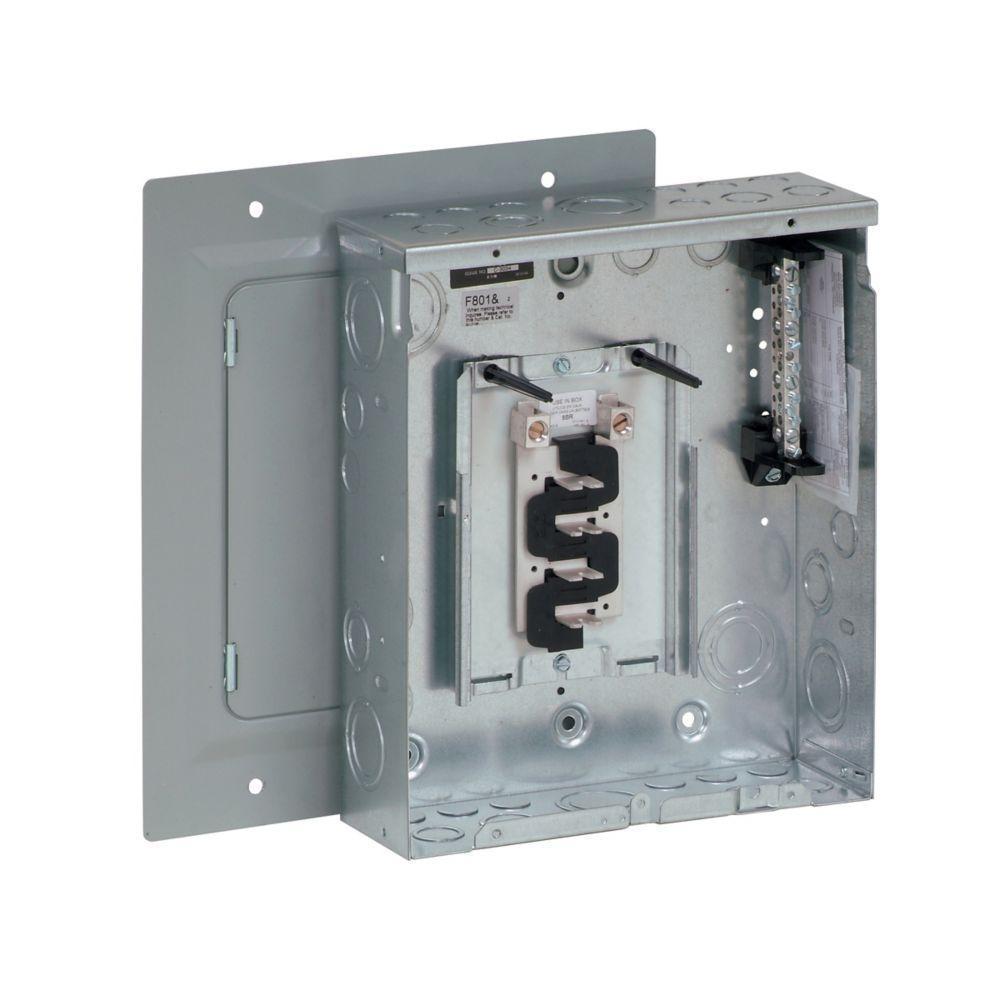

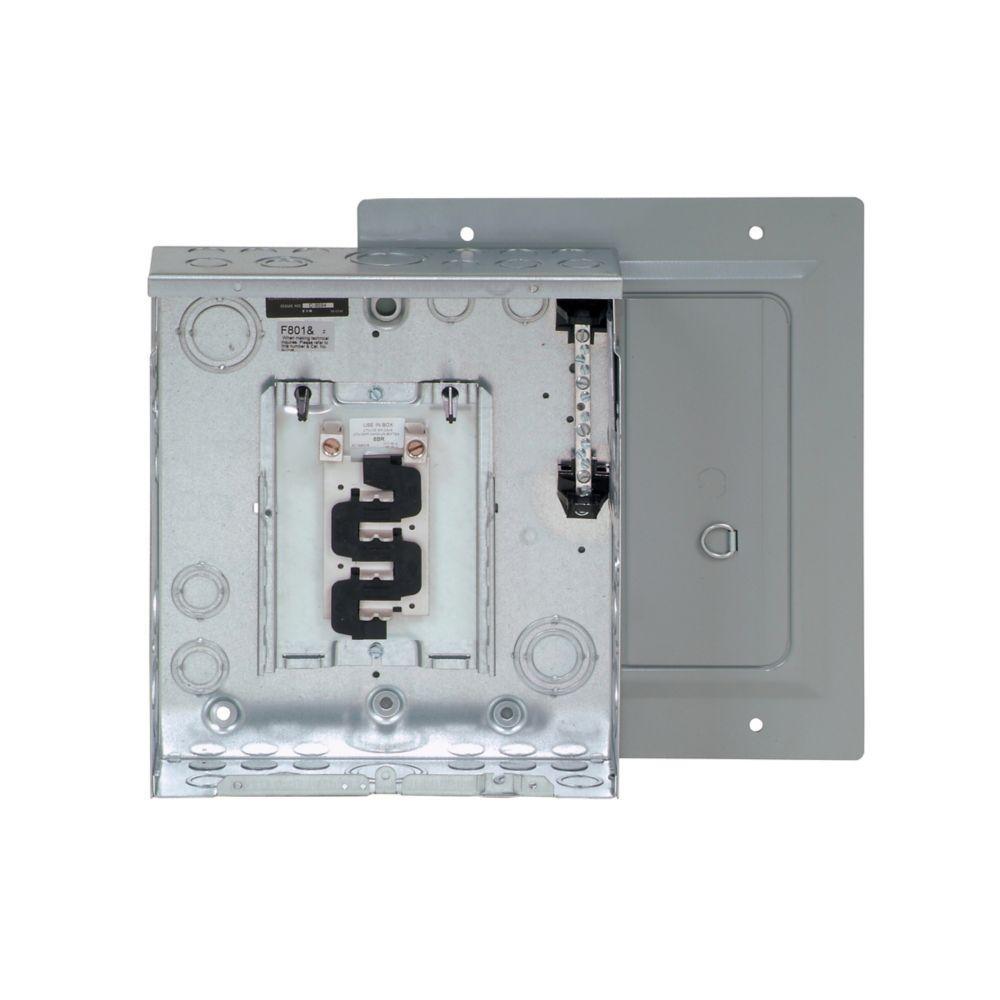

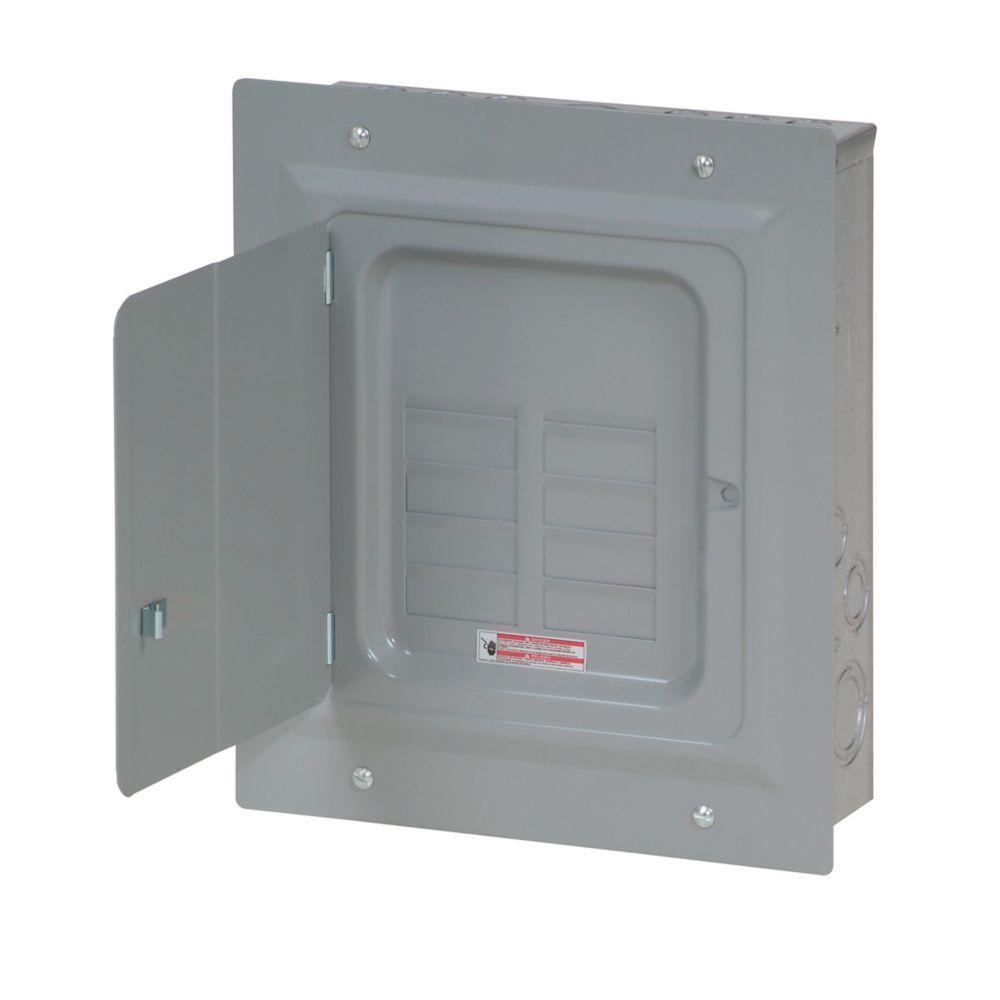

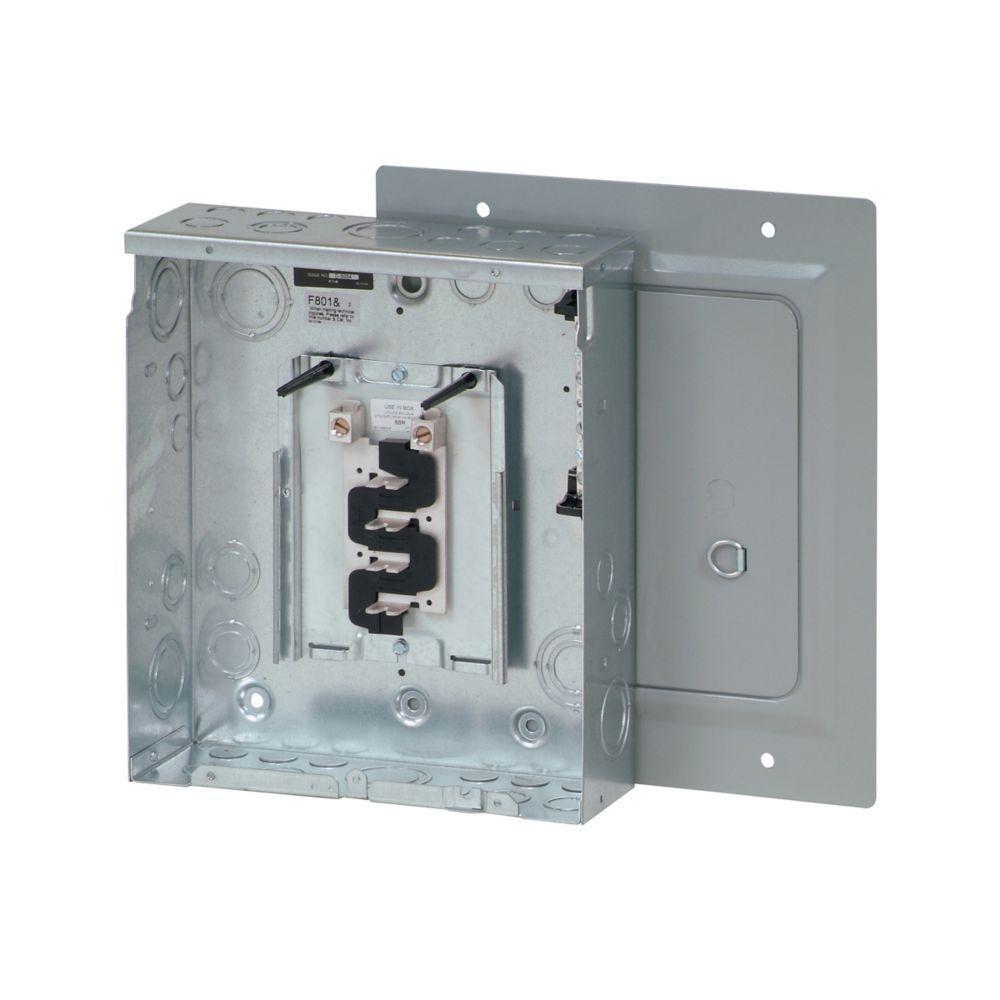

EATON BR816L125FDP 1-Phase Split Main Lug Loadcenter, 120/240 V AC, 125 A, 16 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001434
-
Manufacturer Part NumberBR816L125FDP
-
CountryUSA
-
Type1-Phase Split
-
Mounting TypeFlush
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits16
-
Wire Size14 to 1 AWG Cu/Al
-
Wiring Configuration3-Wire
-
Number of Poles16
-
Dimensions3.56 in L x 11 in W x 13 in H
-
Number of Spaces8
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 7
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
- 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
- BR load centers feature Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Dual grounds, current design
-
Alternative Part Number7431372
-
UNSPSC39121101
-
IDEA Index ID7431372
-
Package DescriptionEACH
-
Standards/ApprovalsUL 67,UL 50
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
