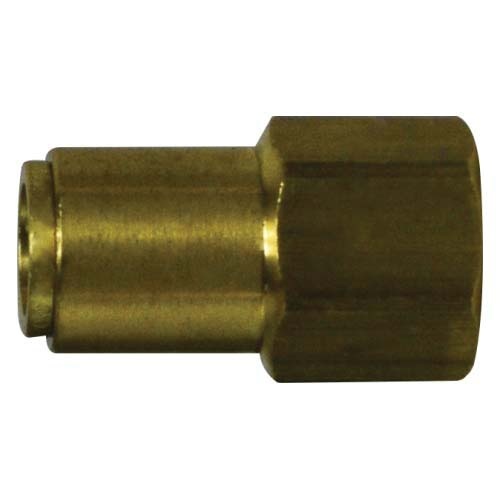

HCI Preferred Supplier 660402 Tube To Pipe Connector, 1/4 in Nominal, Push-In x FNPTF End Style, Brass
HCI Preferred Supplier 660402 Tube To Pipe Connector, 1/4 in Nominal, Push-In x FNPTF End Style, Brass
-
BrandGeneric
-
Manufacturer Part Number660402
-
CountryUSA
-
Temperature Rating-40 to 200 deg F
-
MaterialBrass
-
Fitting/Connector TypeAdapter
-
Pressure Rating150 psi
-
Nominal Size1/4 in
-
Length1.31 in
-
End StylePush-In x FNPTF
- Fast assembly - No tools required, simply push tubing in, saves up to 75% of assembly time compared to standard air compression fittings, no loose parts to handle
- Fast disconnect - Hold the collet collar with two fingers and pull out tube
- Reusable - Can be connected and disconnected several times
- Reliable sealing - using recommended tubing, full sealing is guaranteed
- Versatility - Buna-N O'ring standard, viton and others avail, secure tube retention, pulling on tubing only serves to tighten the connection
- Pre-Applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
- Full flow design, provides more flow area than conventional fittings with internal tube supports even in the swivels
- DOT fittings are constructed with an all brass captive eyelet which allows for maximum flow
- The brass captive eyelet with extended length is floating and has a machined top end radius for easy installation of tubing
- Hex Size: 0.56 in
-
UNSPSC40183110
-
Package Description1/PK
-
