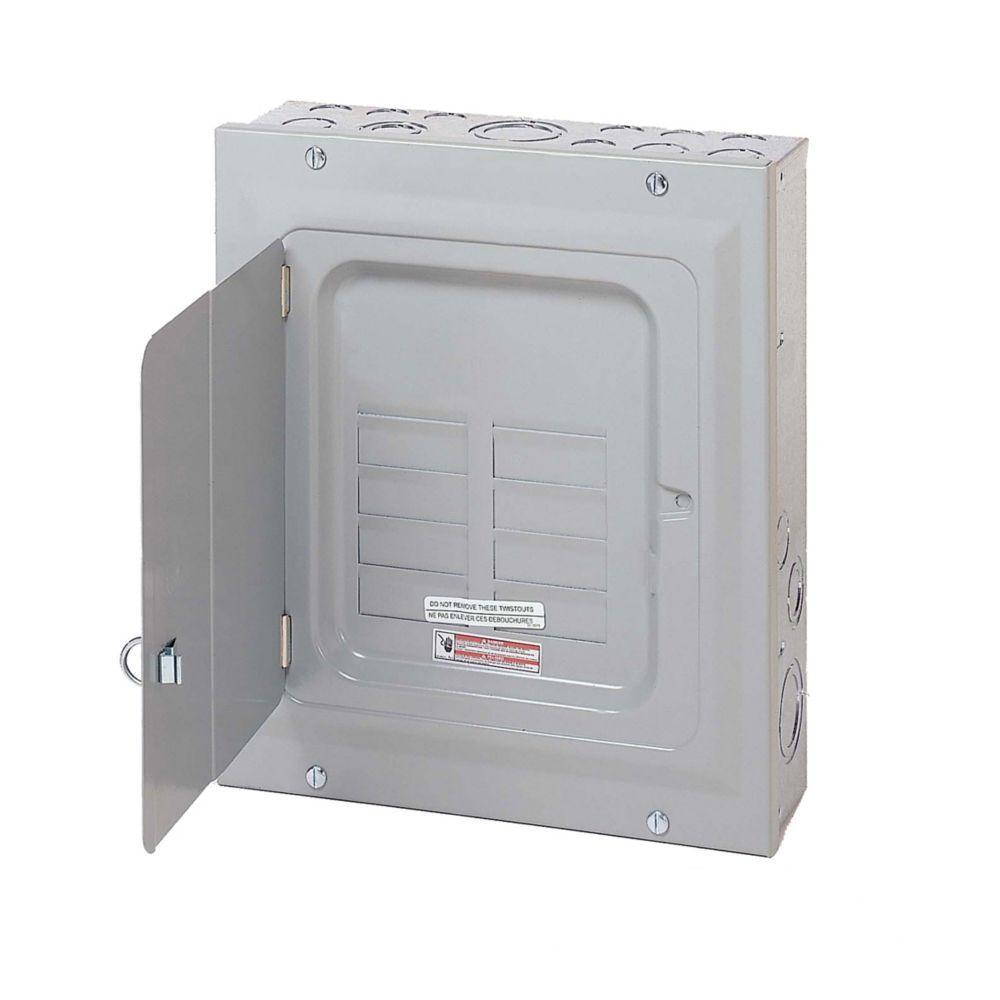

EATON BR612L125SDP 1-Phase Split Main Lug Loadcenter, 120/240 V AC, 125 A, 12 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001304
-
Manufacturer Part NumberBR612L125SDP
-
CountryUSA
-
Type1-Phase Split
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits12
-
Wire Size14 to 1 AWG Cu/Al
-
Wiring Configuration3-Wire
-
Number of Poles12
-
Dimensions3.56 in L x 11 in W x 13 in H
-
Number of Spaces6
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 7
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
- 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
- BR load centers feature Robertson slotted square combo screw heads, which means only one screwdriver is need for installation
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main lugs
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Dual grounds, current design
| Cross-Reference Number |
|---|
| 519120 |
-
Alternative Part Number7431338
-
UNSPSC39121101
-
IDEA Index ID7431338
-
Package DescriptionEACH
-
Standards/ApprovalsUL 67,UL 50
-
Warranty10 years
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
