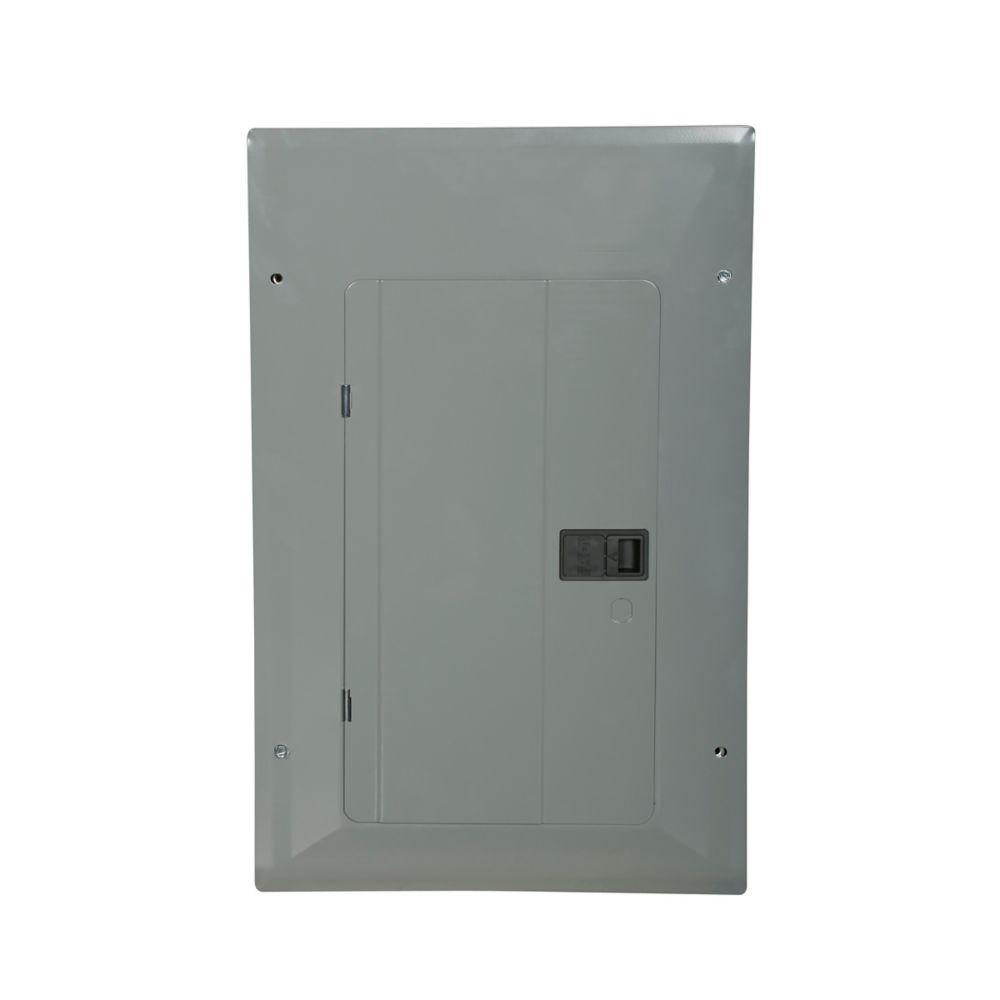

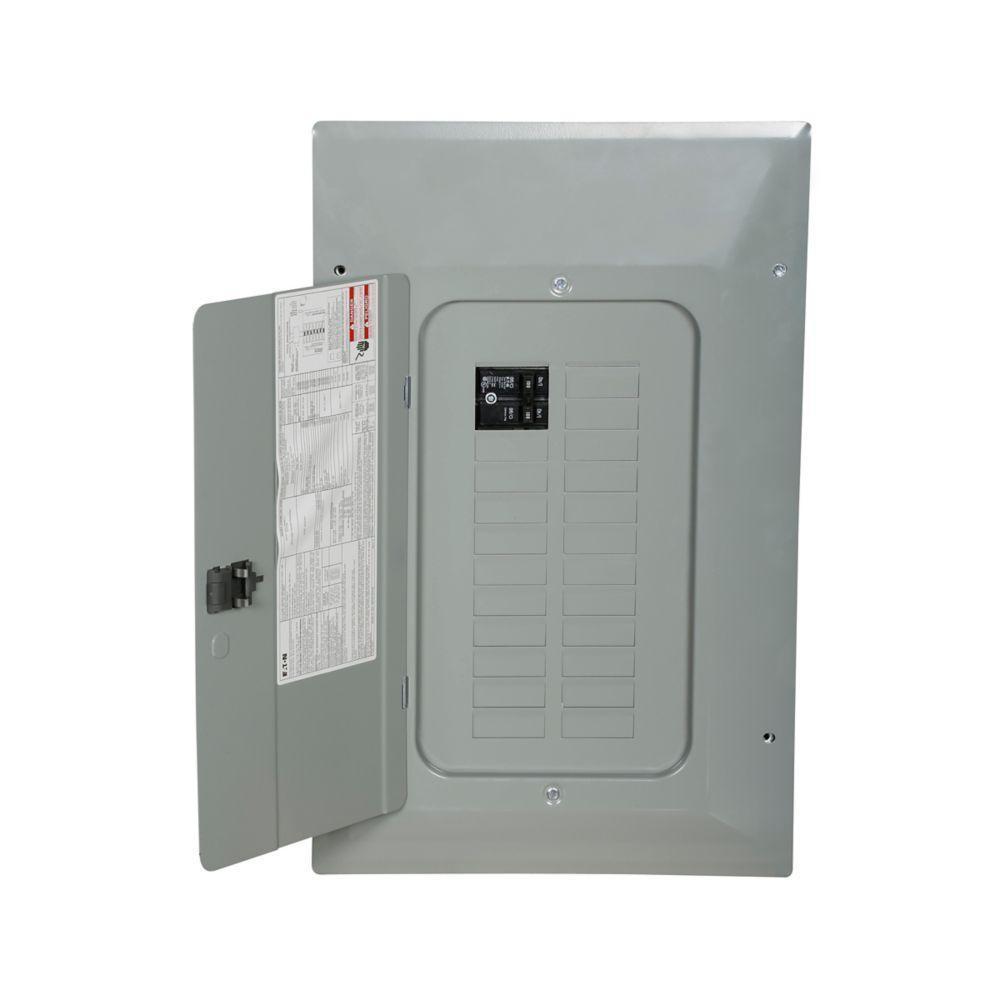

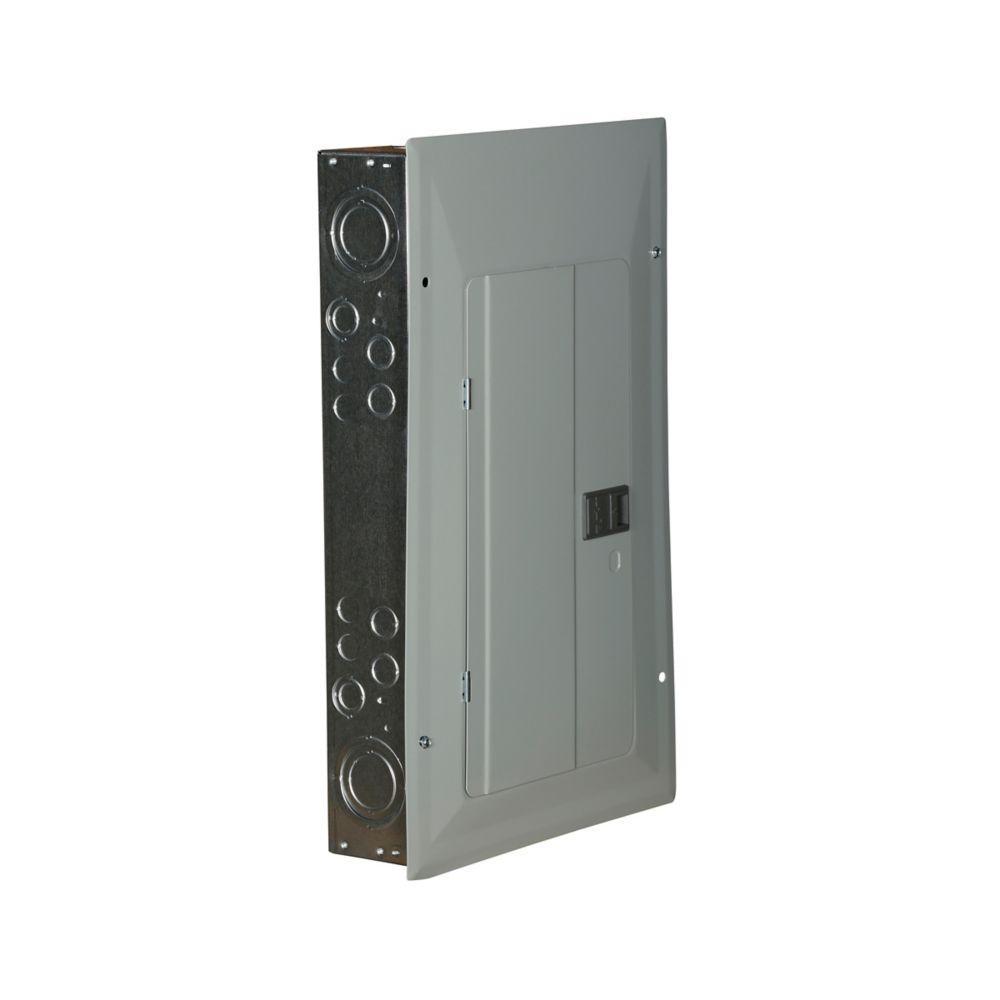

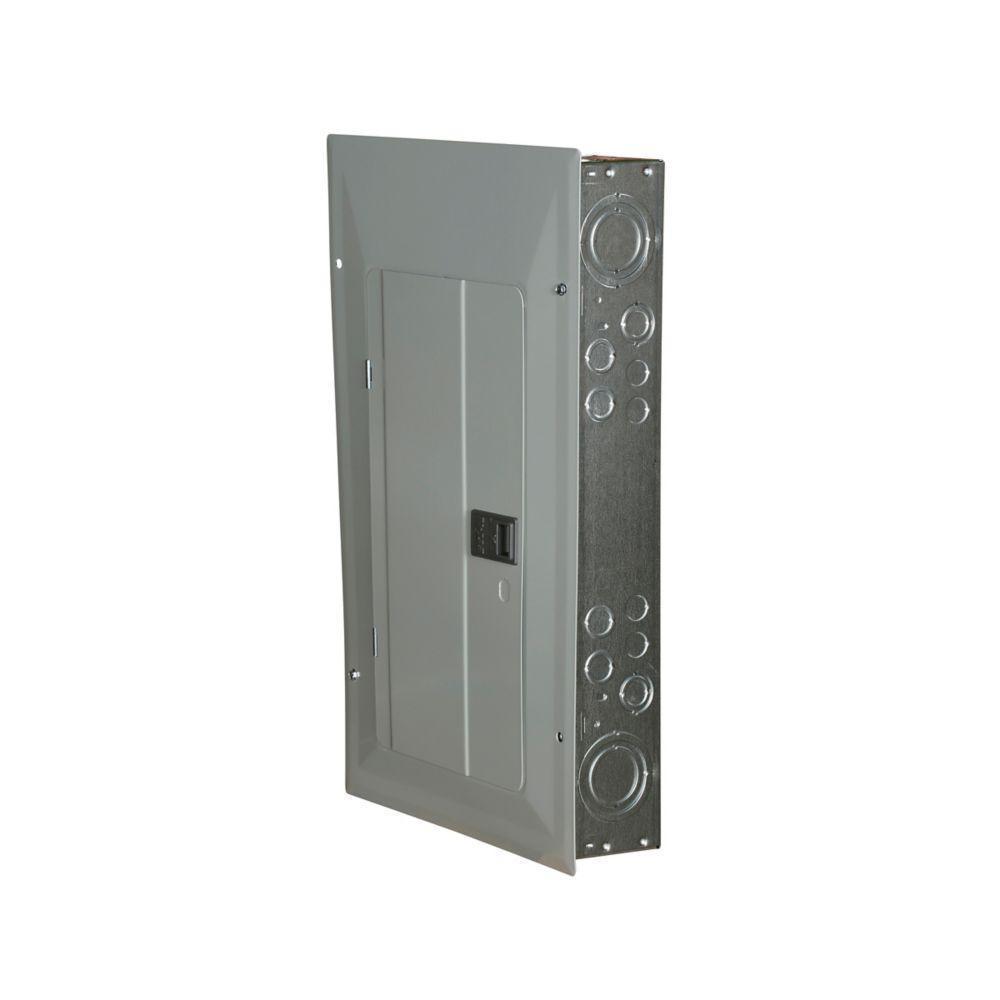

EATON BR2020B100V 1-Phase Main Circuit Breaker Loadcenter, 120/240 V AC, 100 A, 20 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676444255
-
Manufacturer Part NumberBR2020B100V
-
CountryUSA
-
Type1-Phase
-
Mounting TypeCombination
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
Number of Circuits20
-
Wire Size6 to 1/0 AWG Al/Cu
-
Wiring Configuration3-Wire
-
Housing MaterialMetal
-
Number of Poles20
-
Dimensions5.19 in L x 14.31 in W x 18.75 in H
-
Number of Spaces20
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA C1
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Value pack, no feed-thru lug
- 6 to 1/0 AWG Al/Cu at 60 or 75 deg C wire
- Used with type BR 1 in breakers
- Aluminum bus material
-
Alternative Part Number9136273
-
UNSPSC39121101
-
IDEA Index ID9136273
-
Includes(5) BR120 Circuit Breakers, (1) BR230 Circuit Breaker and (1) Cover
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50,UL 67
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
