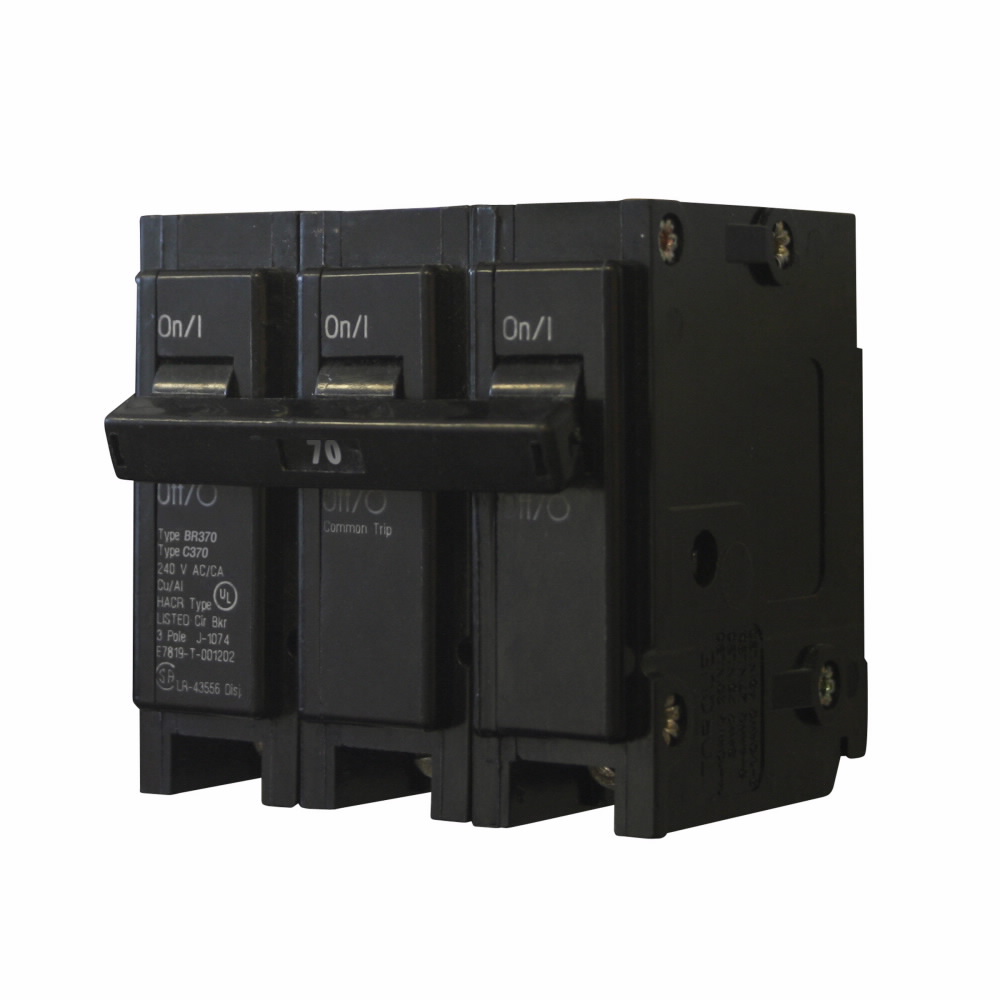

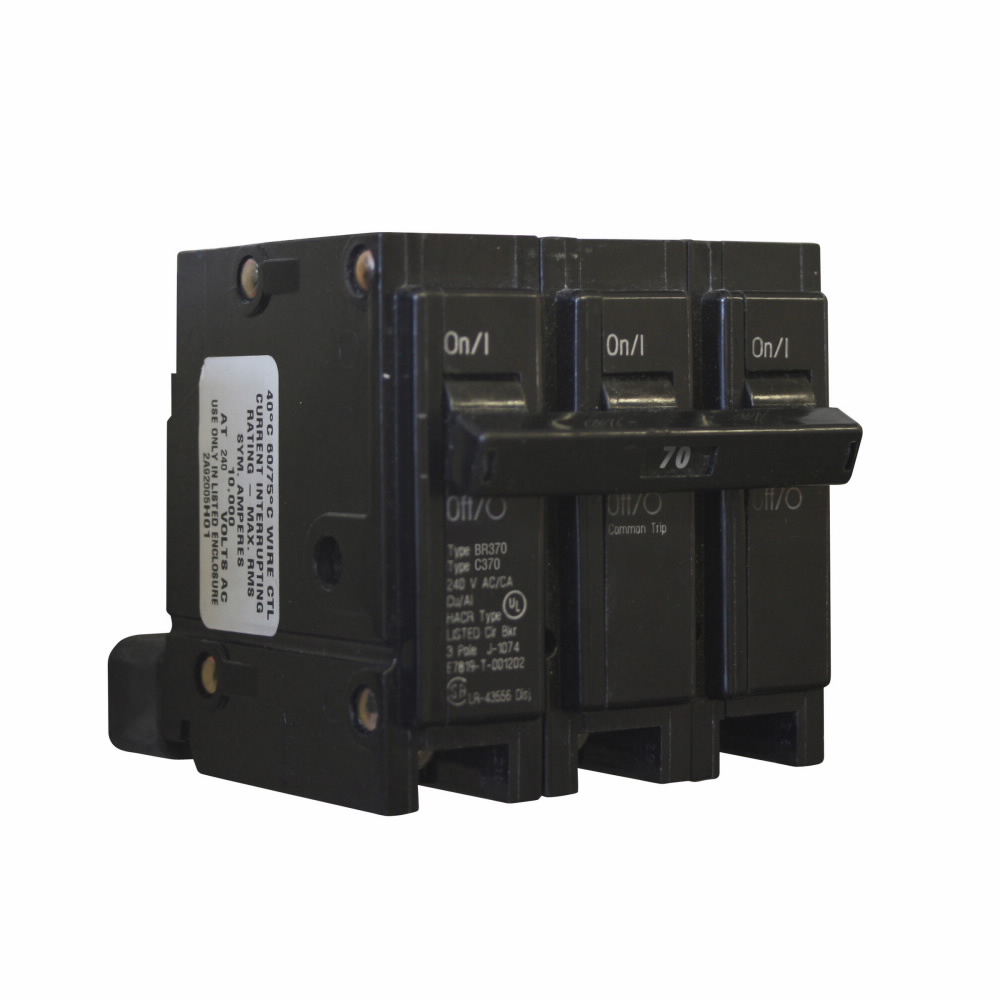

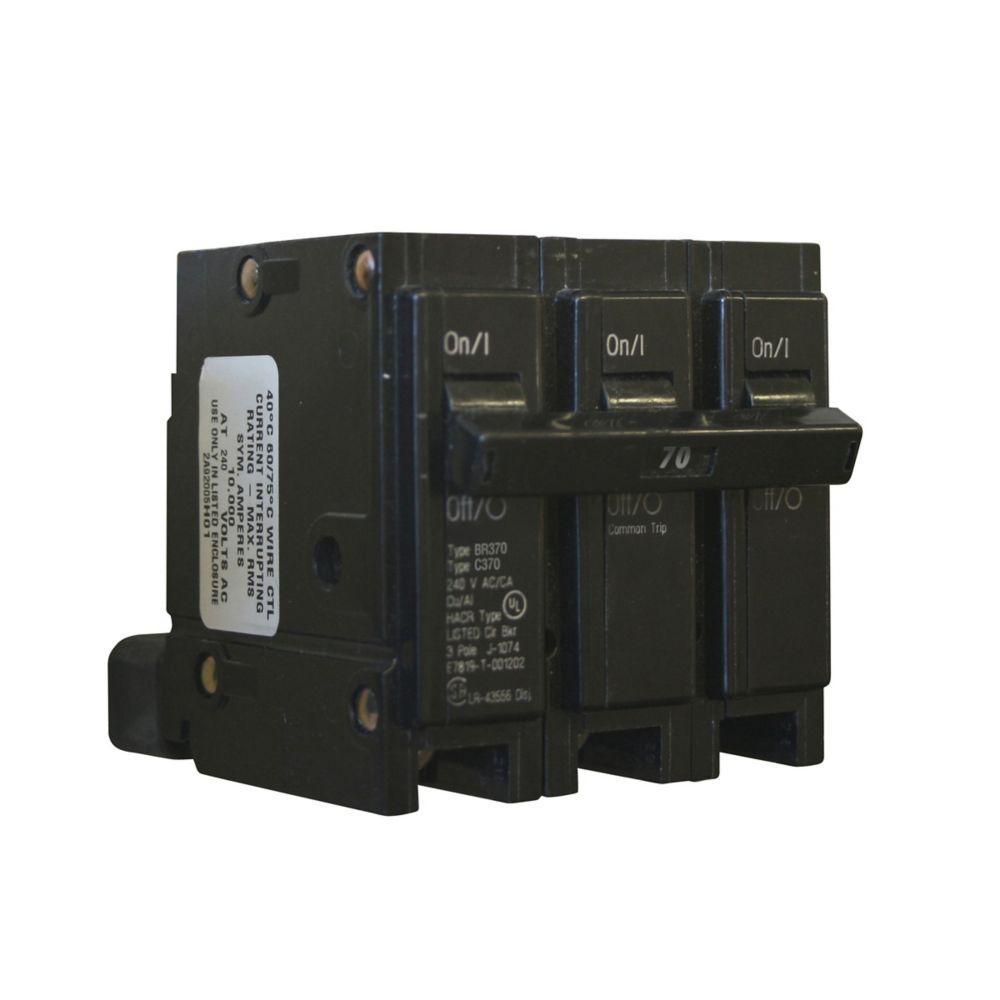

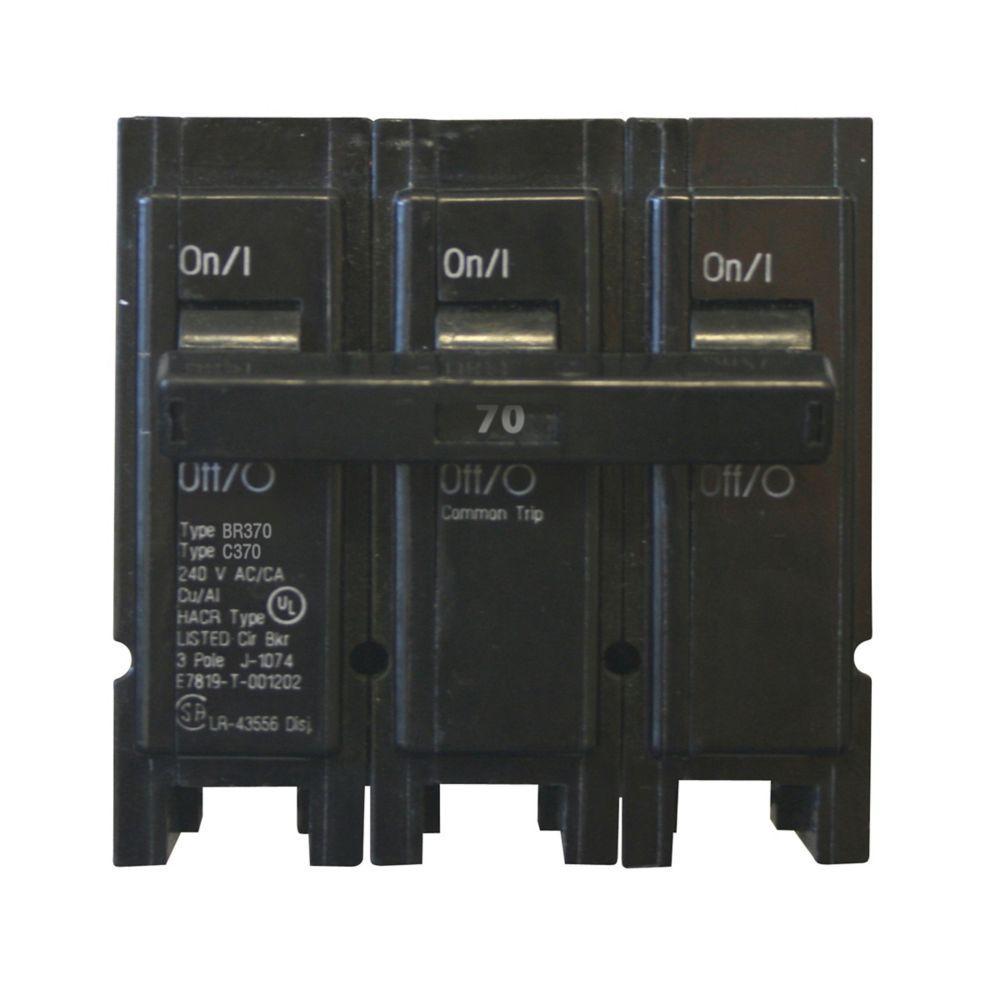

EATON BR370 Type BR Circuit Breaker, 240 V AC, 70 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676368001
-
Manufacturer Part NumberBR370
-
CountryUSA
-
Temperature Rating40 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Actuator TypeHandle
-
Voltage Rating240 V AC
-
Amperage Rating70 A
-
Wire Size4 to 1/0 AWG
-
Number of Poles3
-
Dimensions3-1/4 in L x 3 in W x 4 in H
-
Interrupt Rating10 kA
-
Phase3
- All BR circuit breakers have rejection tab feature
- Units feature a quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip free handle design
- Standard interrupting capacity
-
Alternative Part Number7434776
-
UNSPSC39121601
-
IDEA Index ID7434776
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
